2.2 TUBE CONTENT
1. one telescopic section (1M40)
2. external twin-groove sections
3. connectors
For OEM furling systems (delivered originally to the shipyard) the top section may be shorter
than 2 meters. For those systems, the top section is cut at a specific length.
Example: if you order an FD190 12M40, according to the chart below you will receive five 2-
meter sections, one half-length section, the telescopic section and five connectors.
Chart No.3
Forestay
max. length
No. of 2m
sections
No. of 1m
sections
No. of
connectors
Telescopic
section
7M30 3 0 2 1
8M40 3 1 3 1
10M40 4 1 4 1
12M40 5 1 5 1
14M50 6 1 6 1
16M50 7 1 7 1
18M50 8 1 8 1
20M50 9 1 9 1
22M50 10 1 10 1

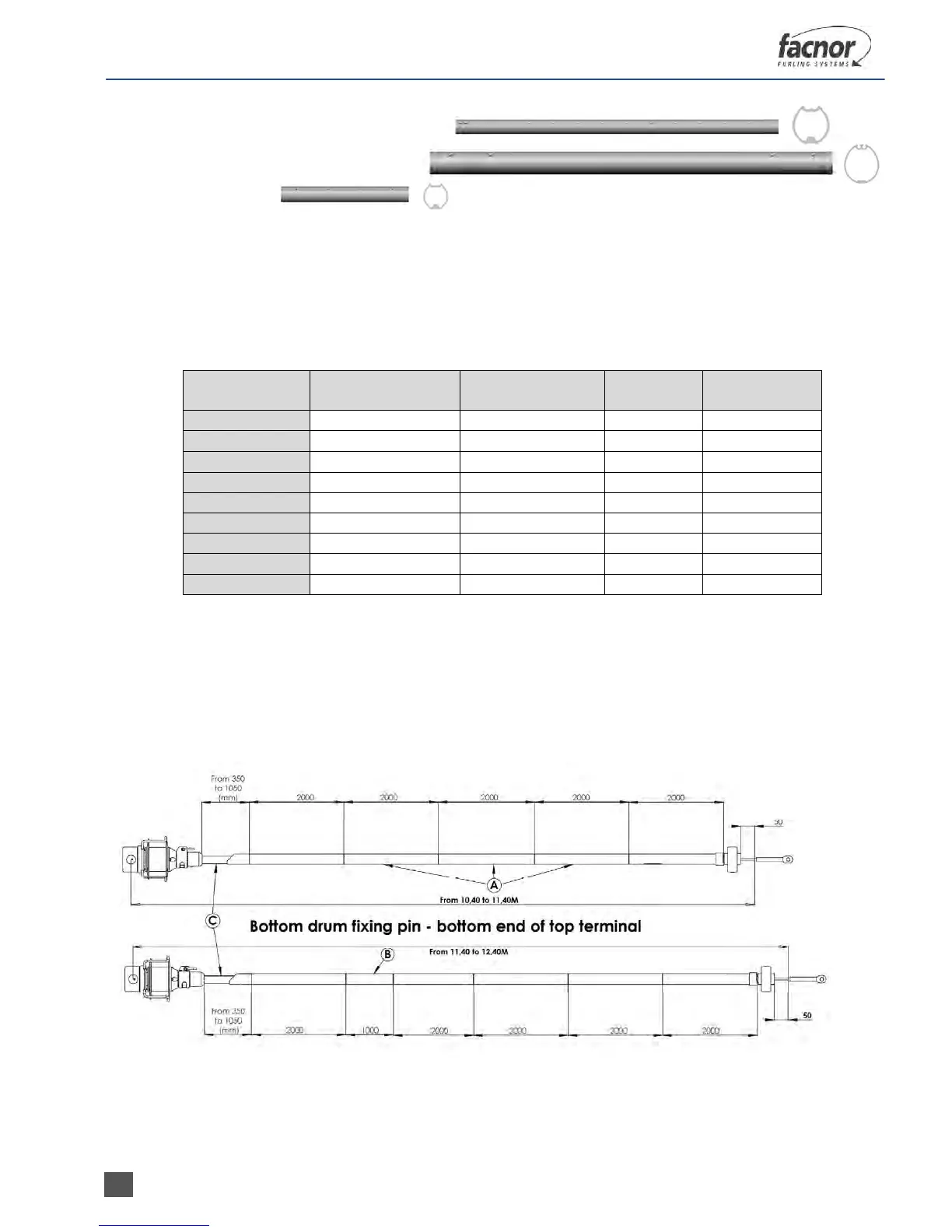

2.3 DETERMINING WHICH SECTION LENGTH SHOULD BE USED
The example given is of a LS165 12M40, standard (i.e. not delivered to a shipyard), for a
forestay measuring between 10.4 and 12.4 metres. According to the table above, you will
receive: 5 two-metre external sections and 1 one-metre external section.
EXAMPLE No1 : your forestay measures between 10.40 and 11.40 metres (fig. A), you
do not need the 1-metre section.
EXAMPLE No2: your forestay measures between 11.40 and 12.40 metres, you do need
the 1-metre section (fig. B); the latter fits above the last section.
In both examples, the exact length will be reached with the telescopic section (fig. C).
