3.3- PREPARING FOR ASSEMBLY:
Protecting the components
During assembly, we recommend you protect both the sections and the other items of the
furling system, as rough ground may damage them.
Tools needed for assembly :
- a manual or electric screwdriver
- a hammer
- an adjustable spanner for the lower drum fitting pin
Different allen keys are supplied with the kit, as well as the Pozi drive/No2 bit for the section
screws.
Preparing foil sections

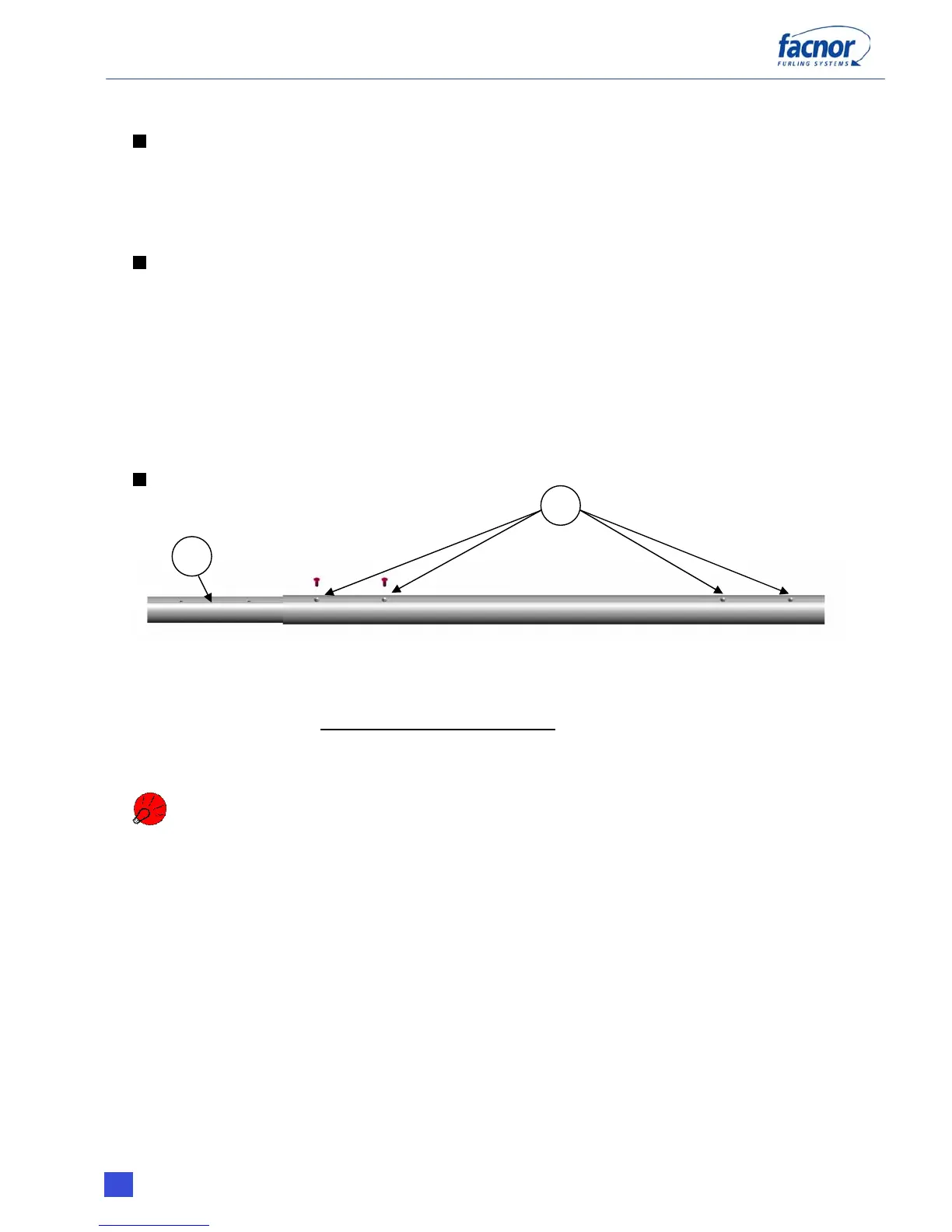

We recommend you prepare the sections before assembly. This involves fixing a connector
(fig. D) to all of the twin-groove sections apart from one. The latter will be the top section. All
of the external sections, including the top section*, have symmetrical holes at each end
(fig. E).
BEWARE: DO NOT TIGHTEN SCREWS AT THIS STAGE.
* For furling systems installed for the first time, delivered to the shipyard, the top
section may be shorter than 2 metres. For these reefing systems, the top section is cut to length.
Therefore, there is no hole on the upper end of the top section, on which the top cap will be
fixed.
