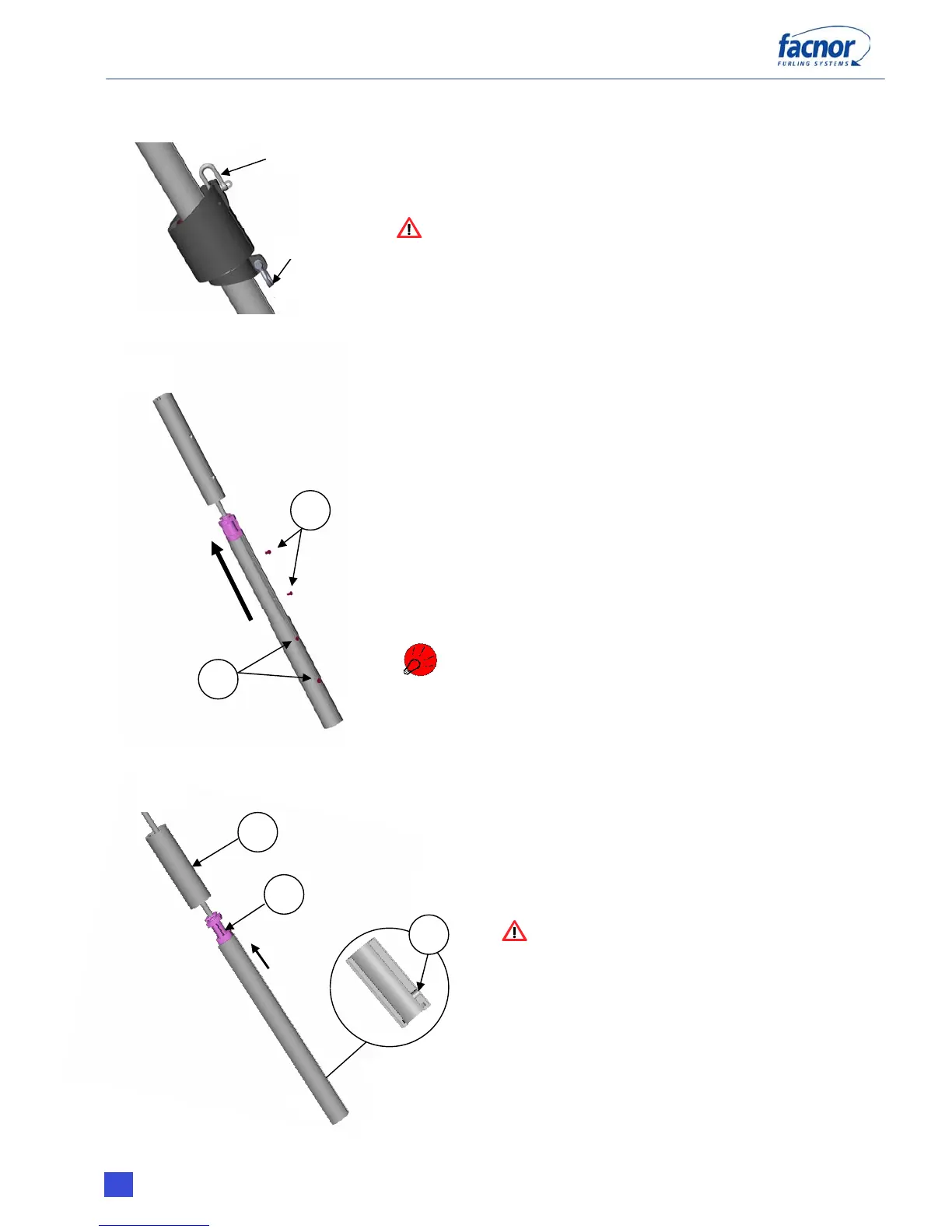

4.3- FITTING THE HALYARD SWIVEL
Ensure you fit the halyard swivel the right way up. Fix the
two shackles. In order to raise the sections as high as
possible, we recommend that you fit the halyard swivel
and raise everything by way of a halyard.
IMPORTANT : Be sure to attach a down haul line
to the halyard swivel so as to be able to recover it
later.
4.4- ASSEMBLING FOIL SECTIONS
The top section is in place. Assemble a bushing around the
forestay. Slip the next section, already assembled (see
preparing the sections p.4), with the connector pointing
towards the top of the forestay. With the help of the
connector, push the bushing all the way up into the top
section until the connector holes coincide with those of the
top section.
Fit both screws (fig. G). then, slowly and firmly tighten the
4 screws (fig. G+H).
Repeat the operation until you reach the last section. DO
NOT FIX ANYTHING TO THE LAST SECTION.
If your forestay requires the use of a 1-meter
section, fit it above the lowest 2-meter section.
4.5- FITTING THE TELESCOPIC SECTION
Once the sections have been hoisted as high as possible,
assemble a bushing around the forestay.
Fit the telescopic section and push it up. That way, the
bushing (fig. J) goes into the lowest foil section (Rep. I).
BEWARE : FIT THE TELESCOPIC
SECTION TO THE FORESTAY AS INDICATED
(fig. K). THE SIDE WITH ONLY ONE HOLE
MUST BE POINTING DOWN.
24
H
G
I
