systems - Installation manual

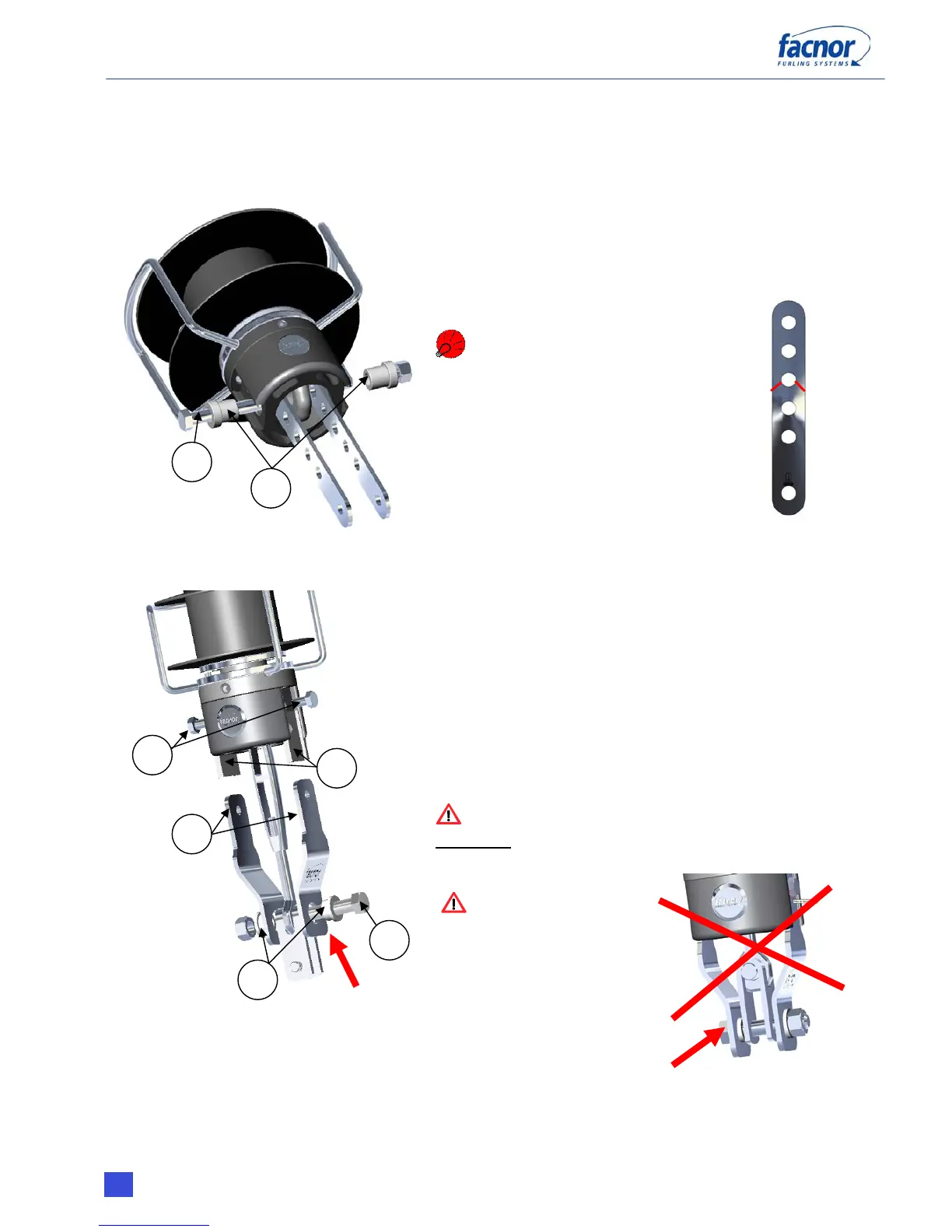

4.9- FIXING THE BOTTOM OF THE DRUM
There are two kinds of assembly for the lower fitting of the drum:
4.9.1- STANDARD ASSEMBLY:
FORESTAY BOTTOM TERMINAL / EYE+LINK PLATES
Fit the two drilled plates to the lower part of the
drum.
Bolt together with the pin (fig. Q), after inserting the
nylon bushes (fig. R).
IF THE PLATES ARE TOO LONG,
CUT THEM AS SHOWN IN THE
DIAGRAM.
If possible, keep a hole available
above the one you intend to use in
case of further adjustment.
4.9.2- ASSEMBLY WITH TURNBUCKLE KIT :
BOTTOM FORESTAY TERMINAL / TURNBUCKLE+ ARTICULATED JAW OR EYE + JAW
Slip the two flexible plastic strips (fig. S) into the slots
situated on either side of the drum’s base.
Fix the top of the stainless steel link plates (fig. T),
found in the «Facnor turnbuckle kit», to the drum
with the screws provided (fig. U). Lightly grease both
threads before fixing.
Then, fix the bottom of the plates to the turnbuckle
with the pin (fig. V), being careful to correctly position
the nylon bushes (fig. W).
BEWARE: THE FITTING PIN (FIG. V) MUST
ALWAYS
BE FIXED TO THE UPPER SECTION OF THE
JAW.
NEVER FIX THE
BOTTOM OF THE PLATES
IN THE LOWER SECTION
OF THE JAW
WITH SUCH AN INSTALLATION
THE FORESTAU IS NOT
CORRECTLY ARTICULATED.
IMPORTANT : In order to reach the optimum articulation of the forestay fitted with a furling
system, it is absolutely necessary to have a toggle at the top end of the forestay. Furthermore,
concerning the bottom terminal, it is recommended to have also a toggle.
26
