Apply Loctite 243 on bolt threads. Thread the bolt in but do
not tighten, this will allow the insert to align when installing
the axle
Remove the thru-axle and remove the hub. Install the rear
wheel and tighten the thru-axle (with the nylon washer) to
12Nm.
Install a rear hub in the dropout with the free hub on
non-drive side. This will allow better access for the
next step. Install the thru-axle with the nylon washer
and tig hten to 12Nm.
After ensuring the dropout insert is correctly
aligned, tighten the dropout bolt to 1 Nm.

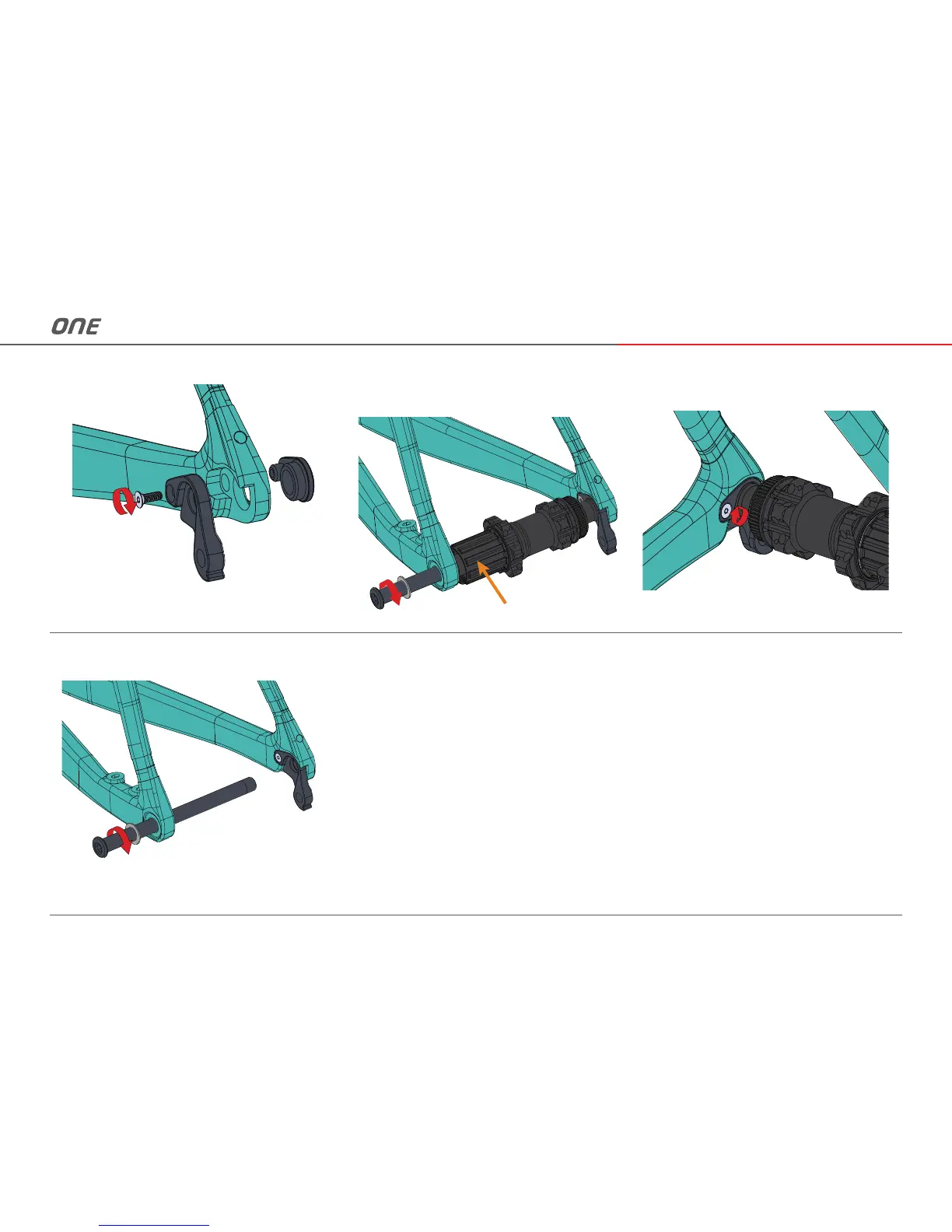

6-1
6-4
6-2 6-3Thru-Axle Installation
freehub on
non-drive side !
