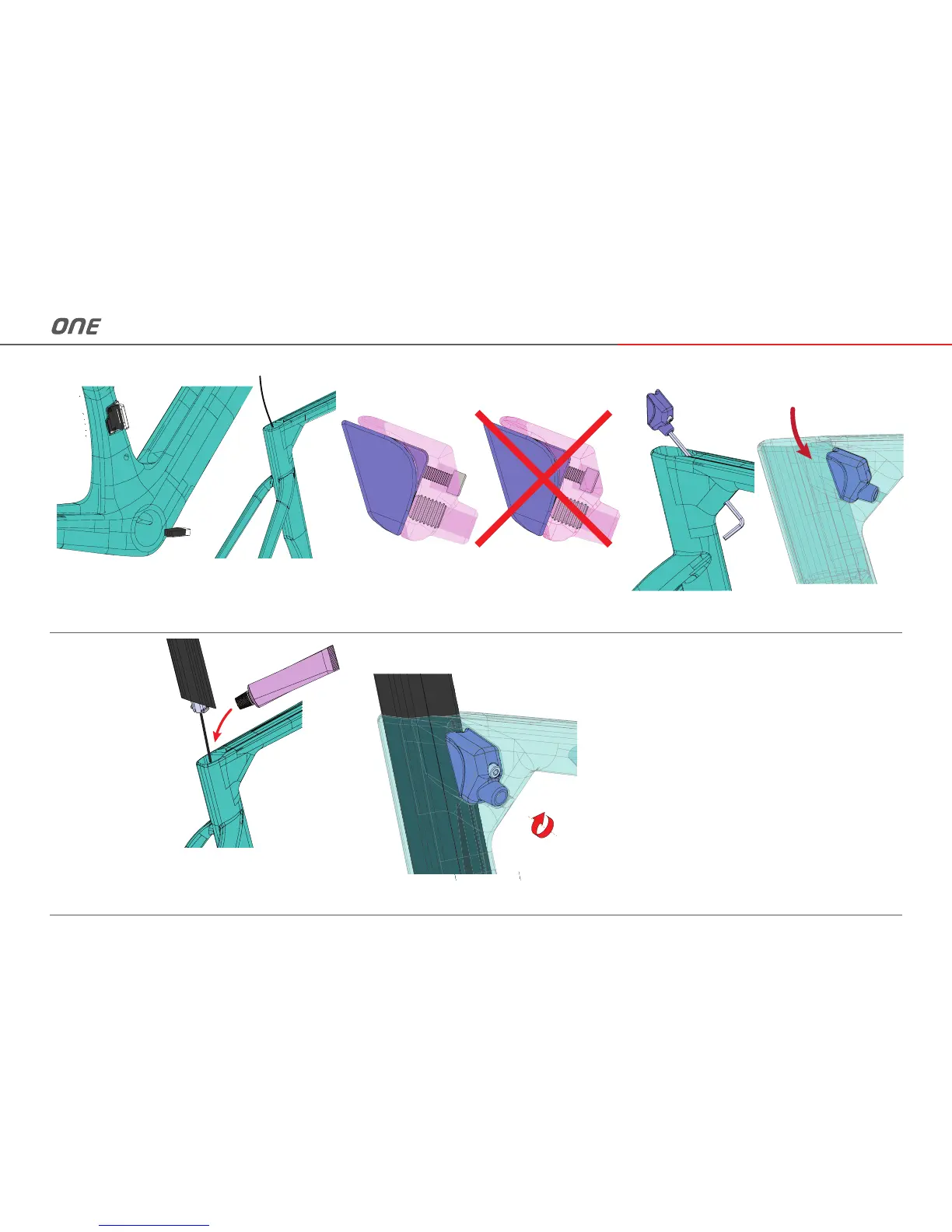

Seatpost Installation
Attach Di2 cable to Junction B and route though seat tube.
Slide 4 mm hex wrench through the hole under the top tube
and use to guide the seat post wedge into position
Assembly Manual 02
2-1 2-2 2-3
2-4 2-5
Confirm seat post wedge is assembled as pictured.
Apply carbon assembly
compound to the inside of
the seat tube. Connect the
Di2 cable to the battery.
Insert seat post into the
frame to the desired height.
Note: Your Factor frame set requires a minimum of 90 mm of
seat post insertion. The minimum insertion is clearly marked
on the seat post. Failure to achieve the minimum insertion
could cause damage to the seat post or frame resulting in
serious injury or death.
Secure the seat post by tightening the M8 grub
screw to 6 Nm
