FAFCO Sunsaver - Bank and Plumbing Mounting

®
34
Bank and Plumbing Movement
APPENDIX C — Reference Tables & Figures

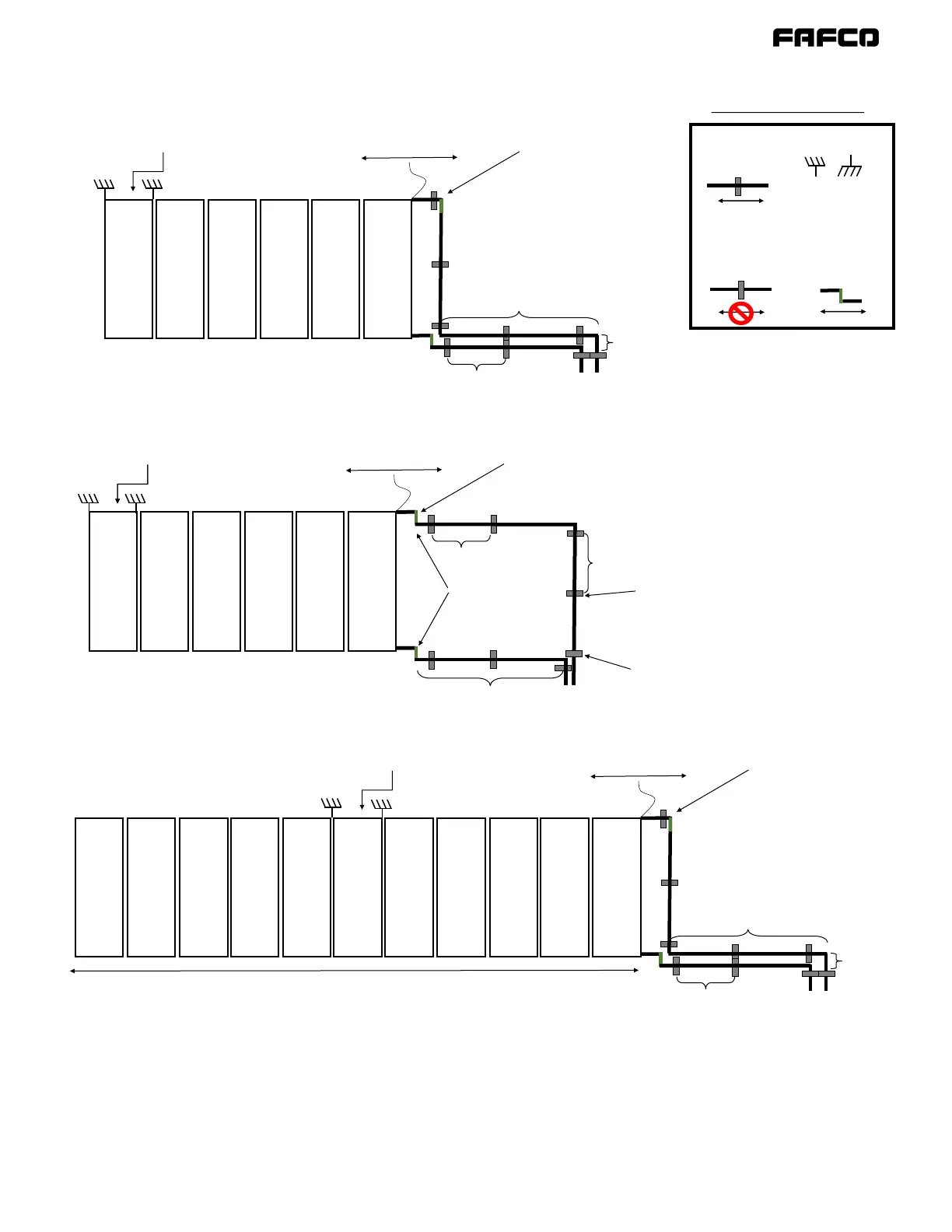

Figure 22 | Bank and Plumbing Mounting
There are multiple ways to accommodate for thermal expansion and contraction in a bank. The recommended way to mount a bank of panels is to fix-
mount the top header of the centermost panel in a bank though alternate locations are permissible. When mounting a bank, prime consideration must
be given to allow for movement in the plumbing as well, especially if the fix-mounted panel is away from the plumbing side of the bank as depicted in
images A, B and C. Notice the use of a Plumbing Expansion Hose in these figures, the Offset Method, and the difference between Fixed Supports and Guide
Supports. Bank expansion can be calculated and used to determine the total plumbing movement needed. See Table 6 in Appendix C for details.
*It is recommended for the Fix-Mounted Collector to be at a the centermost point in a bank as seen in image C of Figure 22 when possible.
DIAGRAM LEGEND:
Guide
Support
Fixed
Support
Plumbing
Expansion
Joint
Fixed Points
~4ft
Fix-Mounted Collector*
Bank Moves up to 5X
(±1/4”) = 2.5”
Collector 0
Collector 1 Collector 2
Collector 3 Collector 4 Collector 5
Plumbing
Expansion
Joint
L/4 = 7” min
~10ft
A.
Fix-Mounted Collector
Bank Moves up to 5X
(±1/4”) = 2.5”
Collector 0 Collector 1 Collector 2 Collector 3 Collector 4 Collector 5
Plumbing
Expansion
Joint
L/4 =
7” min
~10ft
~4ft
Collector 5 Collector 4 Collector 3 Collector 2 Collector 1
Bank Moves up to 10X (±1/4”) = 5”
C.
B.
Fix-Mounted Collector*
Bank Moves up to 5X
(±1/4”) = 2.5”
Collector 0
Collector 1 Collector 2
Collector 3 Collector 4 Collector 5
Plumbing
Expansion
Joint
Fixed
Support
Collector 0
Collector 1 Collector 2
Collector 3 Collector 4 Collector 5
~4ft
~4ft
~10ft
~16in
Hose
Guide
Support
