FAFCO Sunsaver - System Overview

®
9
Legend for Figure 2
Standard Equipment
Pool Pump
Filter
Check Valve
Diverter Valve
Isolation Valve
Isolation/Check Valve
Solar Drain Valves (2)
Vacuum Relief Valve
5” Hose Connection
3.5” Couplers
SunSaver
®
Collectors
End Cap
1
2
3
4
5
6
7
8
9
10
11
12
Automation Equipment
Automation Controller
Pool Temperature Sensor
Solar Temperature Sensor
Actuator for Diverter Valve
Auxiliary Equipment
13
14
15
16
17
Optional Pool Equipment (Aux)
Back Up Heater
Not Shown:
Chlorinator
Additional Pumps
A
Figure 3
Diverter Valve
Schematic
1
2
3
5
6
7
9
8
11
12
13
15
14
4 & 16
17
10
Either Tee Upward or Opposing
Corner Acceptable
Manual Isolaon Valve or
Check Valve Permied
Oponal

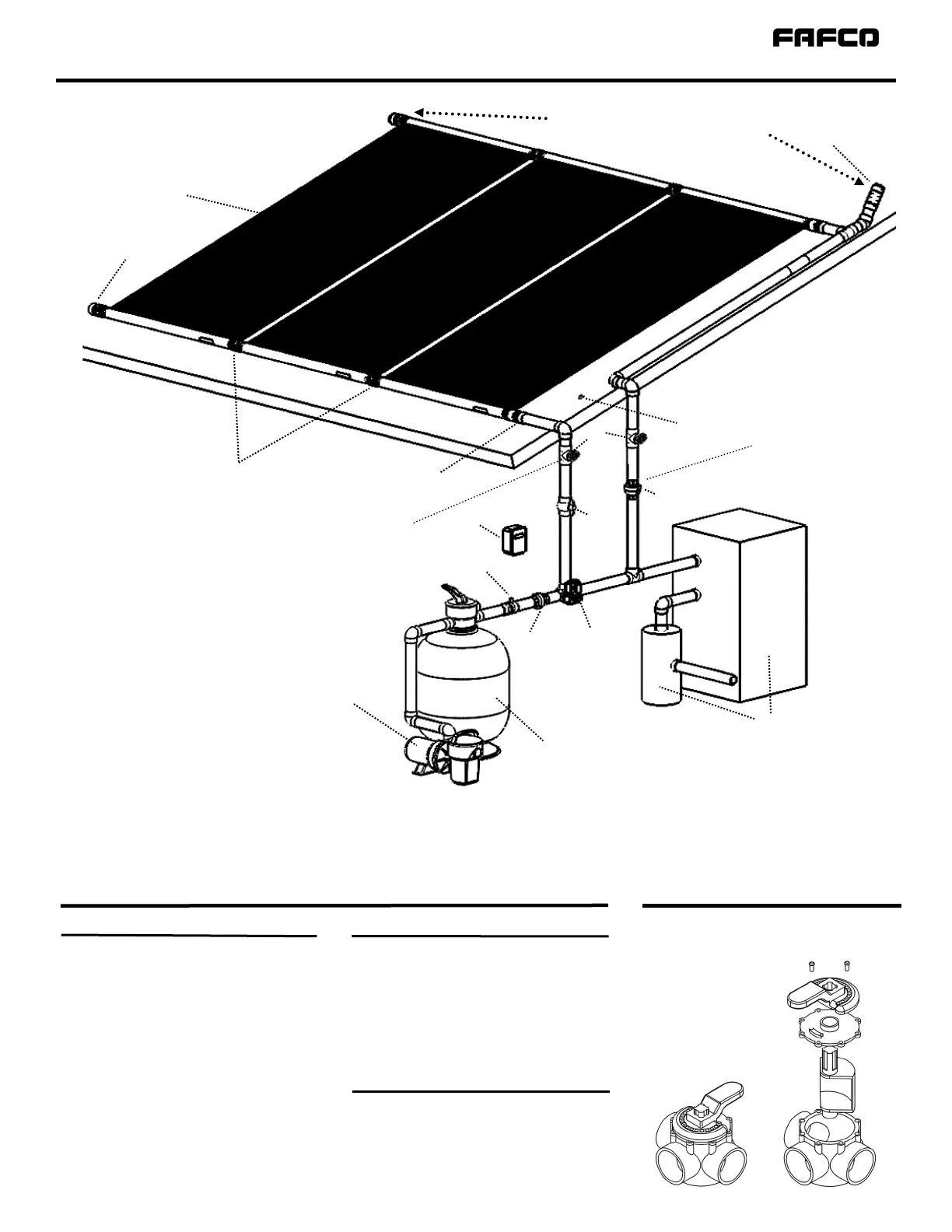

Figure 2 | Example SunSaver
®
System
The typical SunSaver
®
solar pool system consists of a combination of FAFCO
®
-sourced parts and standard equipment. The above figure and the component list below
depicts standard equipment components and shows the proper placement of all components. All FAFCO
®
SunSaver
®
pool systems should have the standard equip-
ment listed and shown.
System Overview
