Collectors on Composition Roofs
APPENDIX D — Roof Mounting Details
The figures depict an example of mounting on a composition shingle roof. Sub-
strate is not required to support and protect the collectors but it is recom-
mended to put a burier between the lower headers and the roof for extra roof
protection of the roof when the collectors move with temperature fluctuations.
Note: All mounting hardware must be installed with care. Seal all roof
penetrations according to an industry standard method.
NOTE:
If local codes allow the bolt to be secured only into the
sheathing, be sure not to overtighten bolts.

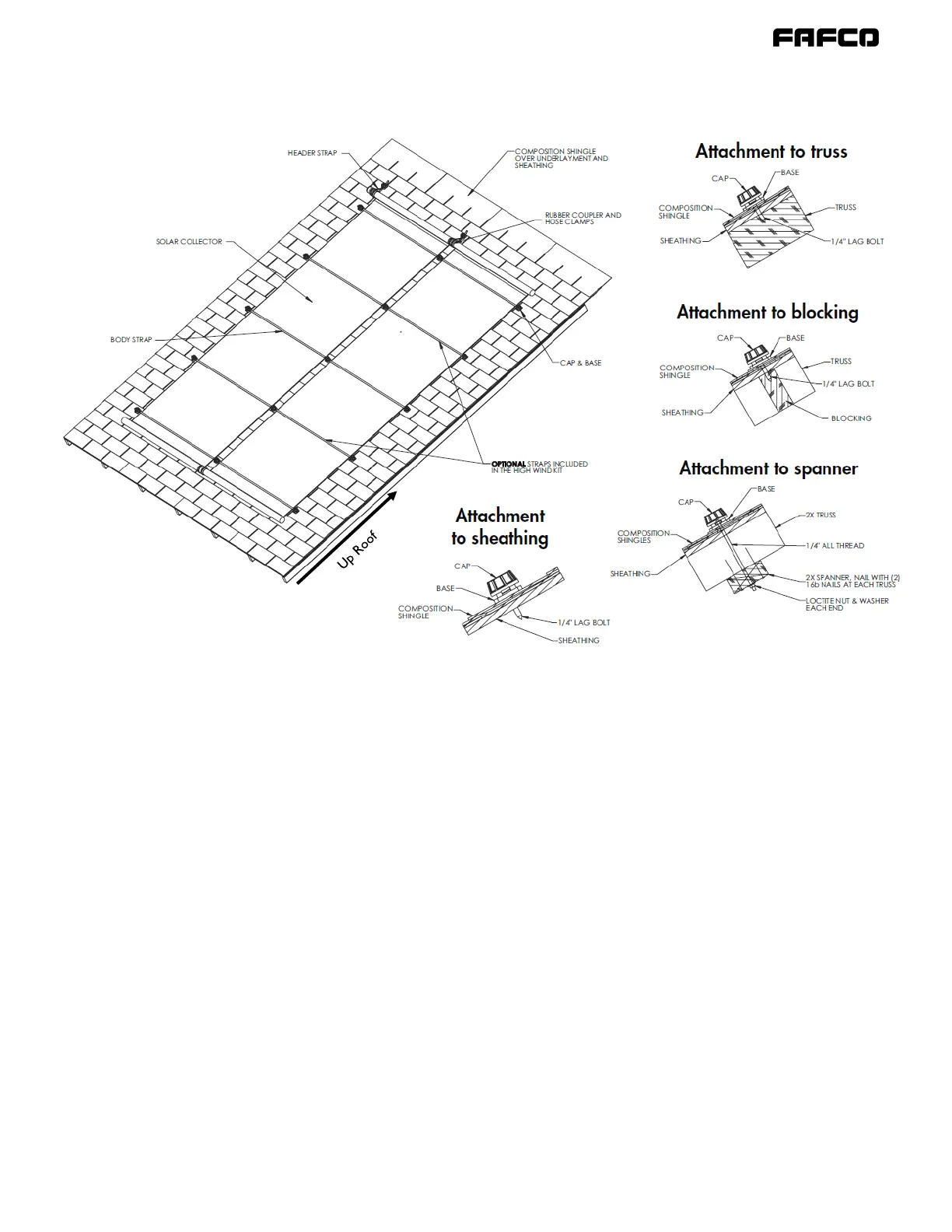

Figure 23 | Composition Roof Mounting
