APPENDIX D — Roof Mounting Details
The figures depict examples of a metal ground rack. Substrate is not required if the rack has
runners at a minimum spacing of 16”. If the rack has spacing greater than 16”, a substrate must
be used to support the collector from excessive sagging.
*
*Panels are to be installed no more than 20 vertical feet below pool surface to the
bottom header due to static head pressure at stagnation temperatures.

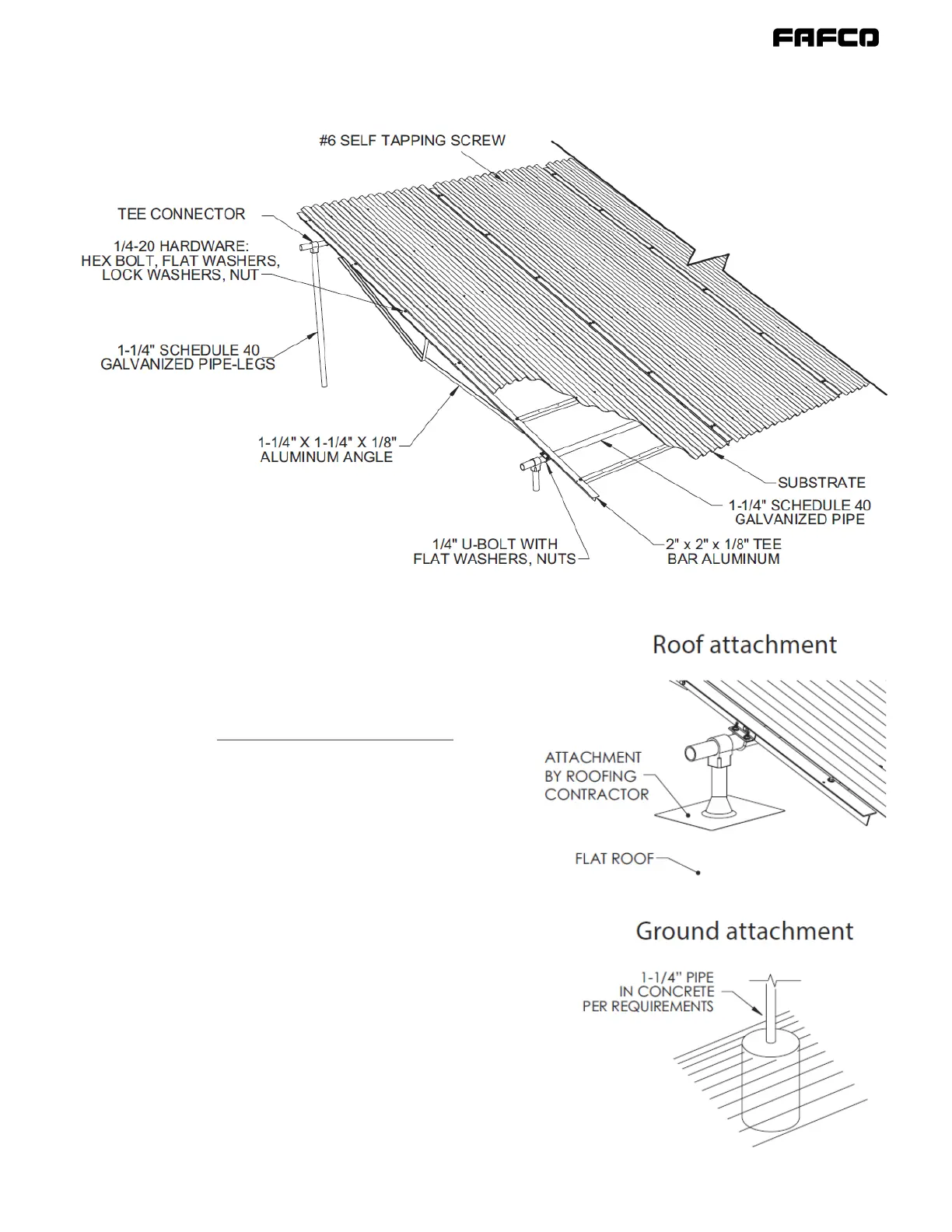

Figure 27 | Metal Ground Rack Mounting
