6. INFORMATION FOR TECHNICIANS
6.1 CONFIGURATION OF THE DIPS
FAGOR
ELECTRIC
ADVANCE
MODEL
DIP1 DIP2 DIP3 DIP4
CYCLE TIMES
(seconds)
AD 21 BDD OFF OFF OFF OFF
P1= 90 / P2=120 /
P3=180
DIP1= OFF, when the door is closed, the glasswasher continues washing only if the
cycle has not finished.
DIP2 = OFF
DIP1 + DIP3 , with the different possible combinations, we programme the cycle times.
DIP4 = OFF
6.2 ERROR DIAGNOSIS.

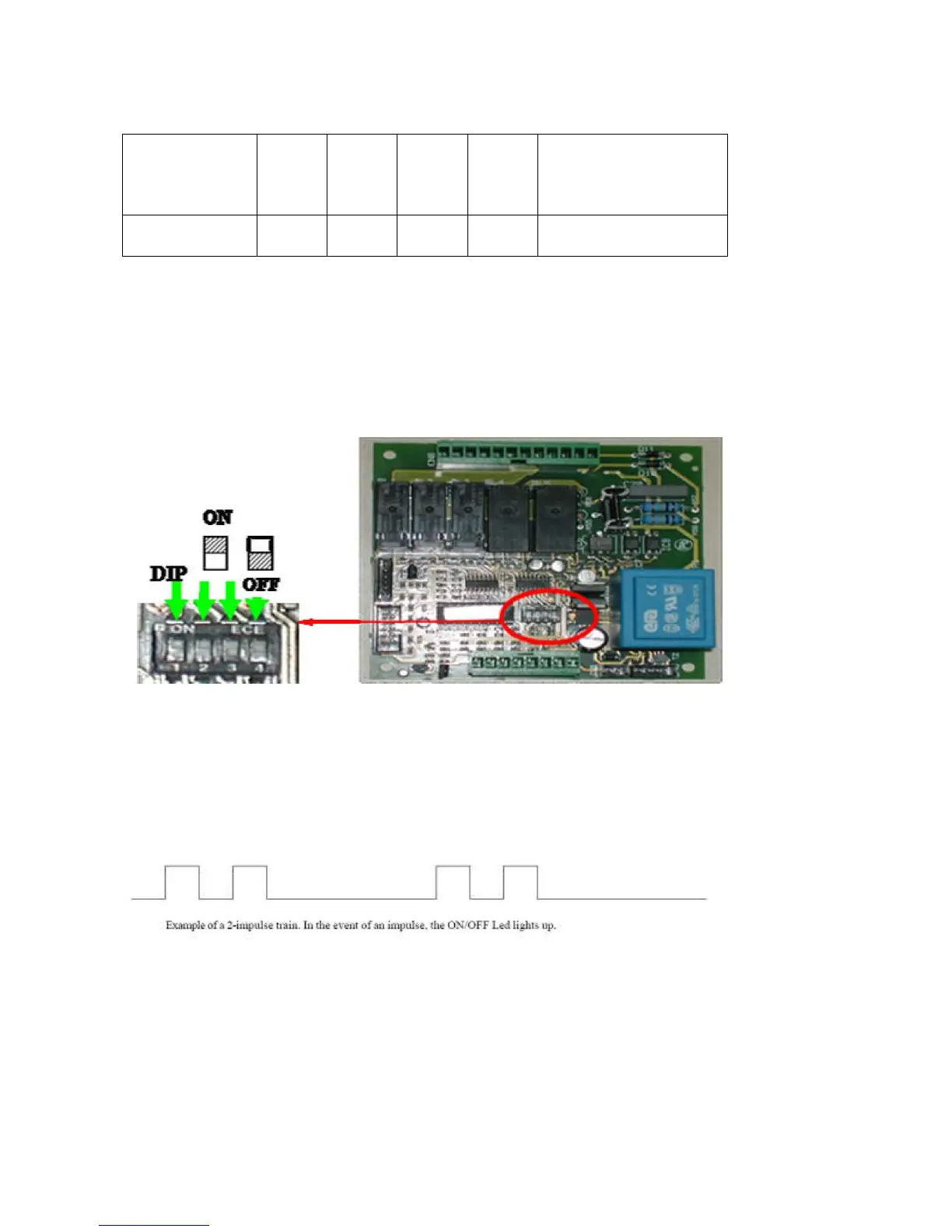

Faults are diagnosed with impulse trains from the ON/OFF LED. The trains are formed
by “x” impulses lasting 0.5 seconds. (ON) and a wait of 2 seconds, as shown in the
following figure:
1. ERROR: OPEN DOOR
This is indicated by a one-impulse train. That is, the ON/OFF LED lights up for 0.5
seconds and then remains unlit for 2 seconds before lighting up again. This continues
as long as the door is open and the selected cycle is unfinished.
2. TANK FILL ERROR.
This is indicated by a two-impulse train. That is, the ON/OFF LED lights up twice for
0.5 seconds each time and then remains unlit for 2 seconds, then lighting up again
twice. This continues while the water in the tank does not reach the correct level in
the specified time.
