Fagor Advance - Stacking Assembly: Panels and Fluepipe; Front Panel and Seal Mounting; Securing the Stacking Fluepipe

16/11/2012
33

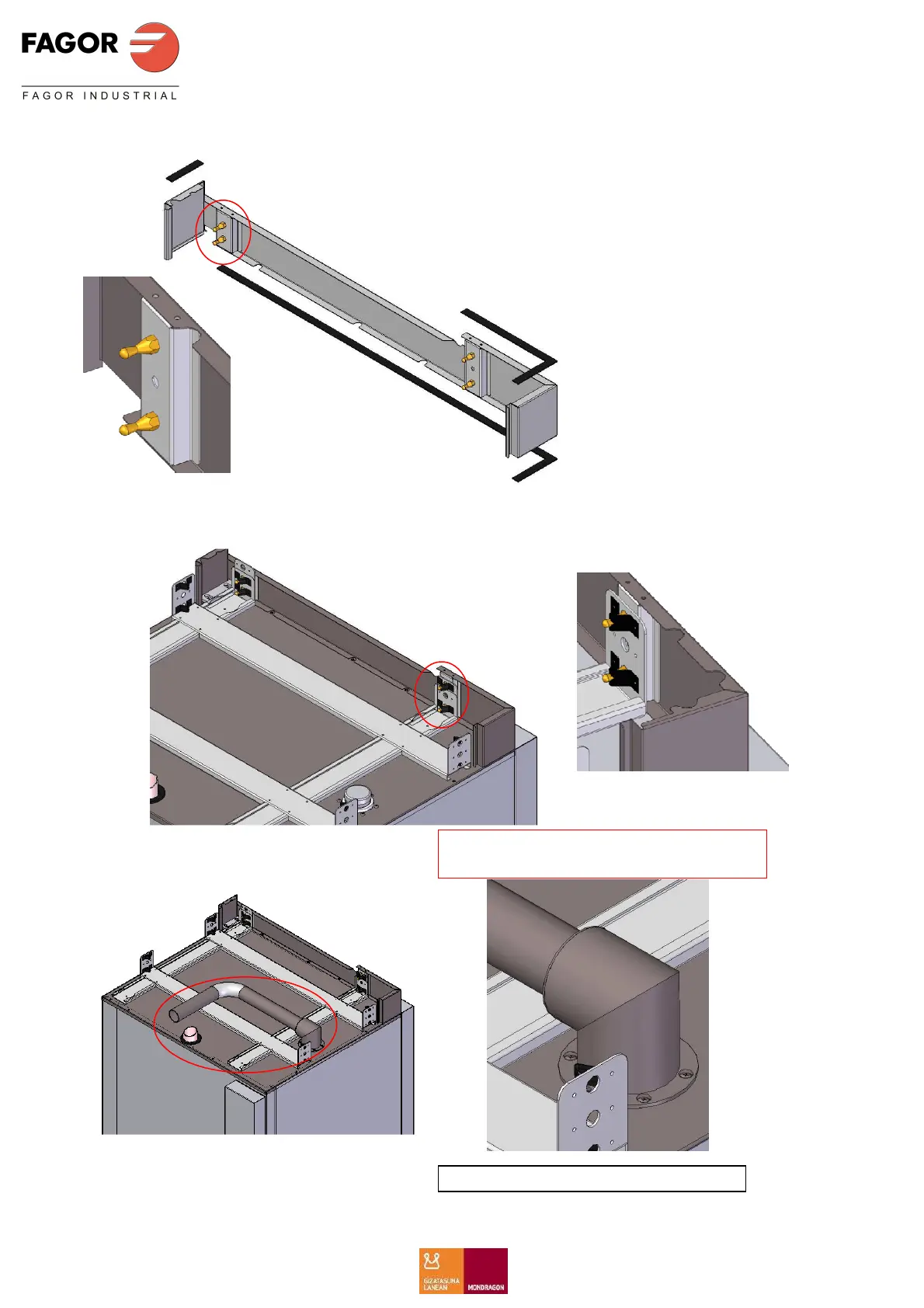

4. Mount the front panel with the seals.
5. Fit the front panel over the base structure.
6. Secure the stacking fluepipe.
R
EF SAP Description
Quantity
12046244 Advance Stacking Front 1
12002212 STACKING FASTENER WEDGE 1
12046276 Advance Stacking Fastening Wedge 1
12010090 RIVET AVINOX Ø4x10MM 8
12010163 HEXAGONAL RIVET M5 4
12008693 LOCK SPIKE 2
12024285 CONTROL HOLDER SEAL 20/11 2
12046316 ADVANCE STACKING FLUEPIPE 1
CAUTION: Use the bolts mounted on the
fluepipe and seal with Loctite.
