Fagor Advance - Stacking Assembly: Panels, Fluepipe Guide, and Hoses; Fitting Side Panels; Securing Fluepipe Guide and Hoses

16/11/2012
35

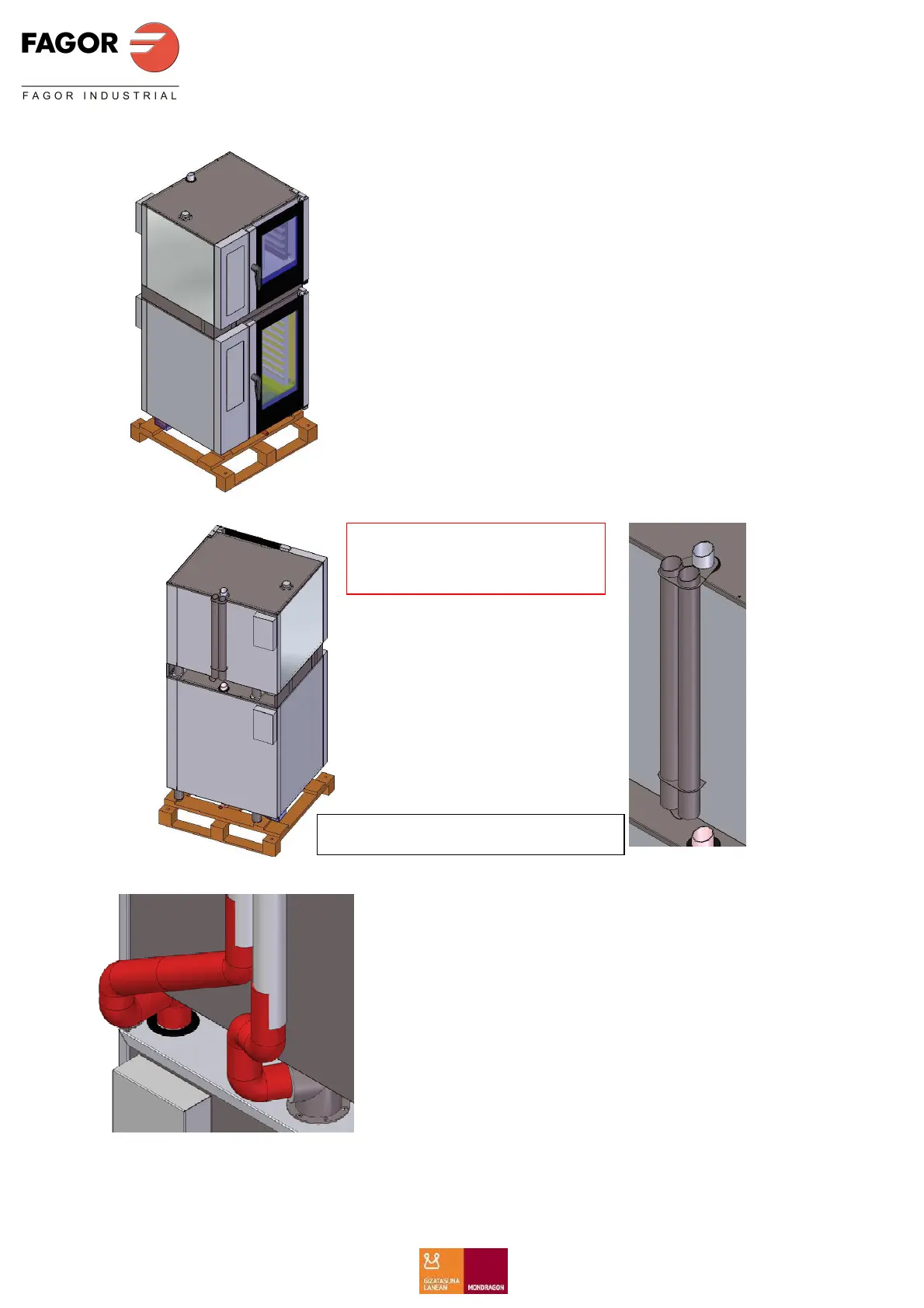

10. Fit the side panels.
11. Secure the fluepipe guide onto the top oven.
12. Join the outlets to the hoses.
R
EF SAP Description
Quantity
12024122 HOSE Ø53X360 2
12009962 CLAMP 40-60 4
12046321 ADVANCE STACKING FLUEPIPE
GUIDE
CAUTION: Use the bolts mounted
on the fluepipe and seal with
Loctite.
