Connection between CNC and axis BCSD drive
3.2 Connection between CNC and axis BCSD drive
Cable name: BSC-CA-XX-02
Cable between CNC Communications board CAN AXES connector and CN3 connector of the BCSD
axis drive.
Length: 5 m - 10 m - 15 m.
Connector:
1 x 5-pin male Phoenix minicombicon connector (3.5 mm pitch) on the SCD.
1 x RJ45 on the BCSD.

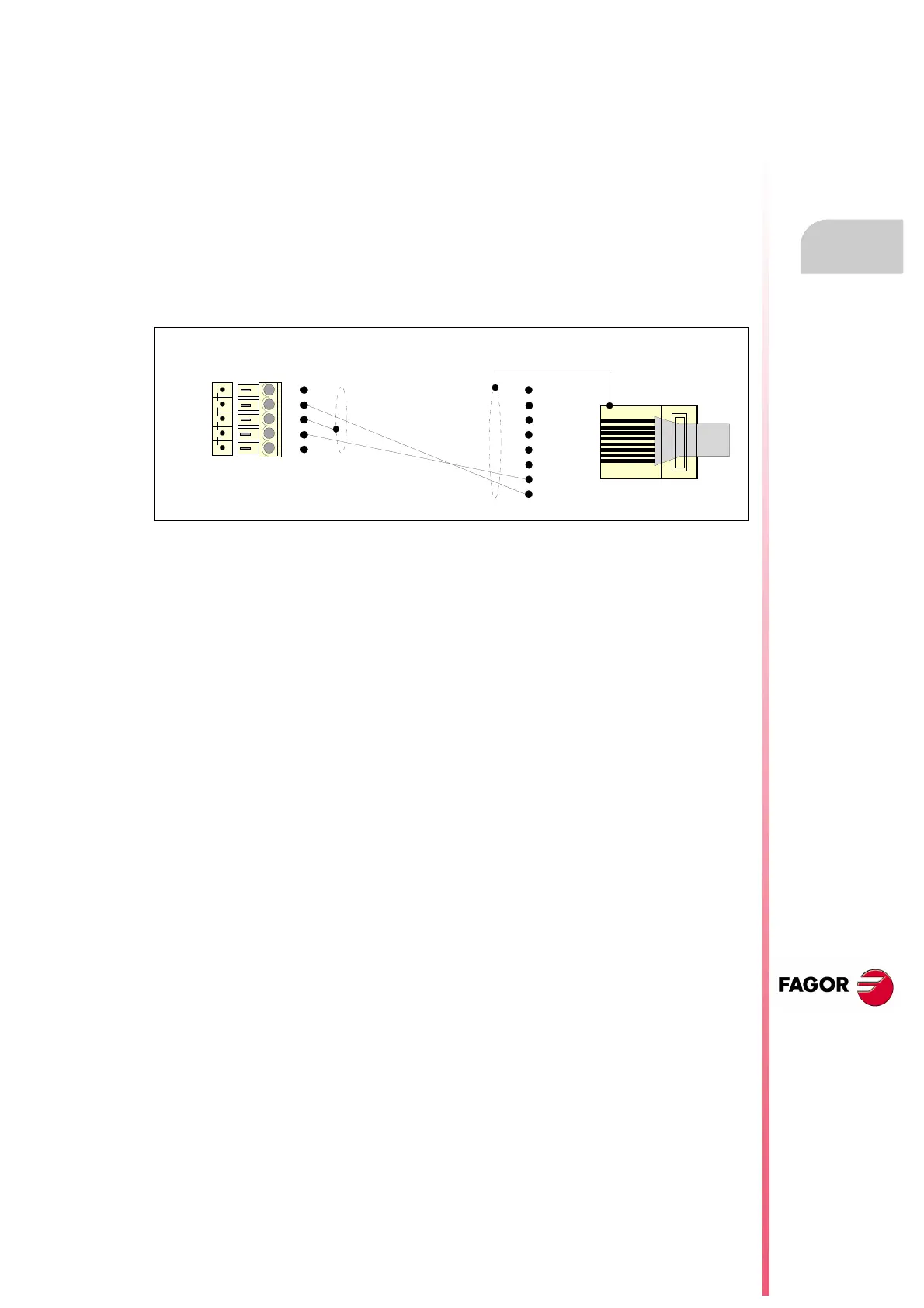

Pinout:
Characteristics of the CAN cable:
Type: Shielded.
Twisted pairs (1 x 2 x 0,22 mm2).
Flexibility: Superflexible.
Minimum static bending radius of 50 mm and a dynamic radius of 95 mm.
Cover: PUR.
Impedance: Cat.5 (100 W - 120 W).
1
2
3
4
5
1
2
3
4
5
Pin
Pin
6
7
8
CAN L
CAN H
CNC BCSD CN3
CAN L
SHIELD
CAN H
Metallic housing
