Fagor BCSD - Connection: Spindle Drive to BCSD Axis Drive

·32·
Installation manual
BCSD
System
3.
CABLES
REF. 1711
Connection between SCD spindle drive and BCSD axis drive
3.3 Connection between SCD spindle drive and BCSD axis drive
Cable name: BSC-SA
Cable between X6 connector of SCD spindle drive and CN3 connector of BCSD axis drive.
Length: 300 mm.
Connector:
1 x 5-pin male Phoenix minicombicon connector (3.5 mm pitch) on the SCD.
1 x RJ45 on the BCSD.

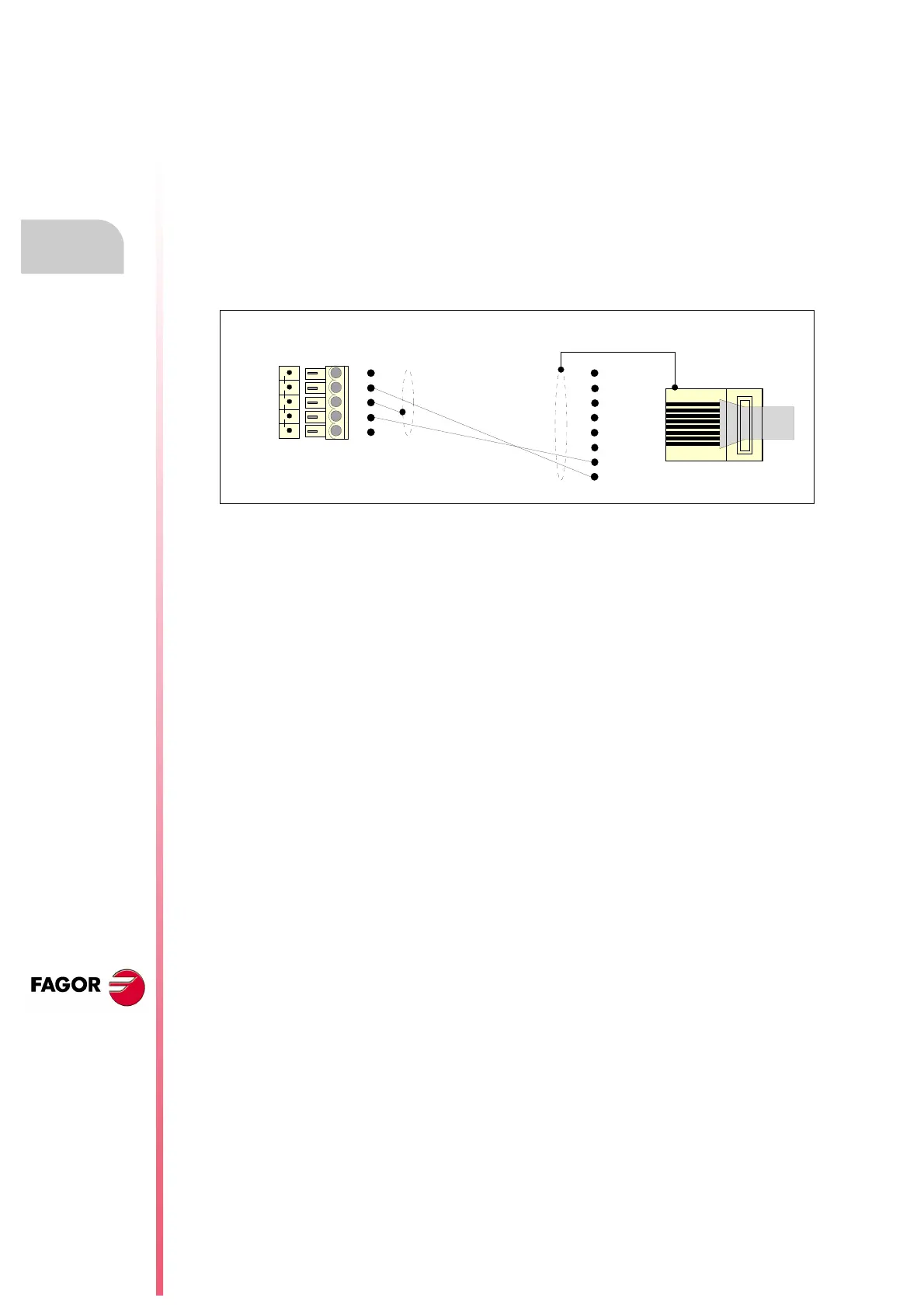

Pinout:
Characteristics of the CAN cable:
Type Shielded.
Twisted pairs (1 x 2 x 0.22 mm2).
Flexibility: Superflexible.
Minimum static bending radius of 50 mm and a dynamic radius of 95 mm.
Cover: PUR.
Impedance: Cat.5 (100 W - 120 W).
1
2
3
4
5
1
2
3
4
5
Pin
Pin
6
7
8
CAN L
CAN H
SCD X6 BCSD CN3
CAN L
SHIELD
CAN H
Metallic housing
