22/07/2019
34
SERVICE MANUAL
EVO FRONT LOADING DISHWASHER
Medium/standard cycle (for fairly dirty dishes).
Long cycle (for very dirty dishes or dishes with dried-on dirt).
PG (Glass Programme): Glass wash cycle with rinse temperature of 65 ºC / 149 ºF.
9.4.1. NO CLINIC-LINE DISHWASHER
To switch on the machine, press “ON/OFF”, and when the required programme button is pressed, the dishwasher
will start, provided that the water level in the tank is correct.
Selection of the programme (P1, P2 or P3) will start the machine for the time stipulated for this cycle. If the door is
open at any time, a PAUSE is made in the cycle, in both the operation and the countdown time, and normal
operation is restored as soon as the door is closed.
When a programmed cycle ends, the glasswasher remains in stand-by until:
• A new programme is selected or START is pressed.

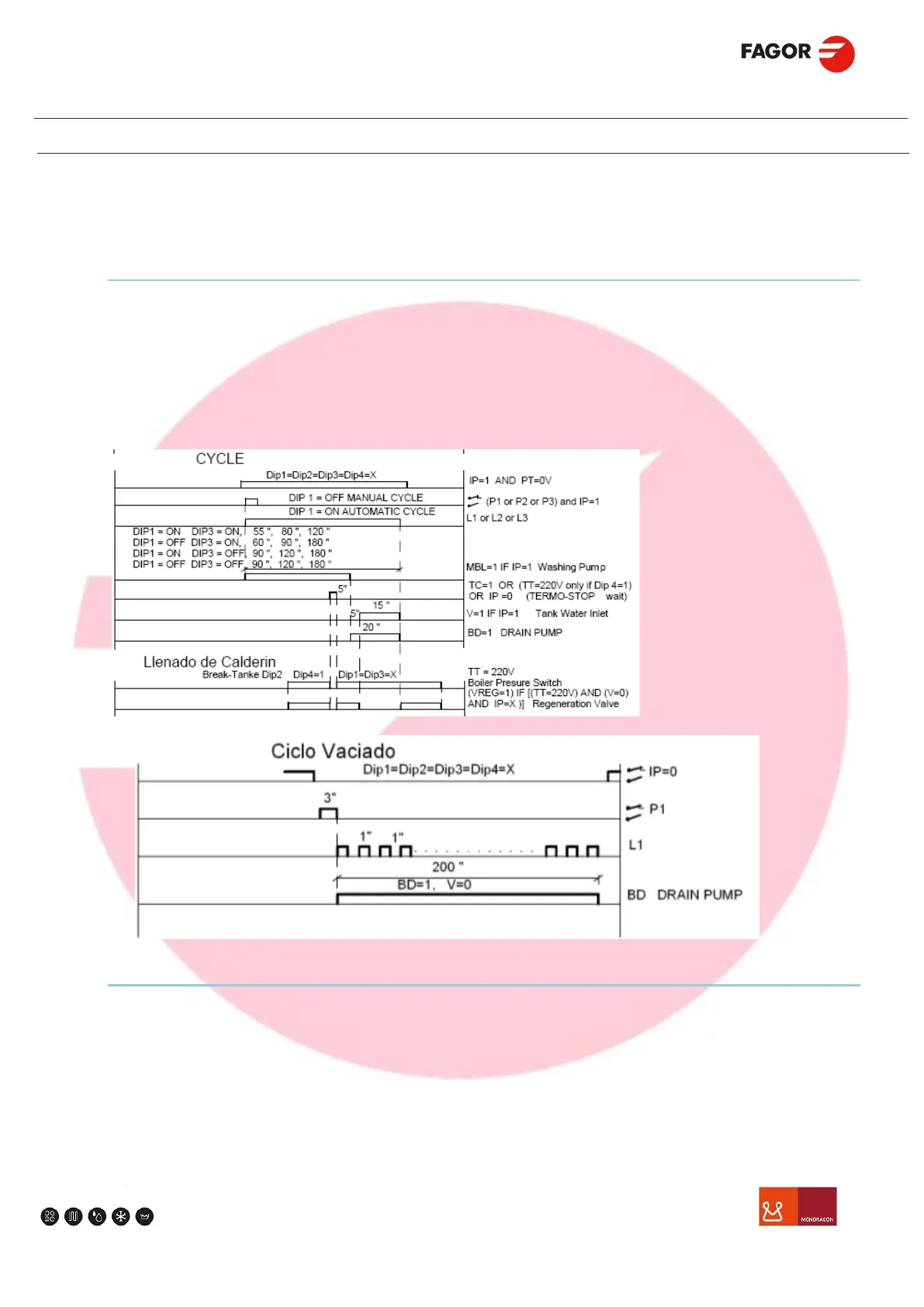

9.4.2. CLINIC-LINE DISHWASHER
• Vreg (the output Vreg is used as a boiler filler valve).
o If rinsing: Vreg=0.
o If we are not in the rinse cycle and TT (PC in this case)=1: Vreg=1 (Fill drum to point
indicated by boiler pressure switch).
• When the boiler is full (PC=0), activate V (fill tank using the filler pump) for 15 seconds. Then, fill the
boiler using Vreg until PC=0 and activate V for another 15 seconds. Continue in this way until the
tank is full (PT=0).
