EVO FRONT LOADING DISHWASHER
To convert French degrees (hFº) to milligrammes of calcium carbonate (CaCO3), multiply the number of French
degrees by 10. Example: 22 hFº x 10 = 220 mg/l of CaCO3.

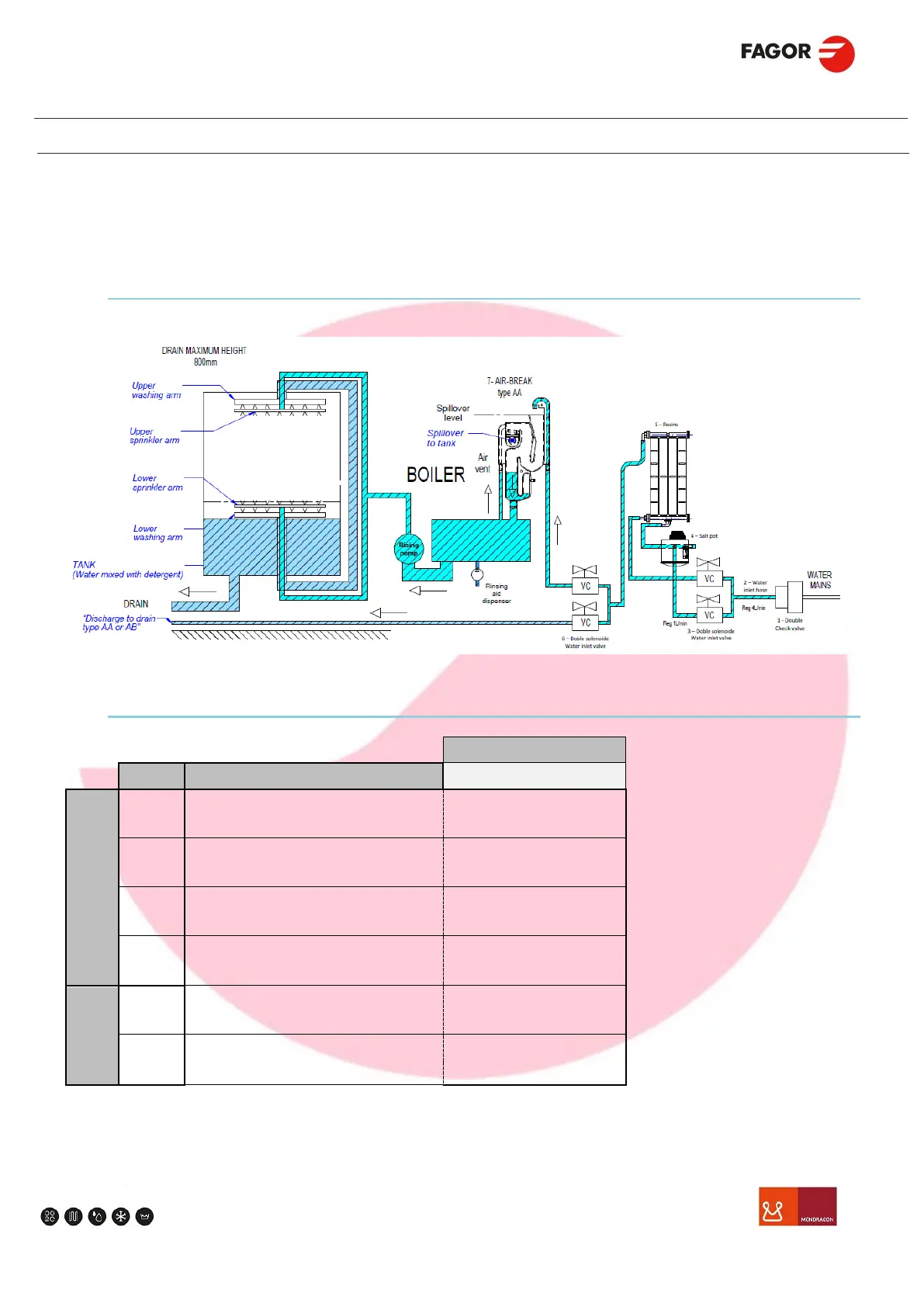

9.6.7. SOFT MODEL HYDRAULIC DIAGRAM
9.6.8. LEVELS
FRONT OPENING
LEVEL
FUNCTION
AD-505
TANK
PT1 Tank MIN safety level 15
PT2 Tank MIN operating level 80
PT3 Tank MAX operating level 100
PT4 Tank MAX safety level 135
BOILER
PC-
HIGH
Boiler MAX operating level
35
PC-
LOW
Boiler MIN operating level
15
Tank and boiler pressostat values
PT1:
Tank minimum safety level (the level must be detected for at least 2 seconds).
If this level is reached during the wash cycle, the machine is completely disabled and error 12 is displayed.
