Falcon 1990 - Install Cylinder; Install Pinion Cam and Traveler

3

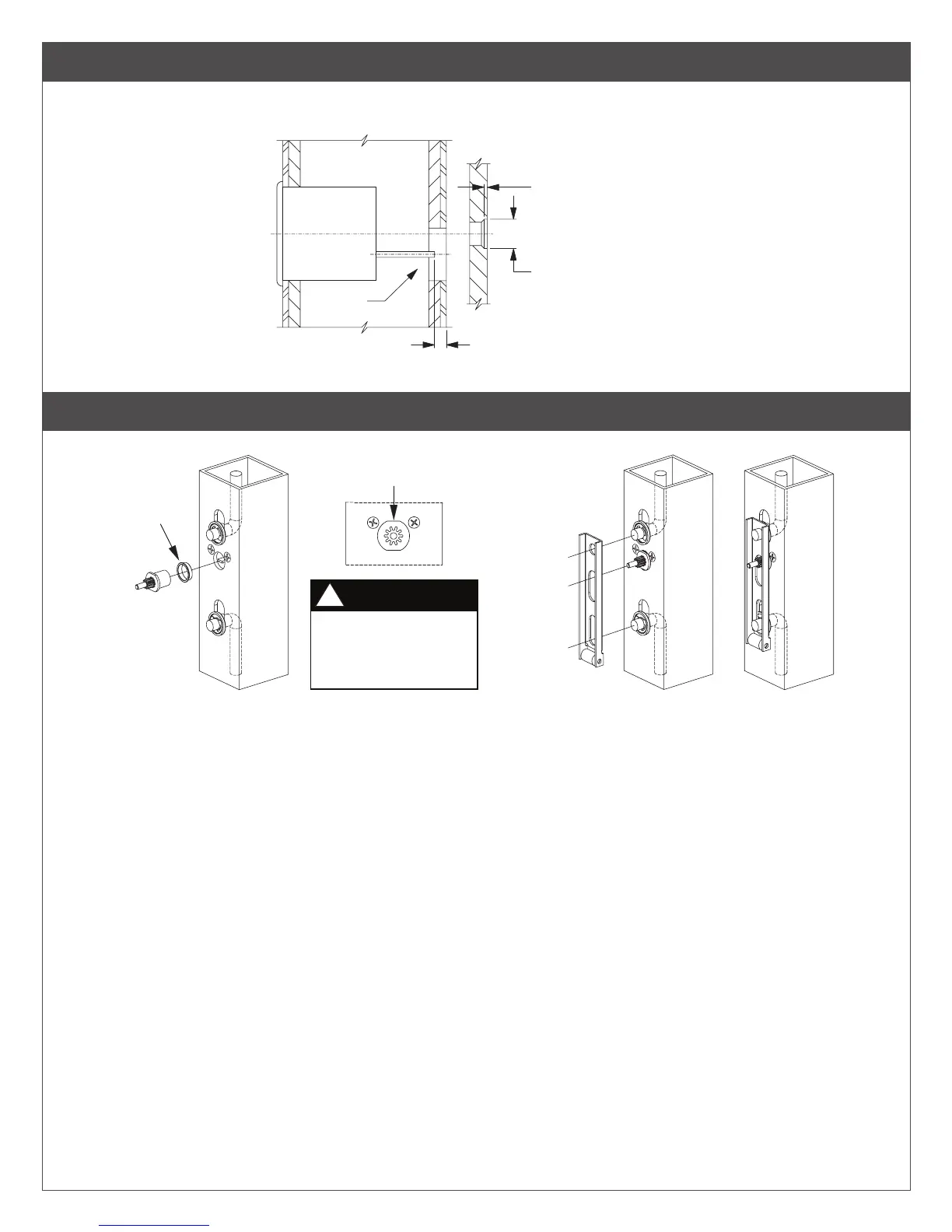

2 Install cylinder
Install cylinder. If required, cut cylinder tailpiece as shown. Heads of cylinder mounting bolts must be ush with door surface.
3/64"
15/64" dia. drill
5/16" dia. c'sink
3/16" from end of cylinder
tailpiece to surface of door
Tailpiece
3 Install pinion cam and traveler.
Figure 3-2
Traveler
Pinion
cam
Apply a light coating of
Duralub or equivalent
lubricant to prolong
pinion cam life.
NOTE
!
Figure 3-1
Cylinder
bushing
Position flat spots on
pinion cam as shown
