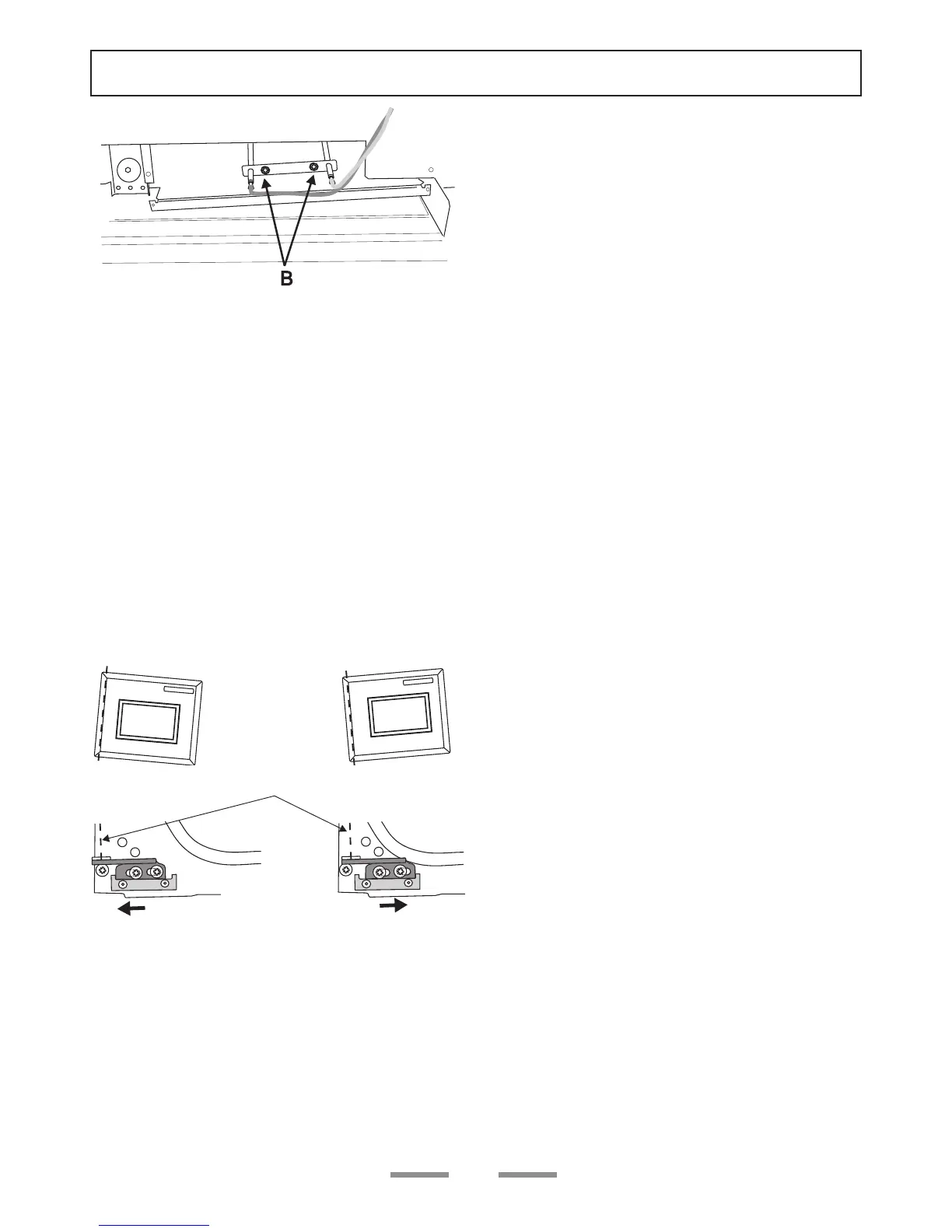

Remove the two screws B, holding the element to the
bottom sheet.
Disconnect the leads, noting their positions.
Withdraw bottom element. Fit the new element and re-
assemble parts in reverse order.
Top Element
Open the left hand oven door and undo the fixings that
secure the heat shield. Remove the top element bracket
fixings and withdraw the element.
Replace the element and re-assemble the parts in reverse
order. Check that the oven operates satisfactorily.
The Main Oven door bottom hinge can be adjusted to
alter the angle of the door. Loosen the bottom hinge
fixing screws and use the notch and a flat bladed
screwdriver to move the position of the hinge to set the
hinge position.
Retighten the hinge screws.
Effect of hinge adjustment – exaggerated for clarity
Centre line of hinge pin
Oven door omitted for clarityCircuit Diagram
