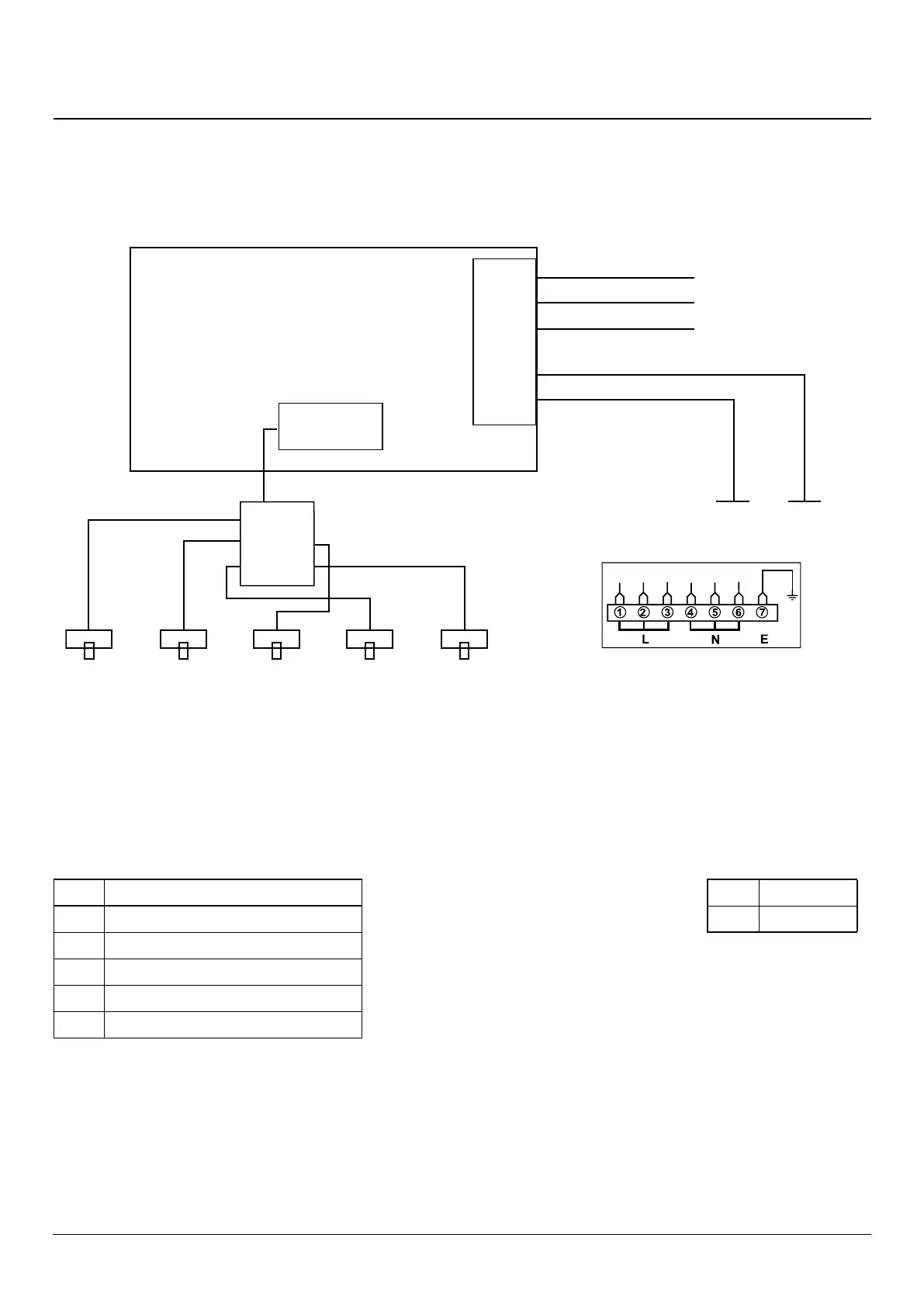

9. Circuit Diagram
Hob
Key
The connections shown in the circuit diagram are for single-phase. The ratings are for 230 V 50 Hz.
12
53
4
E
5
4
3
2
1
INTERFACE
BOARD
1
2
5
4
3
INDUCTION UNIT
HOB
DISPLAY
Earth
N(6)
N(4)
L(2) L(3)
On Terminal Bloc
k
On Terminal Block
On Terminal Block
w/br
w/br
w/br
w/br
w/br
Code Description
1
Left-hand front element
2
Left-hand rear element
3
Right-hand rear element
4
Right-hand front element
5
Centre element
Code Colour
w/br
White / Brown
