OM48017A
THE SSG UNIT
The following illustrations depict the SSG500 unit.
Please reference the SUMMARY OF INDICATORS AND CONTROLS for a further
description of the call-outs.
1. AC- AC LINE INDICATOR
2. INV- INVERTER OPERATING
3. ALM- ALARM STATUS
INDICATOR
4. POWER ON/OFF SWITCH
5. UPS OUTPUT- INVERTER OUTPUT TO CRITICAL
LOAD
6. SIGNAL- 9 PIN “D” SUBMINIATURE CONNECTOR
7. IDENTIFICATION LABEL
8. INPUT- INPUT CORD INLET
9. FUSE- INPUT LINE FUSE
10. FUSE- OUTPUT LINE FUSE
11. COOLING FAN

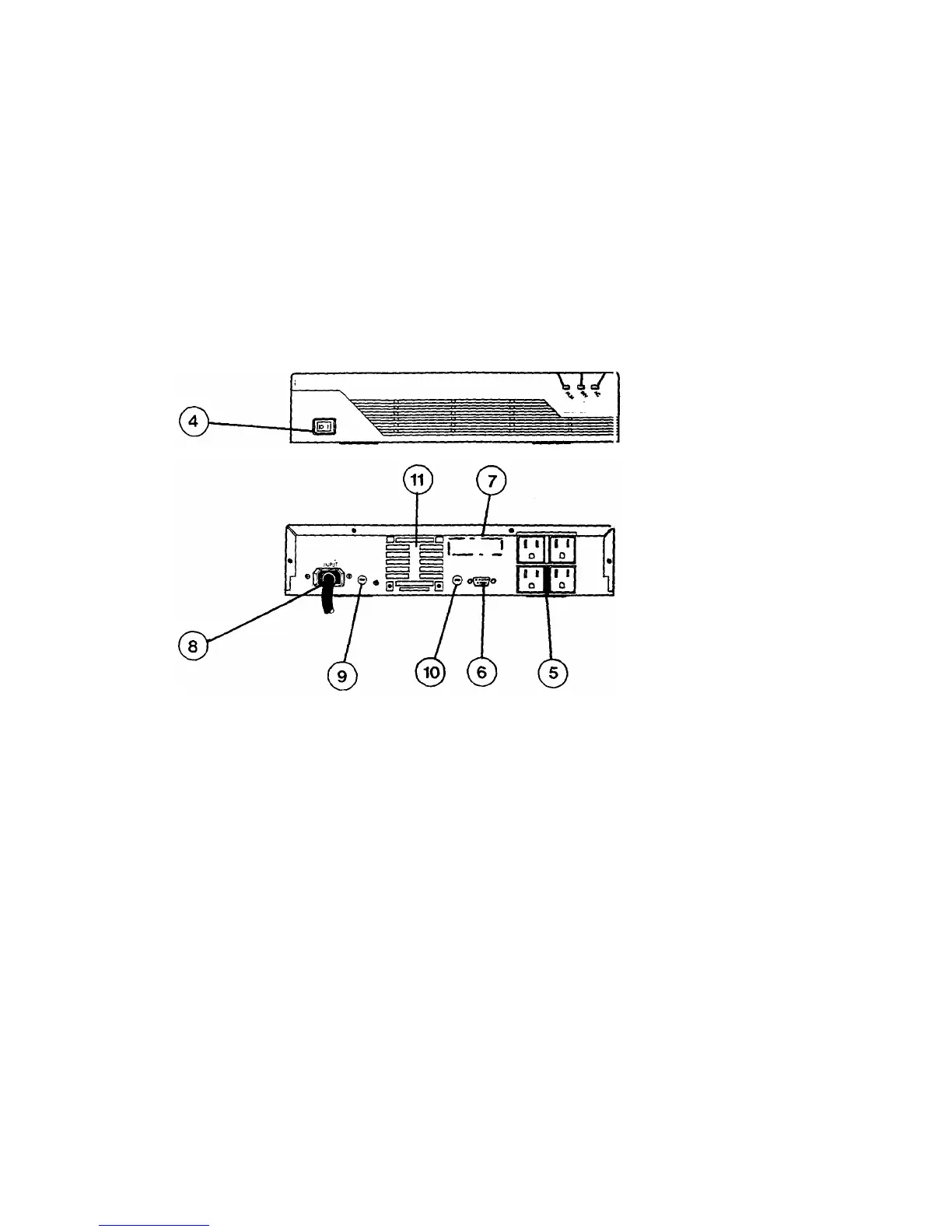

FIGURE 3: FRONT AND REAR VIEW
SSG500
