FALMEC Move - Installation Procedure: Hood Securing; Hood Fastening and Motor Centering

8
V2 (M4x20)
x4
360 mm
3
4
1
2

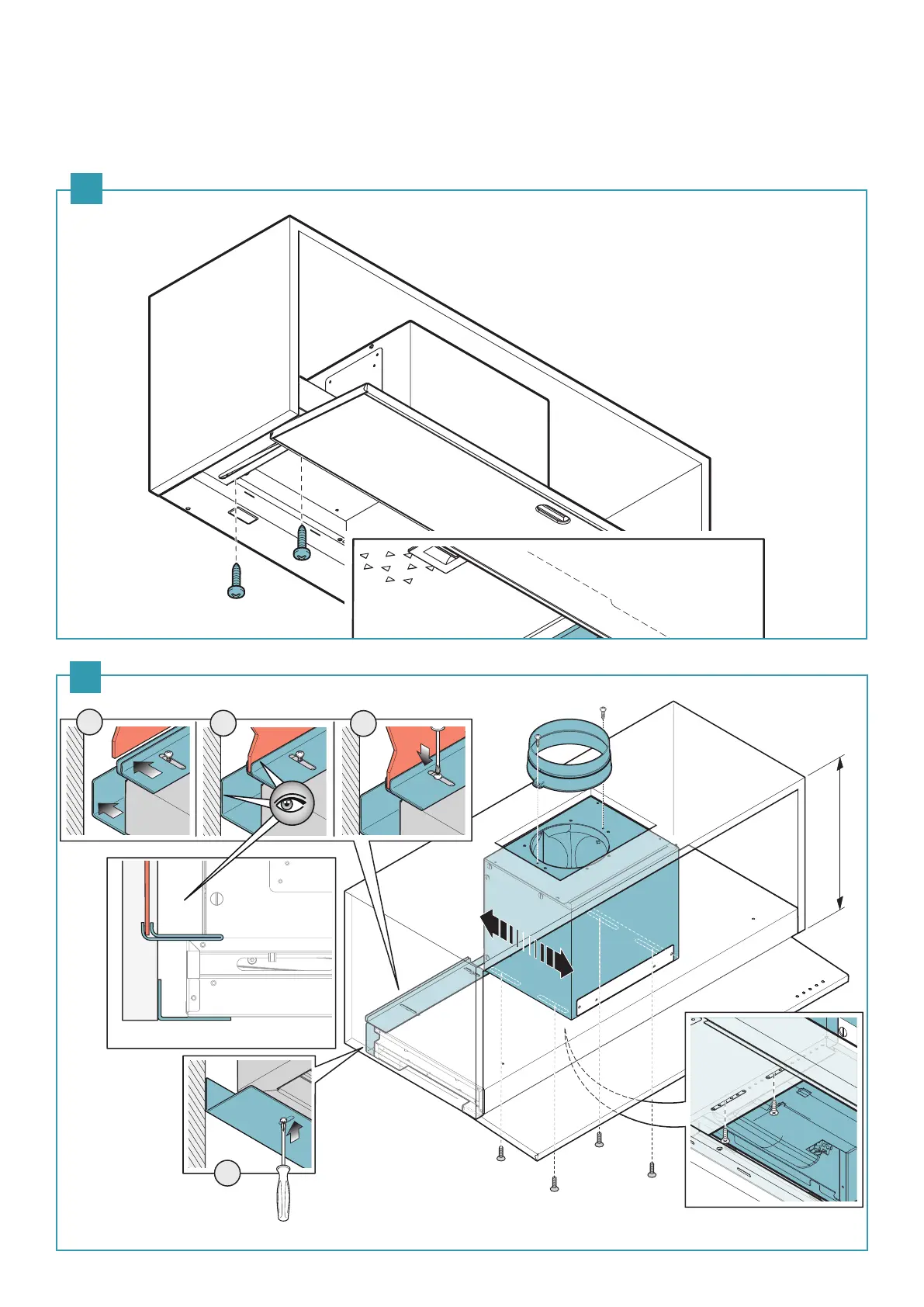

EN - Hood fastening to suspen-
ded unit (4) motor chamber
centring and rear bracket
insertion (5).
FR - Fixation de la hotte au meu-
ble (4) centrage chambre
moteur et xation aux an-
crages postérieurs (5).
ES - Fijación de la campana al
colgante (4), centrado de la
cámara del motor e inser-
ción de los soportes poste-
riores (5).
IT - Fissaggio cappa al pensile
(4) centraggio camera mo-
tore e inserimento stae po-
steriori (5).
5
4
