14
6.3 Hardmounting the CSL Elite Racing Wheel

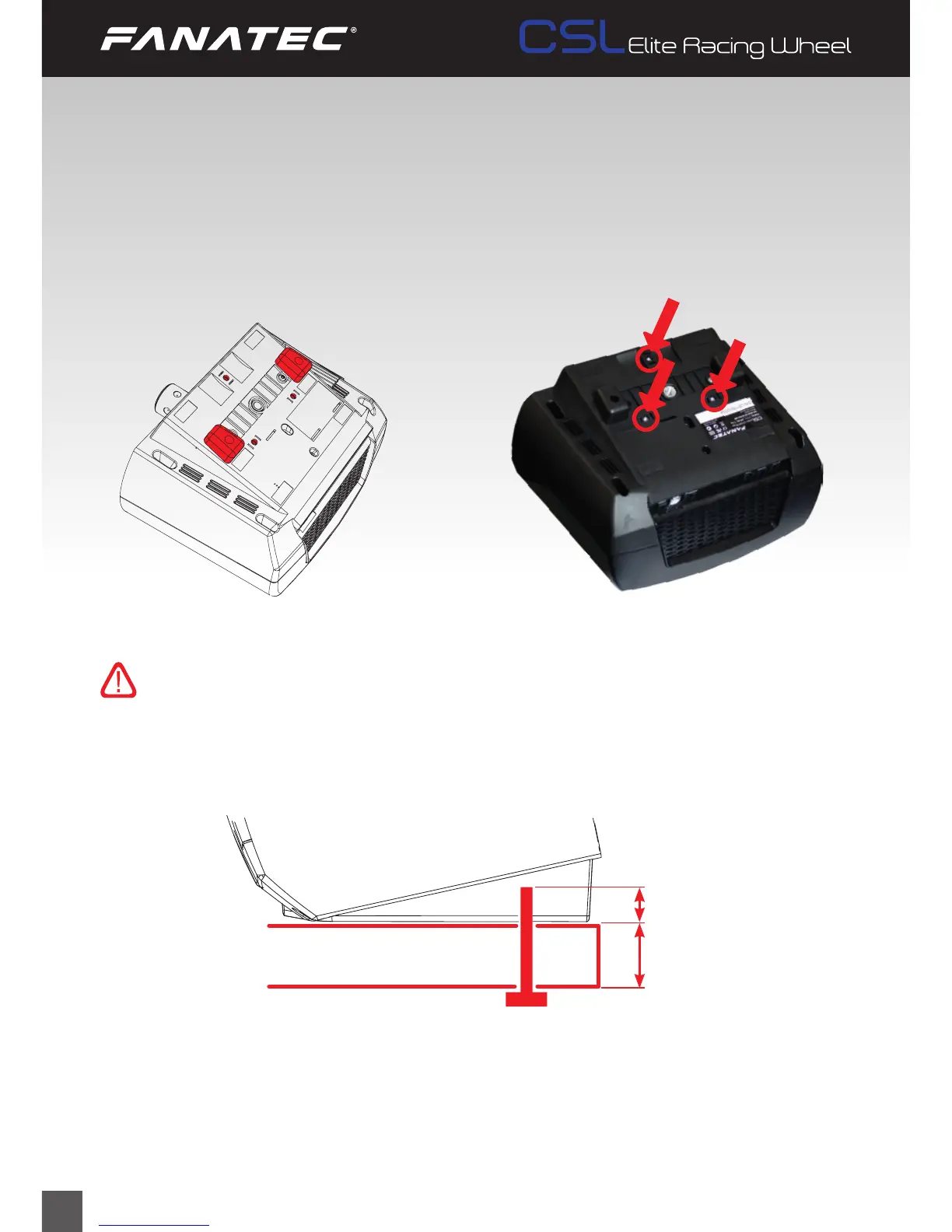

The CSL Elite Racing Wheel offers a three-point hardmount location on the
bottom side of the CSL Elite Wheel Base (see the right hand side picture
below.) To hardmount the wheel base, rst disassemble the two blocks from
the bottom side with a 3mm Allen key (not included), see highlighted on the left
hand picture below:
IMPORTANT: Use only good quality M6 screws. Choose the screw
length so that the thread does not reach more than 16 mm into the wheel
base. Always use all three hardmount points, this allows a proper and
stable installation and avoids damage!
Table
max 16mm
X
To hardmount the CSL Elite Racing Wheel to a table or rig by screws please
nd the printable drilling template in the download area of our website
www.fanatec.com.
