FG7X Housing Instruction Manual 20150101
11. Tripod Mounting Screw Holes – Enable mounting the housing on a tray, thereby allowing for the
addition of various image enhancement accessories to your underwater photo system. By choosing
any one of 3 adjustment positions, you can better determine how and where to position the housing
on the tray. This configuration also allows for the use of 2 set screws for the tray mount, thereby
preventing any swiveling of the housing on the tray.

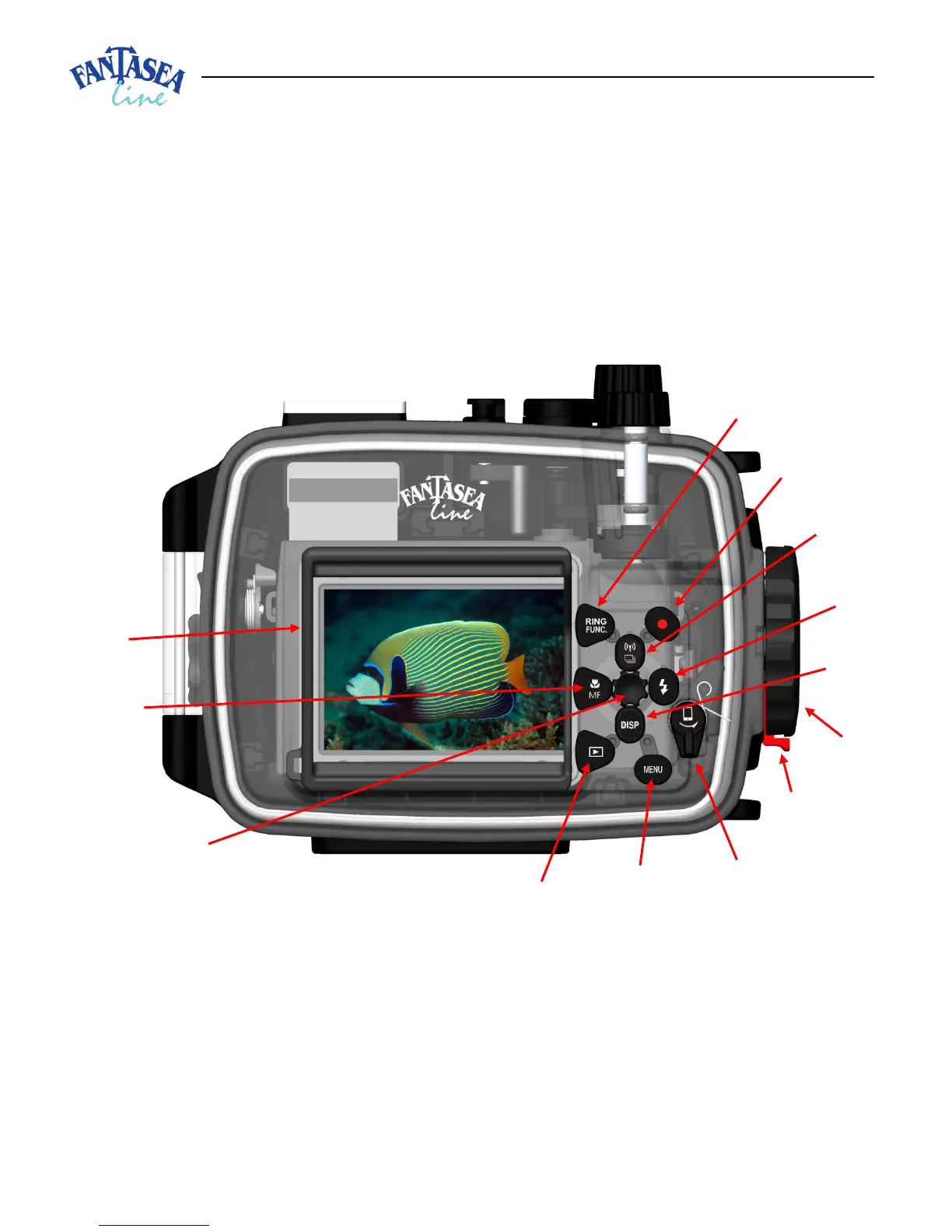

Back Side of Housing - Corresponding numbered descriptions are found below the image
12. Ring Function Selector / Delete –
a. In shooting mode, press this button to reassign control ring functions.
b. In playback mode, press this button to delete a single image.
12. Ring Function Selector /
Delete
18. Func. Set /
Control Dial
21. Mobile Device
Connection
24. Removable
Anti-Glare
Hood
