Fantec QB-35US3R - Front Panel Overview

DE - 01/38
DE - 02/38

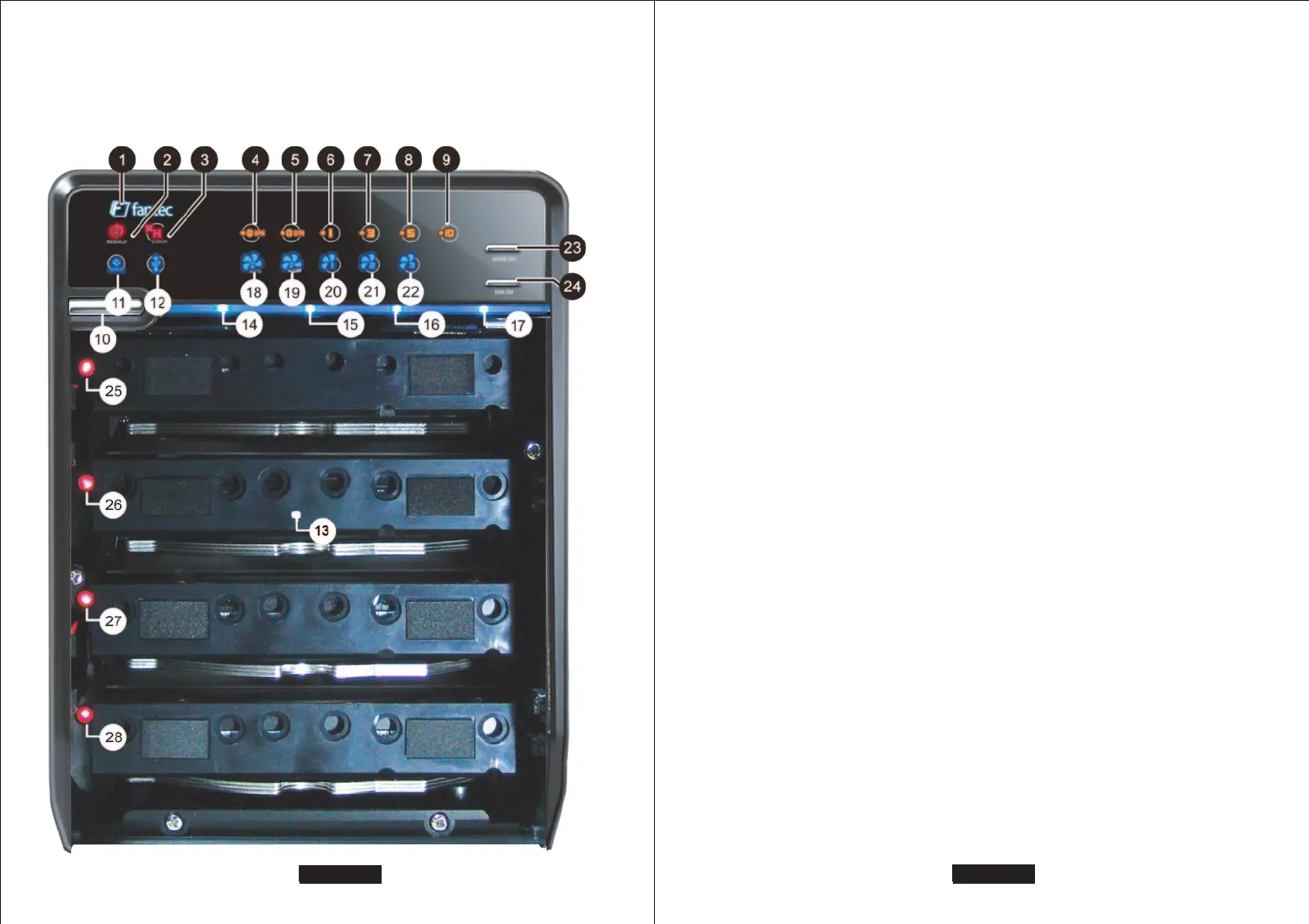

DIAGRAM of FANTEC QB-35US3R
FRONT PANEL
DESCRIPTION
LED INDICATION
1. Blue Power on
Orange Sleep mode
2. Rebuild
3. HDD error When any of HDD1~HDD4 has error, HDD error is on.
4. RAID 0 Spanning Mode / BIG
5. RAID 0 Striping Mode
6. RAID 1
7. RAID 3
8. RAID 5
9. RAID 10
10. Power button It needs to be pressed for 3 seconds to power off.
This design prevents accidental power off.
11. eSATA in use / access
12. USB in use / access
13. HDD Handle
14.-17. HDD1 / HDD2 / HDD3 / HDD4
Blue active
Purple access
Red rebuild
18. Smart Fan automatic mode
19. Smart Fan manual mode
20. Fan speed level 1
21. Fan speed level 2
22. Fan speed level 3
23. Mode RAID mode button needs to be pressed for 3 seconds to
switch the device's mode. This design will prevent
accidental execution of this function.
24. Fan button Controls auto & manual modes and fan speed from
level 1 to level 3.
25. HDD1 error
26. HDD2 error
27. HDD3 error
28. HDD4 error
OVERVIEW
