CLUTCH LEVER AND GEARBOX
Perform the clutch adjustment when the engine stops or the
vehicle tends to move forward with the clutch lever and the
gear engaged, or if the clutch “slips”, causing an acceleration
delay with respect to the engine rpm.
To make the adjustment:

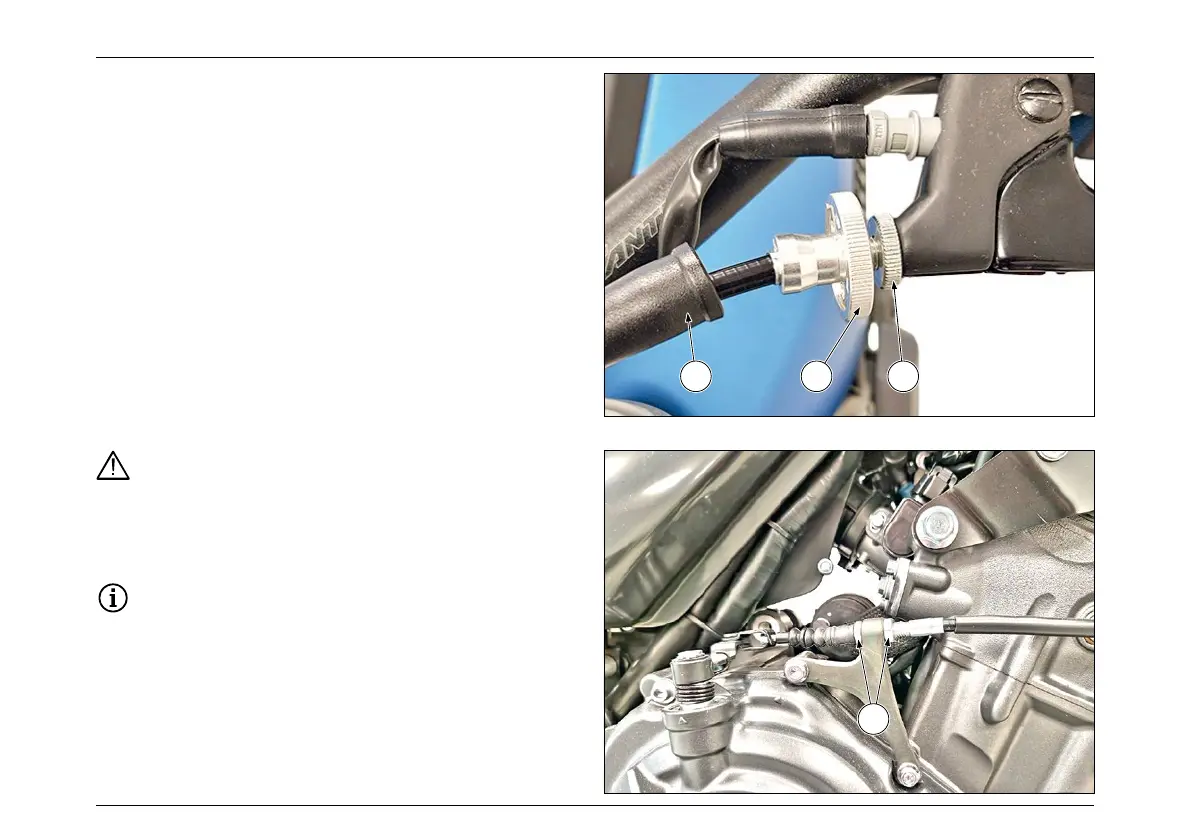

– Remove protection cowl “A”.
– Lock the ring nut “B”.
– Turn the adjustment ring nut “C” clockwise to increase
tension. Conversely, turn the ring nut counterclockwise to
decrease tension.
– Reposition the protective cowl “A”.
– If the stroke of the “C” adjuster is not sufficient to
guarantee the required clearance, operate on the clutch
lever adjusters “D”, located on the engine crankcase.
Check the integrity of the clutch cable in its entire
length; the sheath must not show cracks, cuts,
crushing or wear, if only one of these defects is
present, replace the clutch cable at an authorized
Fantic Motor Center.
If the adjustments made are not sufficient to
guarantee the required clearance, contact an
authorized Fantic Motor Center.
D
A C B
