78
MAINTENANCE
LIGHTS AND TURN SIGNALS
For disassembling, checking and/or replacing the
headlight, tail light and license plate light, contact
an authorized Fantic Motor Service Center.

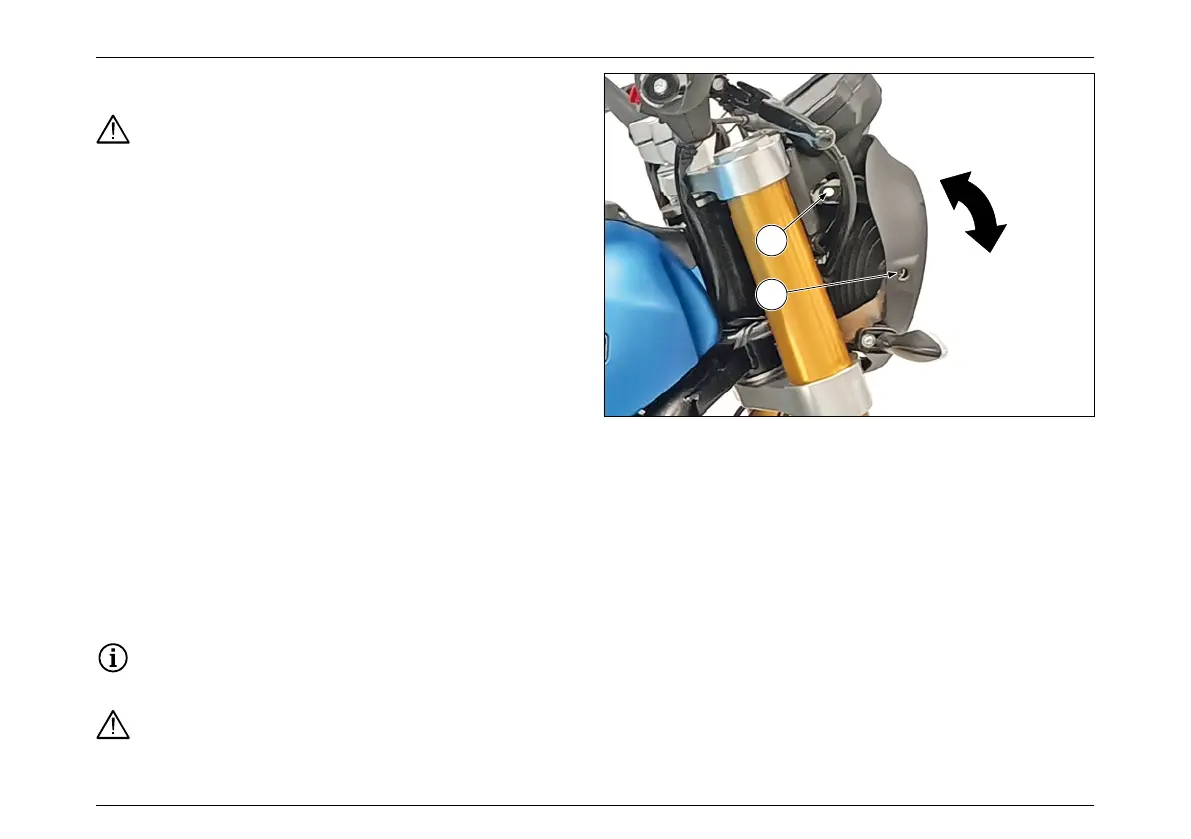

Headlight adjustment
To check the correct orientation of the front light beam,
place the vehicle at 10 m (32.8 ft) away from a vertical wall,
making sure that the ground is level. Turn on the low beam,
sit on the vehicle, and check that the light beam projected
onto the wall is slightly below the horizontal straight line
of the projector (about 9/10 of the total height). To carry
out the vertical adjustment of the light beam, position the
vehicle in running position, loosen the screws “A” and “B”
on both sides of the vehicle and manually adjust the desired
position of the light beam. Tighten the screws “A” and “B”.
Check again the correct orientation of the light beam.
Turn signals
To replace the front and/or rear turn signal lamps, position
the vehicle on the kickstand. Unscrew and remove the screw
“A” and cover “B”.
Gently press the bulb and turn it counterclockwise, then pull
the lamp out. Install a new lamp of the same type correctly.
If the reflector inside comes out of its seat, reposition
it correctly.
Make sure to have correctly inserted the lamp.
B
A
