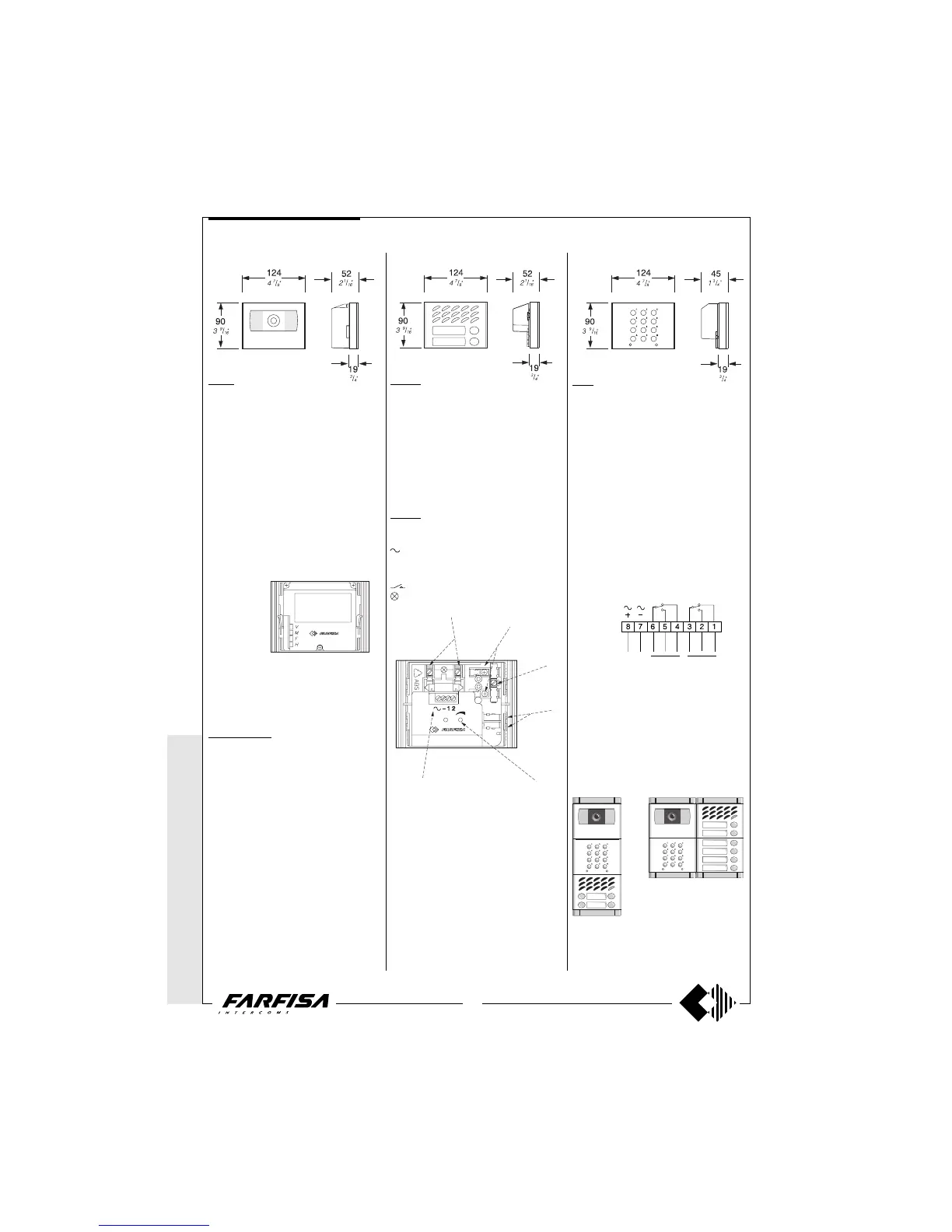

20
WITHOUT
COAX *
WITH COAX
(GB- '99)
FC52.
Access control keypad with 12 digits and 2
relays for lock release. 4 programmable ac-
cess codes for each relay. Programmable
door opening time from 1 up 99 sec. for each
relay (or bistable operation of one relay).
Acoustic confirmation for entered keys, ac-
cepted programmation and for wrong codes.
Power supply: 13VAC/DC-0.1A.
Dati tecnici
Power supply: 12Vac/dc ±10%
Stand-by current: 0.015A
Maximum current consumption: 0.1A
Contact ratings: 12VAC-5A.
Numbers of codes for relais 1: 4
Numbers of codes for relais 2: 4 or direct
activation
Activation time for each relay: from 1 to 99 sec.
(or bistable relay 1)
Operating temperature: 0° ÷ +40°C
Maximum permissible humidity: 85% RH
Terminals
1 normally closed contact of relais 2
2 normally open contact of relais 2
3 commun contact of relais 2
4 normally closed contact of relais 1
5 normally open contact of relais 1
6 commun contact of relais 1
7 ground or alternate voltage input
8 positive or alternate voltage input
Example of composition
MODY series
CAMERAS
Terminals
V video signal output
M ground
F not connected
H positive power supply input 21Vdc
MD 40C Colour.
This module includes:
- solid-state camera (CCD) with auto iris,
5.6mm fixed optics and 6 infrared-ray LED’s.
- front plate in anodized aluminium, with break-
proof transparent screen.
Note: it is to be applied to all video installation
diagrams with coaxial cable.
Technical data
Power supply 21±3Vdc
Operating current 0.4A
Video signal on 75Ω 1Vpp
Minimum illumination 2.5 lux
Sensor CCD 1/3"
Gamma characteristic 0.45
White balance auto
Horizontal frequency 15625Hz
Vertical frequency 50Hz
Lens 5.6mm; F4
Adjustable focus 0.6m ÷
∞
Standard segnale video CCIR
Operating temperature -10°÷+40°
Maximum permissible humidity 80%RH
AMPLIFIED DOOR STATIONS
MD 100. 1 button module.
It can be applied to all systems 4+1, intercom-
municating systems, and video-intercom sys-
tems with coaxial cable.
It includes electric door speaker, amplified in
the two channels, volume control of “receiver”,
“call” button and front plate in anodized alu-
minium. It can replace in many installations
module MD11 and MD30, using all the other
accessories of the Mody series.
For module installation, see the diagram on
page 32.
MD 200. 2 buttons module.
Terminals
- ground
supply 13Vac-60mA
1 receiver
2 transmitter
C call buttons common
call buttons
name-plate lamp (24V-70mA)
MD 40.
This module includes:
- solid-state camera (CCD) with auto iris,
3.6mm fixed optics and 6 infrared-ray LED’s.
- front plate in anodized aluminium, with break-
proof transparent screen.
Technical data
Power supply 21±3Vdc
Operating current 0.2A
Video signal on 75Ω 1Vpp
Minimum illumination 2 lux
Sensor CCD 1/3"
Pixel number 291000
Horizontal frequency 15625Hz
Vertical frequency 50Hz
Lens 3.6mm; F5
Adjustable focus 0.1m ÷
∞
Opening of auto-iris
Operating temperature -10°÷+40°
Maximum permissible humidity 80%RH
1 Lamp terminals
2 Button terminal board
3 Call buttons common
4 Stair light button terminals
5 External volume adjustment
6 Terminal board for audio/powering
2
3
4
5
6
1
ACCESS CONTROL KEYPAD
* MODY *
ERREP/R
* PROJECT *
PUNTO
VIRGOLA * S
LIM
PUSH-BUTTON PANELS
Relay 1 Relay 2
Relais 1 Relais 2
13Vac
13Vdc
