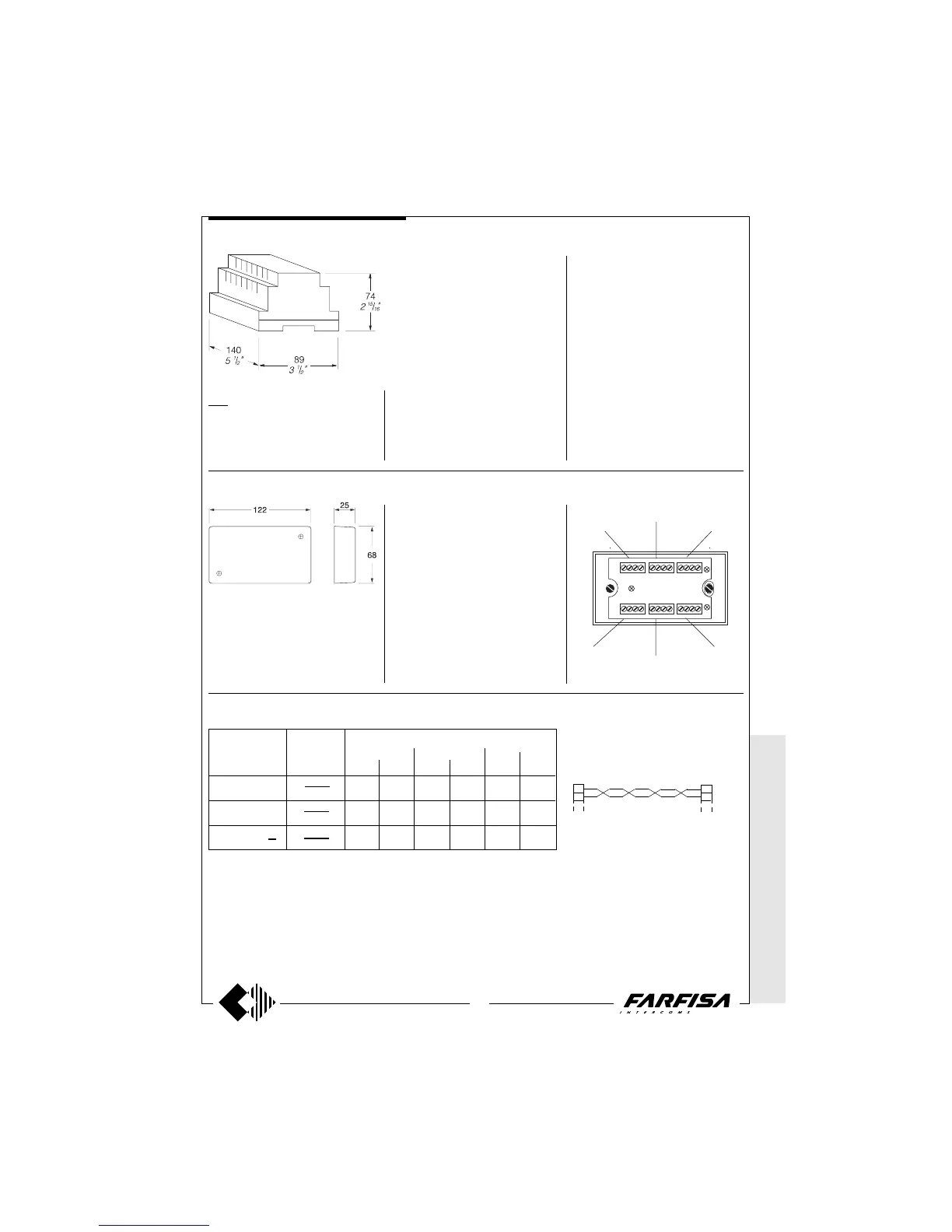

1181. Timed supply for one monitor (or two
Flat monitors) CCD camera, electric lock and
push-button lights, etc.
Note
- The power supply is not provided with fuses,
but all of its outputs are protected against
overloading and short circuiting by tempera-
ture sensors. To reset the power supply, pow-
er must be cut off for about one minute and
can be restored after having eliminated the
defect.
- The power supply must be installed in a dry
place and can be fixed on DIN bar or on a wall
by using the expansion plugs.
Floor distributors
DV2D. Distributor at 2 outputs.
DV4D. Distributor at 4 outputs.
This unit allows video signal distribution for
the 4+1 system without coaxial cable. They
can be wall mounted or recessed in a junction
box.
Technical data
Power supply 21±2Vdc
Operating current 60mA
Max input video signal 2Vpp
Insertion loss 0.8dB
Bandwidth >5MHz
Terminals
H Input / output positive power supply
F Ground
X and Y Input / output video signal
Note
The two 150Ω resistors, included with the
product, must be applied to connectors Y-F
and X-F on the last distributor only.
Leave other terminals free.
WIRE CROSS SECTION
Distance
Note.
For distances longer than 100m (330ft) max
200m (660ft), use twisted pair wire for
conductores X and Y.
X
3
Y
3
H F
X
4
Y
4
H F
F H Y X
F H Y X
F H Y
2
X
2
F H Y
1
X
1
to monitorto monitor
to monitor
to monitor
X
Y
X
Y
to following distributors
from previous distributors
* MODY * E
RREP/R *
PROJECT *
PUNTOVIRGOLA *
SLIM
Power supply
Technical data
Input voltage 127 o 230Vac
Frequency 50/60Hz
Power 48VA
Switch-ON time: 100 sec.
Operating temperature 0°÷+50°C
Maximum permissible humidity 90%RH
Housing DIN 8 modules A
Weight 0.95Kg.
Terminals
A Output voltage 13Vac for:
-name plate light, exchangers and climatized
camera (continuous service 0.6A)
-electric door lock and bells (intermittent
service 1A)
- Ground for AC power supply
F Ground for DC power supply
H
Continuous output 21Vdc-1A
(timed operation)
D Alternating voltage output for the common of
pushbutton 13Vac-0.5A (intermittent service)
660 Ft
AWG
22
16
16
50m
S mm²
0.35
0.5
0.75
165 Ft
AWG
22
20
18
100m
S mm²
0.35
0.75
1
330 Ft
AWG
22
18
16
200m
S mm²
0.35
1
1.5
Installation notes
For correct installation of the video intercom
systems, the following regulations have to be
respected:
- The wires of the system have to run in a
channelling separated from the mains.
- Use section wires adequate to the maximum
distance of the system.
- Link the - (minus) and F terminals directly on
the external station, and not on the power
supply. Both the wires are needed, to avoid
possible hum on the sound channels.
Diagram lines
Terminals articles
X - Y
10 - D - 1 - C
F - H - A - S -
