PV 2111. Two-colour flat monitor with two
buttons, one for control switch ON and one for
door lock release, audio-video privacy, elec-
tronic microphone, electronic modulated call
note, terminal board for the connection to the
wall-bracket. It can be installed on the wall
(with no built-in) by using the art.WB2111.
WB 2111. Wall-bracket for the PV2111 moni-
tor. It includes a terminal board for connec-
tion to the system.
Technical data
Power Supply 18÷24Vdc
Operating current 0.35A
Video tube 4" FLAT CRT
Television standard 625 lines
Horizontal frequency 15625Hz
Vertical frequency 50Hz
Bandwidth >5MHz
Balanced video signal
Starting up time 2÷4 sec.
Operating temperature 0°÷+50°C
Max. permissible humidity 90%RH
Terminals
H Positive power supply input 18÷24Vdc-
0.35A
F Ground
X and Y Video signal input
10 Call, audio reception/transmission,
door releasing
4 Control switch ON - button
1283. Back-box for monitor PV1211.
Place the box on the wall at a height of about
1.5m (4' 11") from the floor keeping the front
edges flush-mounted and vertical to the fin-
ished plaster.
Monitors series PuntoVirgola
PV 1211. Two-colour monitor with traditional
tube with two buttons, one for control switch
ON and one for door lock release, audio-
video privacy, electronic microphone, elec-
tronic modulated call note, terminal board for
the connection to the wall-bracket. It can be
installed on the wall by using the art.WB1211
and the back-box art.1283.
WB 1211. Wall-bracket for the PV1211 moni-
tor. It includes a terminal board for connec-
tion to the system.
Technical data
Power Supply 18÷24Vdc
Operating current 0.6A
Video tube 4.5" CRT
Television standard 625 lines
Horizontal frequency 15625Hz
Vertical frequency 50Hz
Bandwidth >5MHz
Balanced video signal
Starting up time 5÷7 sec.
Operating temperature 0°÷+50°C
Max. permissible humidity 90%RH
Terminals
H Positive power supply input 18÷24Vdc-
0.6A
F Ground
X and Y Video signal input
10 Call, audio reception/transmission,
door releasing
4 Control switch ON - button
* MODY *
ERREP/R
* PROJECT *
PUNTO
VIRGOLA * S
LIM

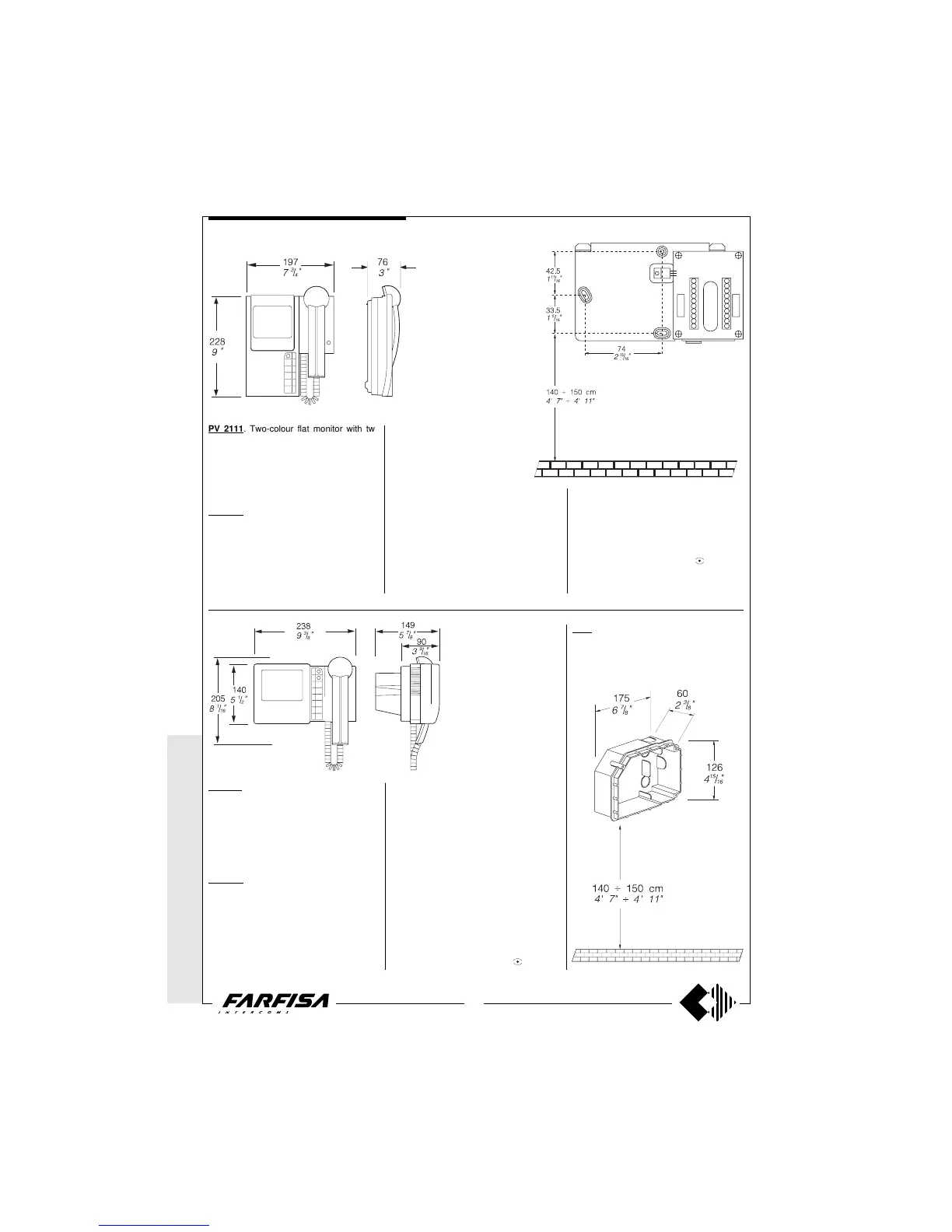

Measures for the installation of the
wall bracket WB2111 to the wall, and
recommended height from the floor.
4+1 VIDEO-INTERCOM SYSTEM
