WITHOUT
COAX *
WITH COAX
57
(GB- '99)
* MODY *
ERREP/R
* PROJECT *
PUNTO
VIRGOLA *
SLIM

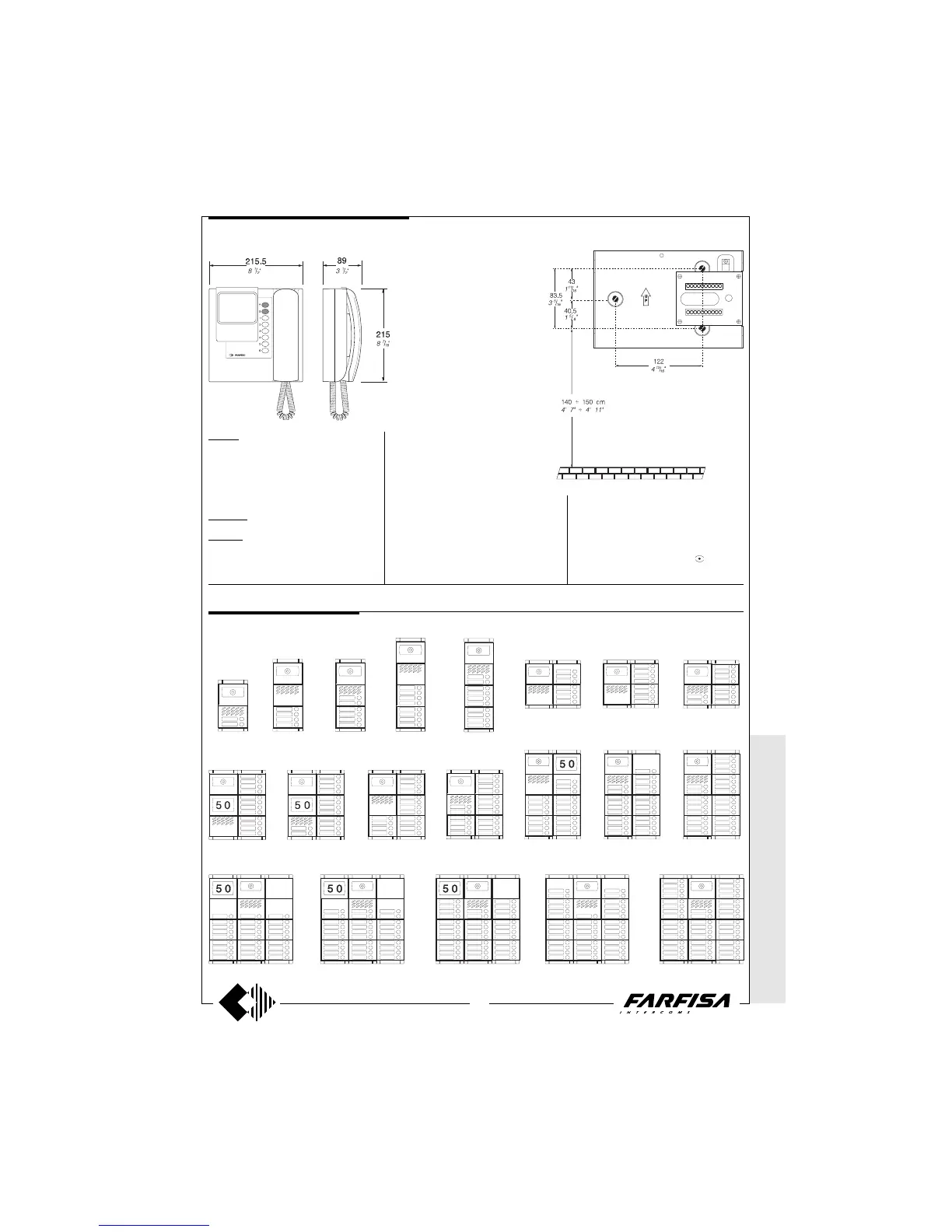

MODY series Example of Mody push-button panel installations.
PUSH-BUTTON PANELS
1 row push-button
2 call buttons 4 call buttons 6 call buttons 8 call buttons 10 call buttons
12 call buttons 14 call buttons 16 call buttons 18 call buttons 19 call buttons 23 call buttons 26 call buttons
10 call buttons8 call buttons7 call buttons
27 call buttons 30 call buttons 34 call buttons 37 call buttons 42 call buttons
PT5111. Two-colour flat monitor with two
buttons, one for control switch ON and one for
door lock release, audio-video privacy, elec-
tronic microphone, electronic modulated call
note, terminal board for the connection to the
wall-bracket. It can be installed on the wall
(with no built-in) by using the art.WB5111.
PT5111W. Colour: white.
WB5111. Wall-bracket for the PT5111 and
PT5111W monitors. It includes a terminal
board for connection to the system.
Terminals
H Positive power supply input 18÷24Vdc-
0.35A
F Ground
X and Y Video signal input
10 Call, audio reception/transmission,
door releasing
4 Control switch ON - button
Monitors series Project
Measures for the installation of the
wall bracket WB5111 to the wall, and
recommended height from the floor.
Technical data
Power Supply 18÷24Vdc
Operating current 0.35A
Video tube 4" FLAT CRT
Television standard 625 lines
Horizontal frequency 15625Hz
Vertical frequency 50Hz
Bandwidth >5MHz
Balanced video signal
Starting up time 2÷4 sec.
Operating temperature 0°÷+50°C
Max. permissible humidity 90%RH
4+1 VIDEO-INTERCOM SYSTEM
