WITHOUT
COAX *
WITH COAX
38
(GB- '99)

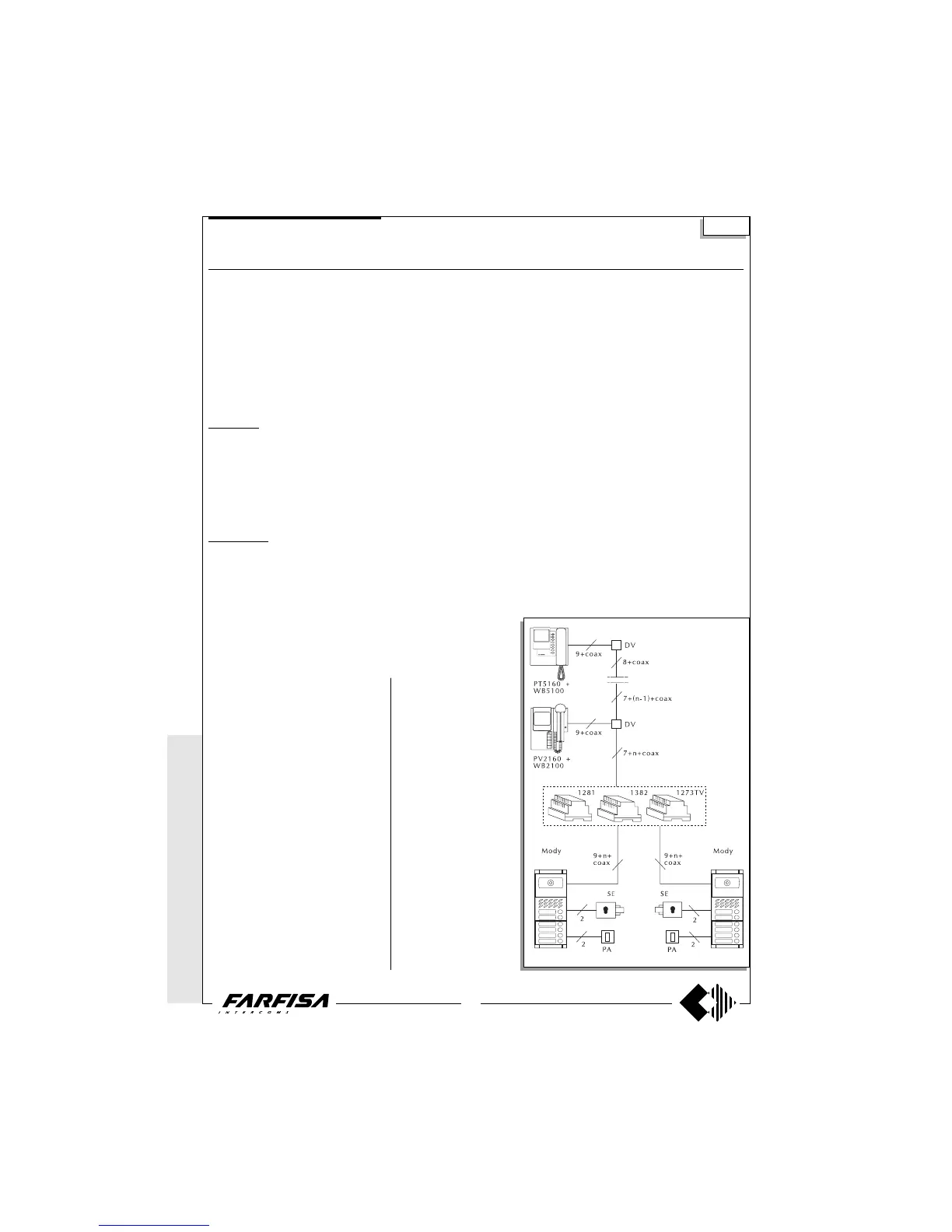

VIDEO-INTERCOM SYSTEM WITH TWO AUTOMATICALLY SWITCHED VIDEO ENTRANCES
Diagram ref. Q.ty Article Description
VC ... PT 5160 + WB 5100 Monitor FLAT + wall bracket
PT 5660 + WB 5600 + 1283 Monitor + wall bracket + back box
PT 5860 + WB 5600 Monitor reflex + wall bracket
PV 1260 + WB1200 + 1283 Monitor + wall bracket + back box
PV 2160 + WB 2100 Monitor FLAT + wall bracket
DV ... DV2-4 Video floor distributors
AL 1 1281 Stabilized power supply
TR 1 1382 Audio-Video Timer
DS 1 1273TV Exchanger
PA 2 ** Door release button
SE 2 ** Electric door lock (12Vac-1A)
External door station
Mody series (see pages 16, 17, 18, 19 for the composition)
1 row 2 row
UR 2 MD40 MD40 Camera module
PB ... MD72-73-74 MD72-73-74 Module frames and with back box
2 MD10-11-12 MD10-122-124 Modules for electric door speaker
... MD21 ÷ 24 MD222 ÷ 228 Button modules
... MD20 - 50 MD20 - 50 Blank and number modules
2 MD82 ÷ 812 MD82 ÷ 812 Hood covers
2 MD92 ÷ 912* MD92 ÷ 912* Rain shelters
PE 2 MD30 MD30 Electric door speaker
ErreP/R series (see pages 21, 22 for the composition)
UR 2 1385R Camera unit
PB 2 RP... Push-button panel
... R... Push-button panel
2 290R/2 ÷ 290R/38 Rain shelters
PE 2 337C Electric door speaker
...According to the number of users.
* The protective shelters are to be used instead
of back boxes and decorative shields.
** Articles not provided by ACI Farfisa.
Si 5250
* MODY *
ERREP/R
* PROJECT *
PUNTO
VIRGOLA * S
LIM
One and multi-way systems
Note
- The A and F terminals of article 1382 can be
connected to a maximum of 6 lamps (24V-3W).
If this number is exceeded, one or more 12V
transformers and an proper power will be re-
quired (type PRS210).
- To have the control switch ON for the 2 video
entrances it is necessary to make the dashed
line connections and use WB5160, WB5660,
WB2160, WB1260 wall brackets.
- The wall brackets are configurated to work
without the audio privacy, to restore it the
jumper W1 must be moved (see pages 3, 5, 7,
9 and 10).
- In this system the control switch ON from the
monitors can interrupt a running communica-
tion, for this reason it is advisable to interrupt it
by means of a relay art.1471 (see page 24).
- For the cross section of the wires see the
table on page 26.
- To connect the coaxial cable see pages 26
and 27.
For one-way systems or video kits of the
Mody series, connect the coaxial cable di-
rectly to the monitor wall bracket, without using
the DV floor video distributor.
Working instructions
It is similar to the basic system
described on page 28, but with
the following variations:
- the audio-video operations
and the door lock release are
automatically switched at the
time of the call or with the con-
trol switch ON.
