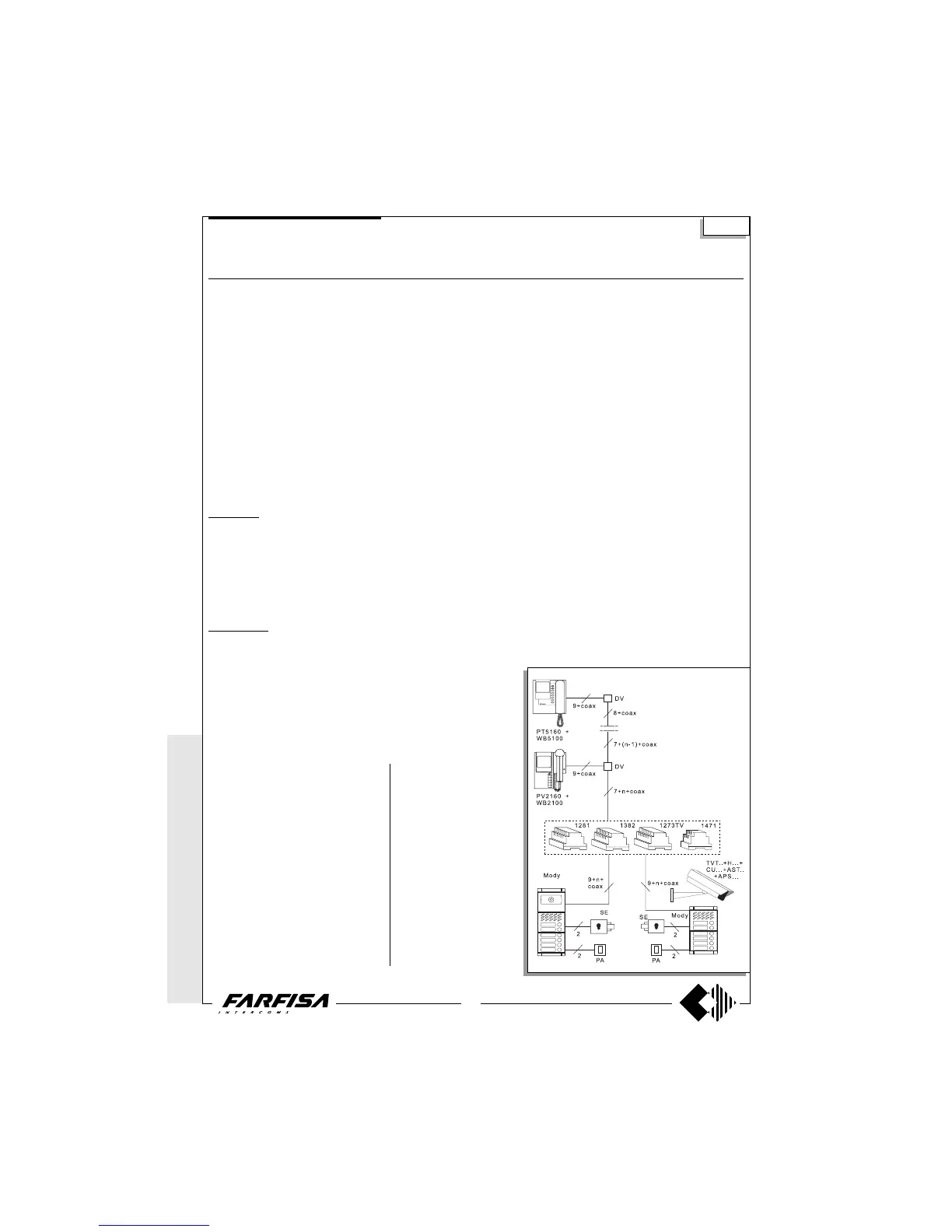

VIDEO INTERCOM SYSTEM WITH TWO AUTOMATICALLY SWITCHED ENTRANCES, ONE WITH AN OUTDOOR
OR INDOOR SURVEILLANCE CAMERA
Diagram ref. Q.ty Article Description
VC ... PT 5160 + WB 5100 Monitor FLAT + wall bracket
PT 5660 + WB 5600 + 1283 Monitor + wall bracket + back box
PT 5860 + WB 5600 Monitor reflex + wall bracket
PV 1260 + WB1200 + 1283 Monitor + wall bracket + back box
PV 2160 + WB 2100 Monitor FLAT + wall bracket
DV ... DV2-4 Video floor distributors
AL 1 1281 Stabilized power supply
TR 1 1382 Audio-Video Timer
DS 1 1273TV Exchanger
IN 1 1471 Relay unit
PA 2 ** Door release button
SE 2 ** Electric door lock (12Vac-1A)
External door station
TE 1 TVT... Surveillance camera
1 H... Lens with or without auto-iris
1 CU... Climatized housing for outside
1 AST.. Jointed bracket for interior or housing
1 APS... Power supply for camera
LL 1 ** Lamp with maximum power of 800W
Mody series (see pages 16, 17, 18, 19 for the composition)
1 row 2 row
UR 1 MD40 MD40 Camera module
PB ... MD72-73-74 MD72-73-74 Module frames and with back box
2 MD10-11-12 MD10-122-124 Modules for electric door speaker
... MD21 ÷ 24 MD222 ÷ 228 Button modules
... MD20 - 50 MD20 - 50 Blank and number modules
2 MD82 ÷ 812 MD82 ÷ 812 Hood covers
2 MD92 ÷ 912* MD92 ÷ 912* Rain shelters
PE 2 MD30 MD30 Electric door speaker
ErreP/R series (see pages 21, 22 for the composition)
UR 1 1385R Camera unit
PB 2 RP... Push-button panel
... R... Push-button panel
2 290R/2 ÷ 290R/38 Rain shelters
PE 2 337C Electric door speaker
... According to the number of users.
* The protective shelters are to be used in-
stead of back boxes and decorative shields.
** Articles not provided by ACI Farfisa.
Note
- The A and F terminals of article 1382 can be
connected to a maximum of 6 lamps (24V-3W).
If this number is exceeded, one or more 12V
transformers and an proper power will be re-
quired (type PRS210).
- To have the control switch ON for the 2 video
entrances it is necessary to make the dashed
line connections and use WB5160, WB5660,
WB2160, WB1260 wall brackets.
- The wall brackets are configurated to work
without the audio privacy, to restore it the
jumper W1 must be moved (see pages 3, 5, 7,
9 and 10).
- In this system the control switch ON from the
monitors can interrupt a running communica-
tion, for this reason it is advisable to interrupt it
by means of a relay art.1471 (see page 24).
- For the cross section of the wires see the
table on page 26.
- To connect the coaxial cable see pages 26
and 27.
For one-way systems or video
kits of the Mody series, con-
nect the coaxial cable directly
to the monitor wall bracket, with-
out using the DV floor video
distributor.
Working instructions
It is similar to the basic system
described on page 28, but with
the following variations:
- the audio-video operations
and the door lock release are
automatically switched at the
time of the call or with the con-
trol switch ON.
- The surveillance camera re-
mains in function in a timed
mode.
* MODY *
ERREP/R
* PROJECT *
PUNTO
VIRGOLA * S
LIM
One and multi-way systems
