Fasep V585.2.U - Page 8

Fasep 2000 srl Rev. 1.6
Videotronic V585.2.U: User’s Manual 14 march 2022
2-3

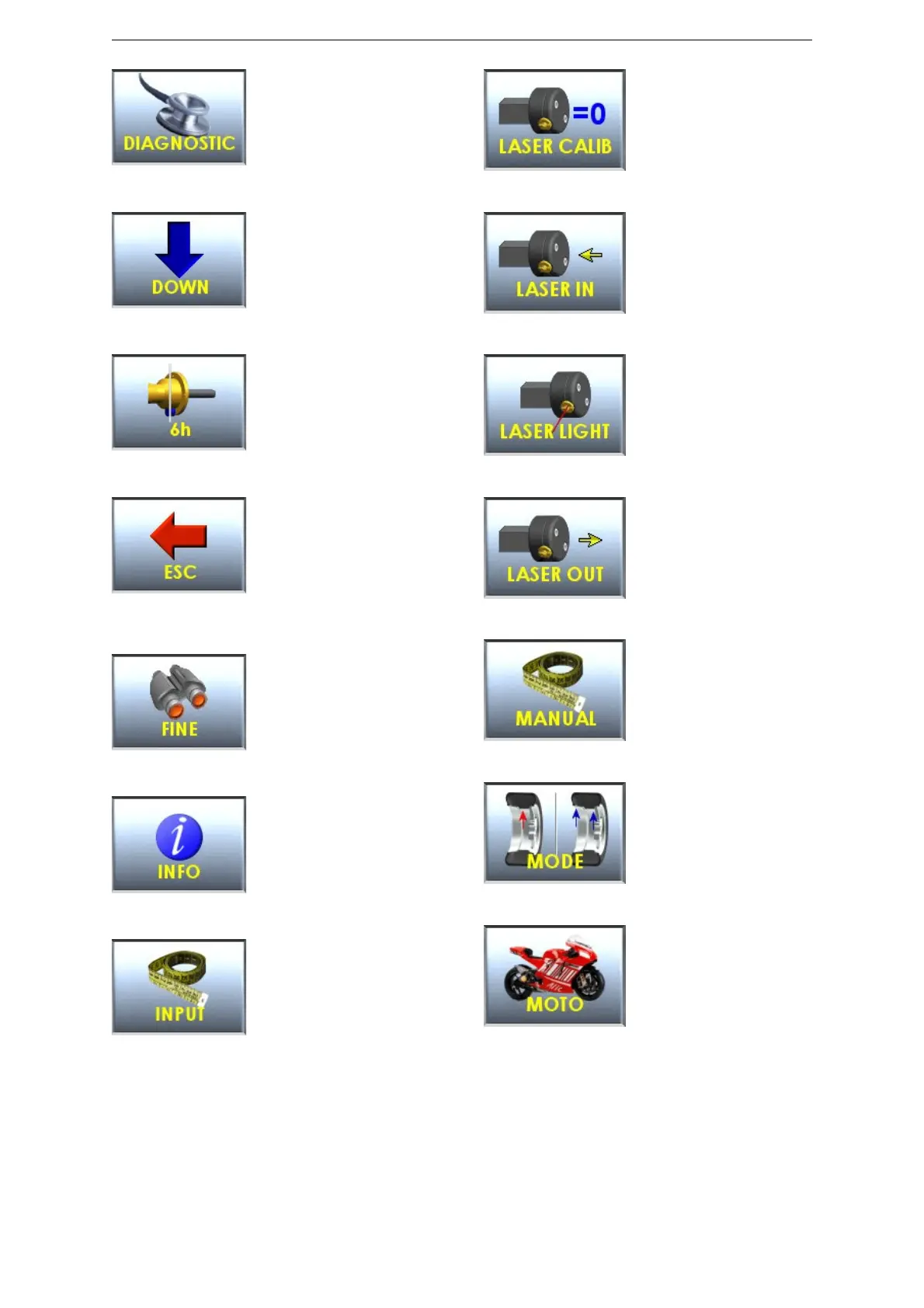

Diagnostic
Key down
Position calibration
Go to previous page
Fine resolution
Access to Information center
Access to page measures
Laser calibration
Put in the rod laser in rest
position
Start laser
Extract fully rod laser
Manul input measures
Set Dynamic/Static
Mode moto
Fig. 13
Fig. 14
Fig. 15
Fig. 16
Fig. 17
Fig. 18
Fig. 19
Fig. 20
Fig. 21
Fig. 22
Fig. 23
Fig. 24
Fig. 25
Fig. 26
