STEP 1:
INSTALL ELECTRICAL HARNESS
The installation of the electrical harness should be completed
first. This will allow power to be applied to the pump during
installation.
www.fassride.com
(866) 769.3747

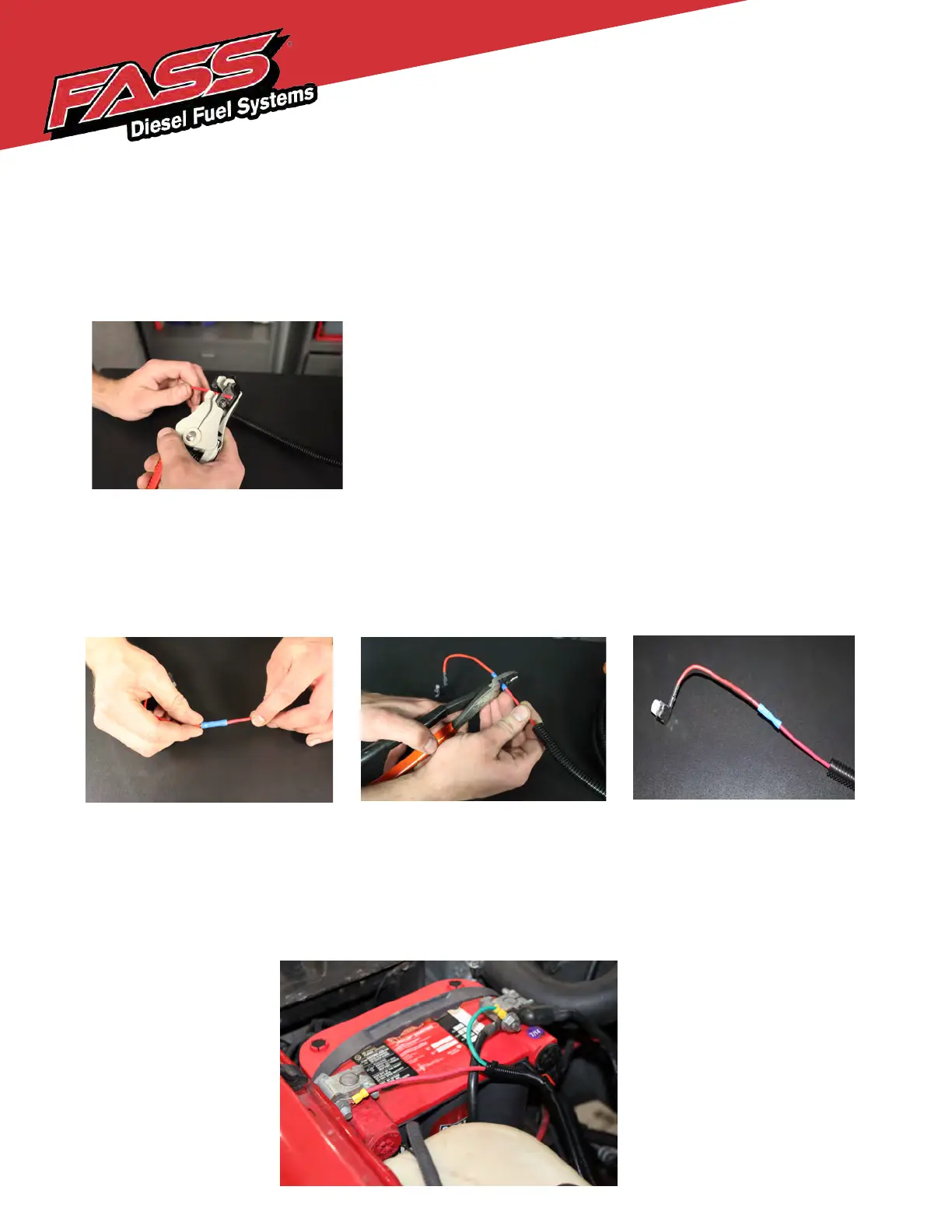

A. Using wire stripping tool remove excess insulation off the add-a-fuse and the
WH-1006-3
B. Place wire from 46405 and single red bare wire from WH-1006-3 into
butt connector. Using crimping tool connect 46405 and WH-1006-3 with
butt connector. Install 47003 to 46405 top slot (opening that is near the
spade).
C. Crimp the ring terminals to the red and green wires of the WH-1006-3 Wire
Harness. Attach red wire to the positive terminal of the battery and the green
terminal to the negative terminal. The use of a corrosion preventative on
electrical connections is recommended.
To Next Page
