Hydraulic implements controls
Lever function
L - M - N
(fig. 27-28-29)
L —
First hydraulic
implement
control.
M —
Second
hydraulic
implement
control.
N —
Third hydraulic
implement control
.
Always remember that the number of levers for hydraulic
implements controls changes upon the type of fittings, as fol-
lows:
1 lever Winch or bucket control
2 levers Rotator - bucket or jib outer ram - jib extension
rams control
3 levers Jib outer ram - jib extension rams - winch control
c X
CONTROLS TO OPERATE
THE CRANE
F 240
24

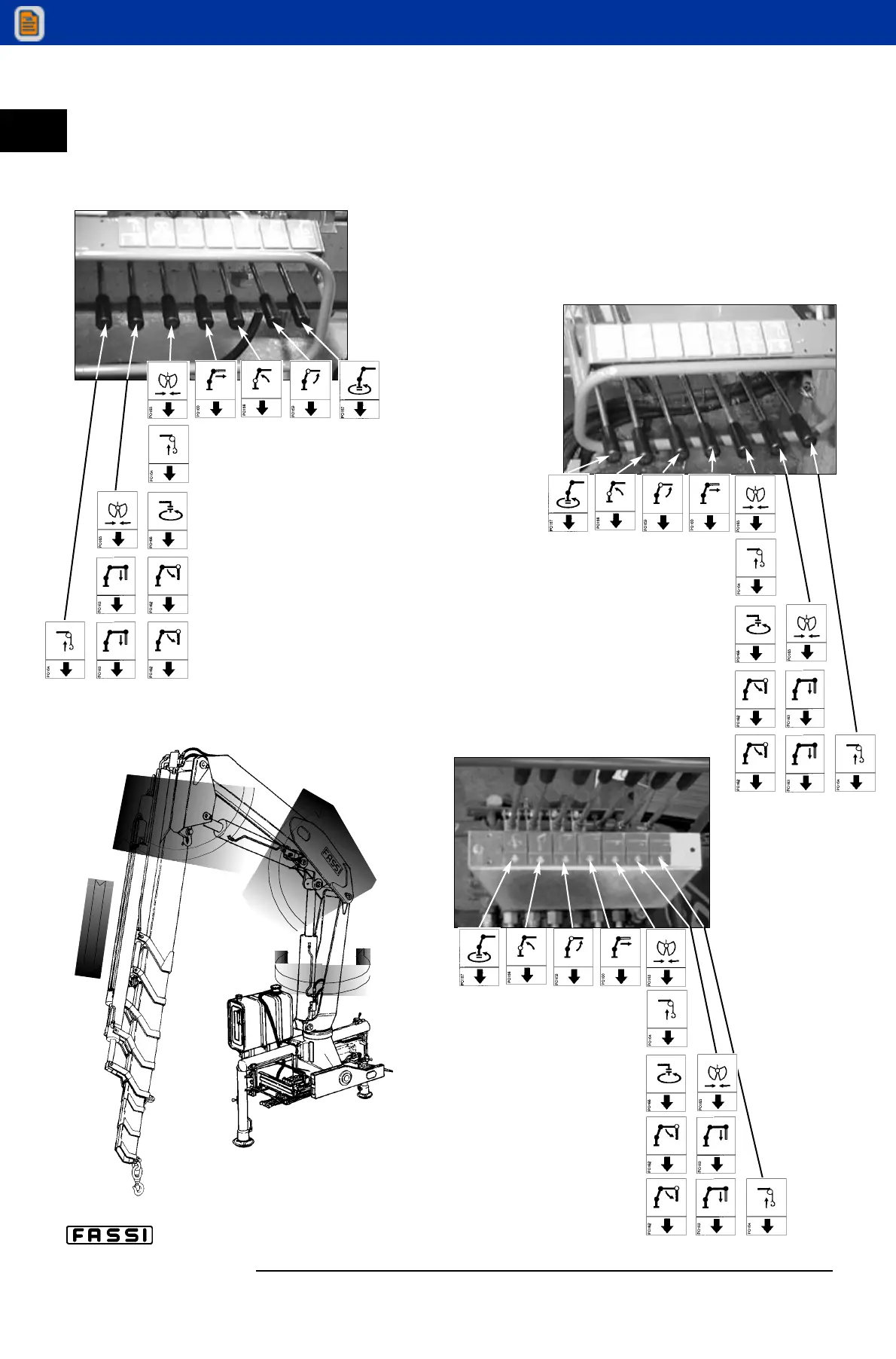

Crane controls - Lever function F - G - H - I (fig. 27-28-29)
F — Rotation control
G — Inner ram control
H — Outer ram control
I — Outer booms section rams control
fig. 29
fig. 30
FGH I
LMN
From top seat
fig. 27
Distributor side
IHGF
NML
FGH I
LMN
fig. 28
Double control side
