CONTROLS TO OPERATE THE CRANE
(!) WARNING (!)
Before operating the crane it is compulsory to set the outriggers and to
shut the safety check valve taps.

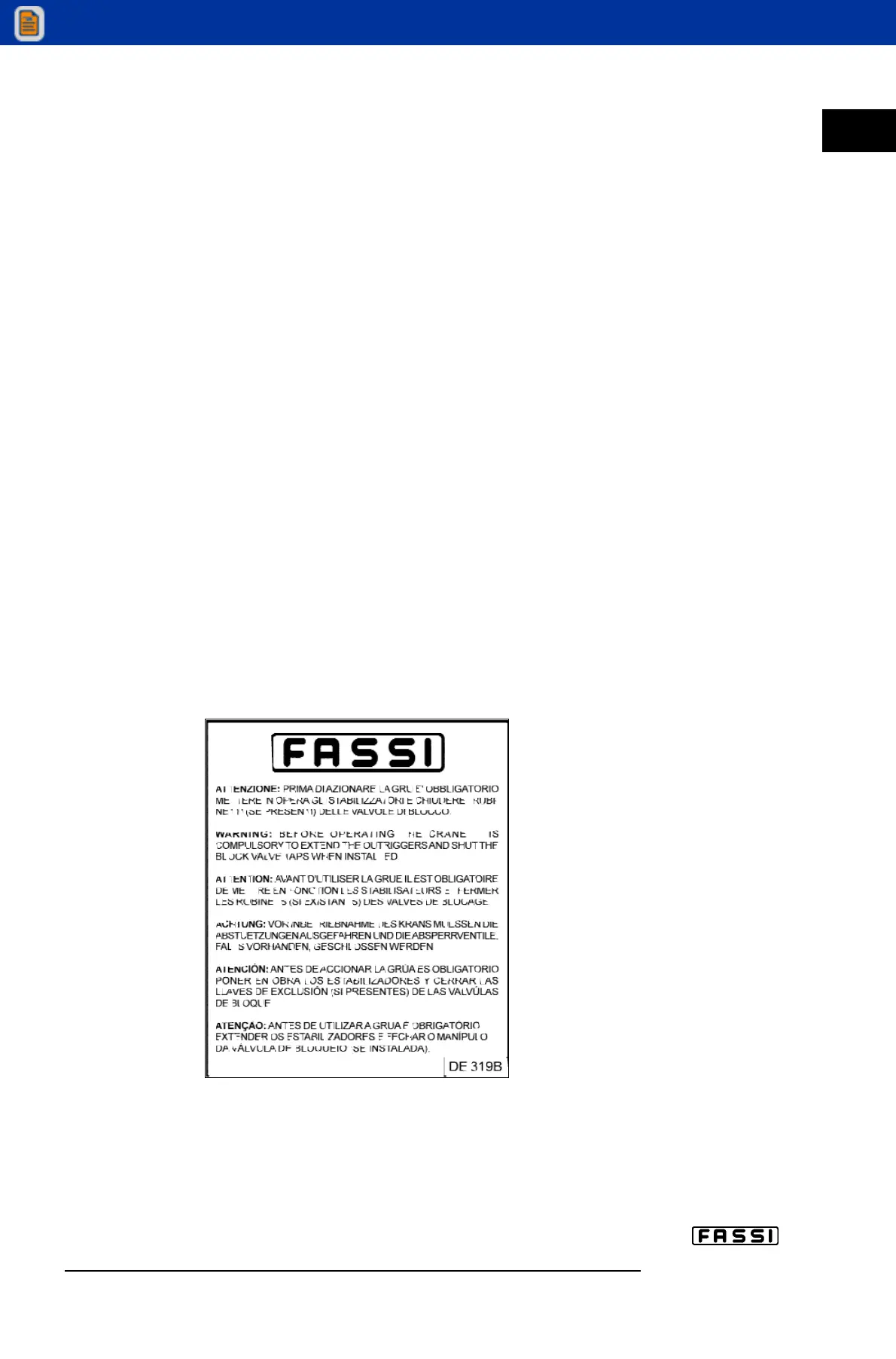

This coincides with that indicated on the plate DE319 placed on the outriggers
(Fig. 26)
(!) Operate the levers smoothly and gradually.
When carrying out simultaneous movements of two or more functions,
also related to pump flow and lever travel, it is possible that on reaching
the stroke end of a particular function, an increase in speed of the other
functions will occur.
The symbols placed over each lever define their function in relation to their
movement.
The crane and hydraulic implements can be operated with:
- manual controls (distributor and double control) placed on the base;
- manual controls (distributor) placed on the top seat;
- manual controls (distributor and double control) placed on the base and
hand-cable controls placed on the top seat.
c X
CONTROLS TO OPERATE
THE CRANE
F 240
23
fig. 26
