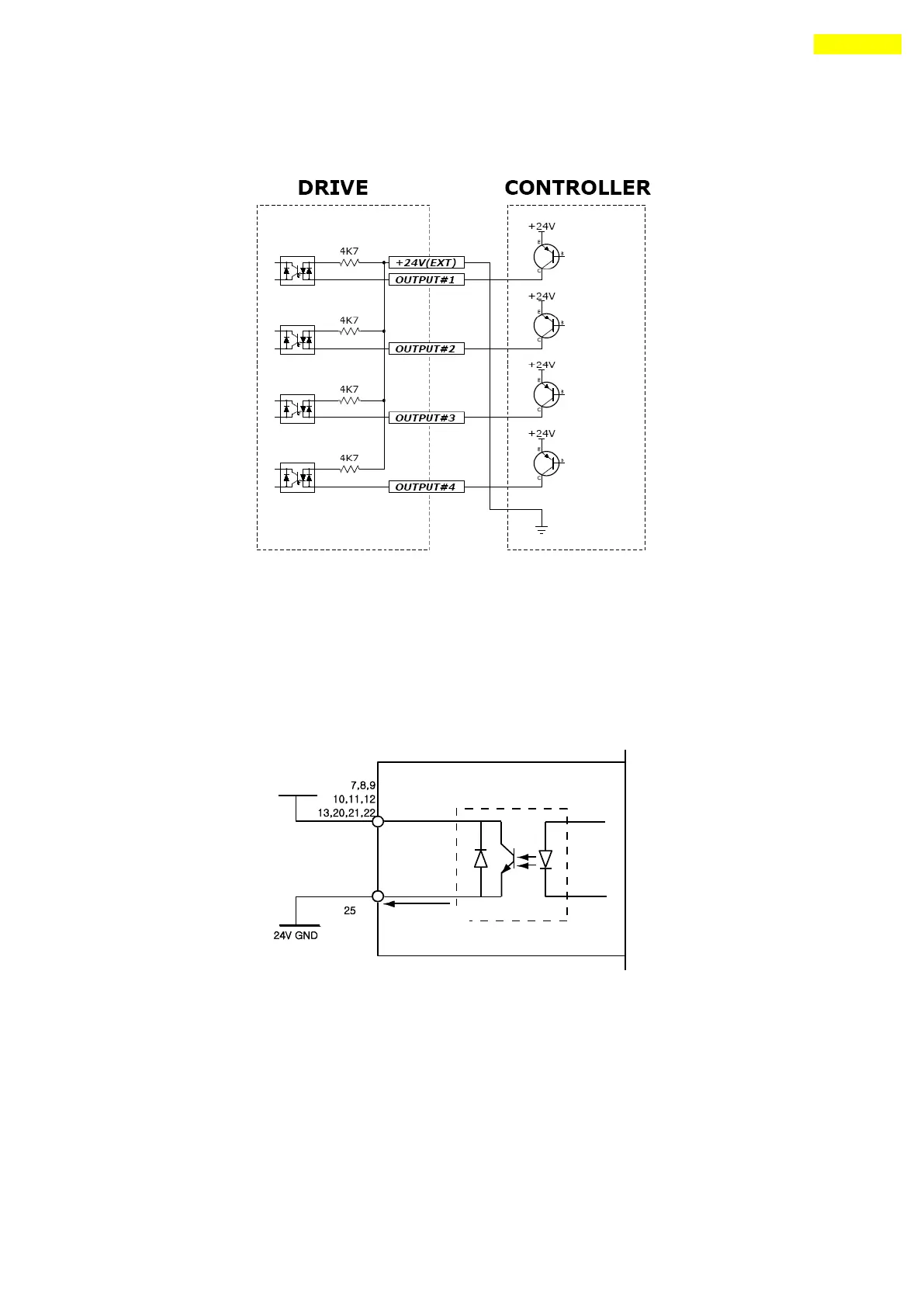

Connect PNP type Input signal
Connect the ‘+24V external’signal of drive to ‘GND’ of Controller .
2) Output Circuit
Output circuit power should be separately prepared. This may share input circuit power.
In this case, working power capacity should add output power capacity to input power
capacity.
Applied voltage and power capacity in the control output port are as follows.
·Applied voltage ≤ 30V
·Electrified current ≤ 15mA
