www.fastech.co.kr
53
10. Control I/O Signal

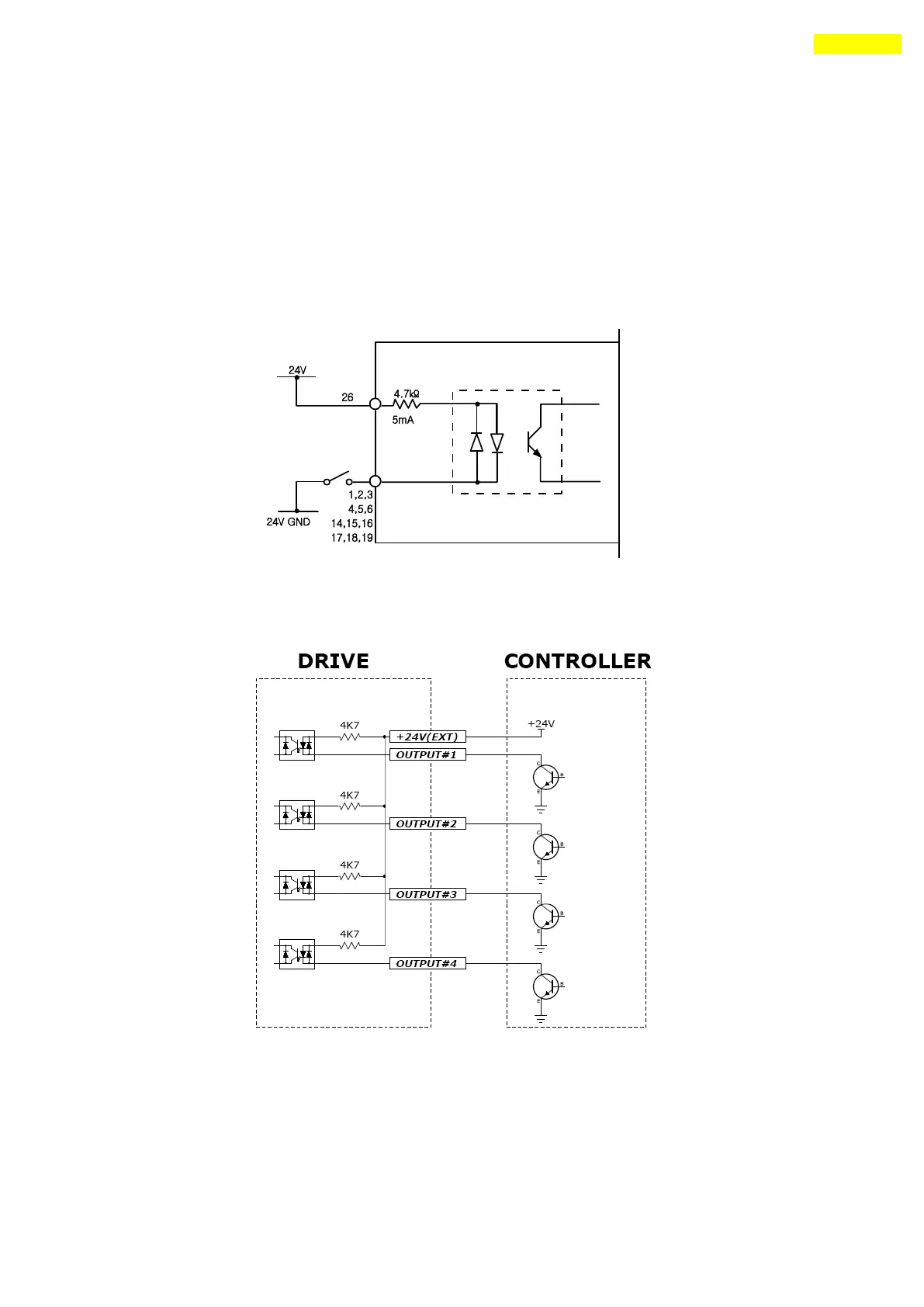

10.3Connection Circuit
All drive I/O signals are insulated by a photocoupler. The signals display the internal
photocoupler status - [ON: Conduction] and [OFF: Non- Conduction], not the signal voltage
level.
1) Input Circuit
Input circuit power of DC24V±10% (consumed current : about 5mA/circuit) should be
separately prepared.
Connect NPN type Input signal
Connect the +24V externalsignal of drive to +24V of Controller .
