Appendix

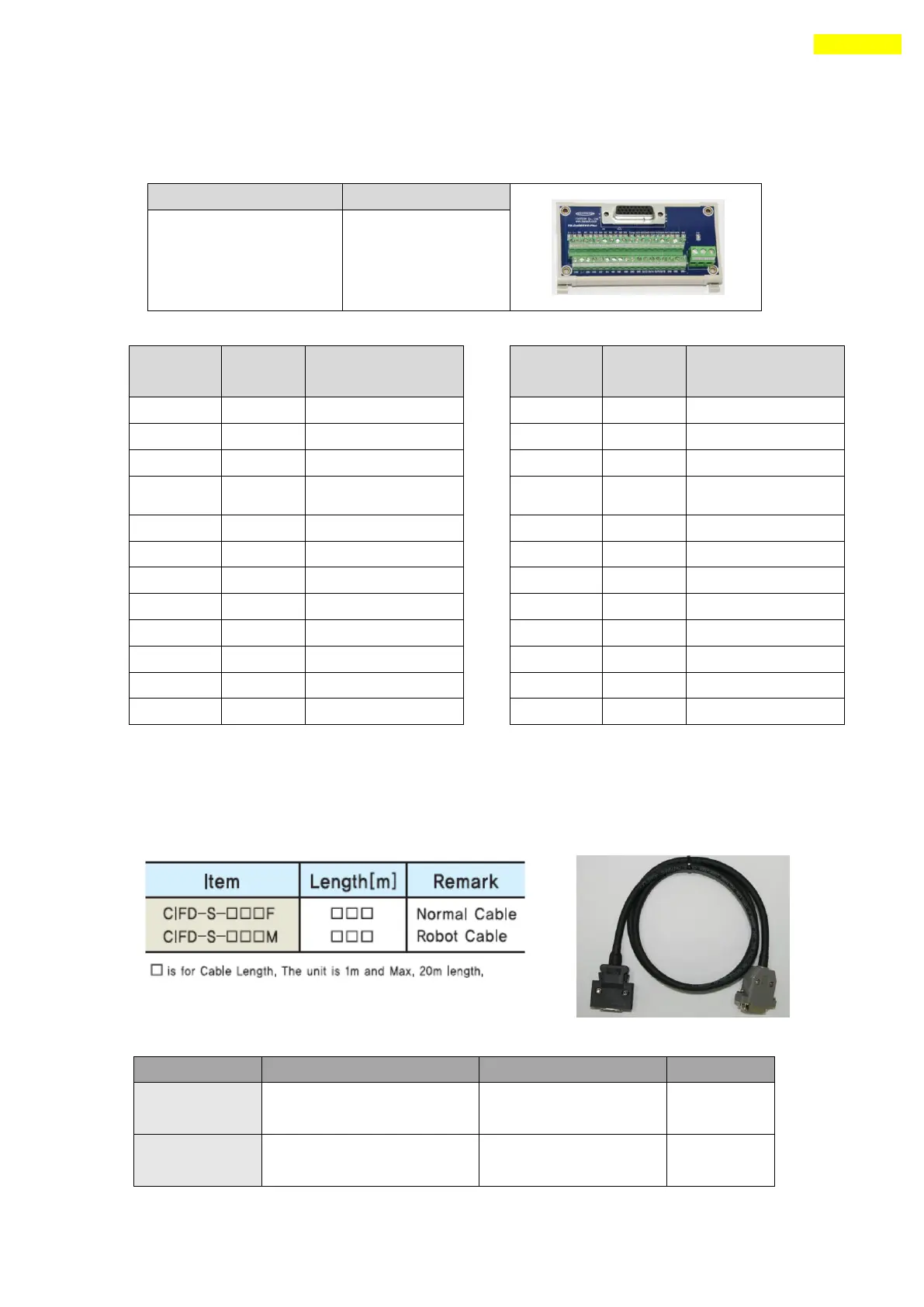

Option for Interface Board : Ezi-SERVO-PR only
■ Terminal Block
■ Extension cable for Interface Board
Available to extend the distance between the terminal block board and the drive.
The cable connection is 1:1 straight type.
Use
Item
Specification
Maker
Terminal Block
connector
Connector
DB-26 male type
Drive
connector(CN1)
Connector Housing
Backshell
10126-30000VE
10320-52AO-008
3M
3M
Type
Item
Interface (Terminal
Block) Board
TB-Plus
No. of
CN1
Signal
name
Signal name of
TB-Plus
1
Limit+
L+
2
Limit-
L-
3
Origin
ORI
4
IN1
I1
5
IN6
I6
6
IN7
I7
14
IN2
I2
15
IN3
I3
16
IN4
I4
17
IN5
I5
18
IN8
I8
19
IN9
I9
No. of
CN1
Signal
name
Signal name of
TB- Plus
7
COMP
CO
8
OUT1
O1
9
OUT2
O2
10
OUT3
O3
11
OUT4
O4
12
OUT5
O5
13
OUT6
O6
20
OUT7
O7
21
OUT8
O8
22
OUT9
O9
23
Brake+
B+
24
Brake-
B-
