FATEK FBs-CB2 - Page 202

Advanced Function Instruction
7-38
FUN 59 P
→7SG
7-SEGMENT CONVERSION
FUN 59 P
→7SG

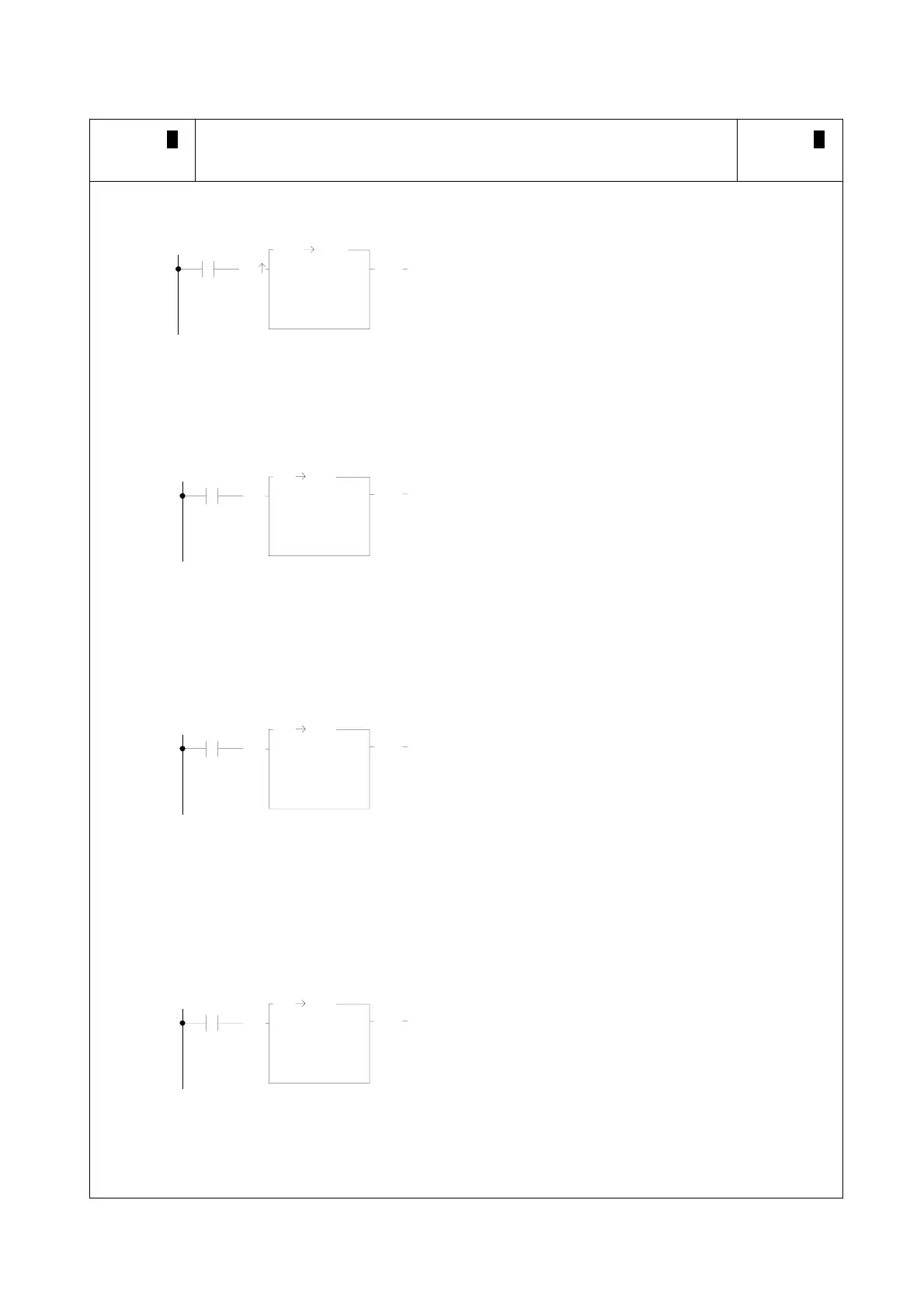

〈Example 1〉When M1 OFF→ON, convert hexadecimal to 7-Segment
M1
EN
S :
N :
0
R0
59P. 7SG
D :
R100
ERR
˙Figure left shown the conversion of first digit(nibble) of
R0 to 7-segment and store in low byte of R100, the
high byte of R100 remain unchanged.
Original R100＝0000H
R0＝0001H Î R100＝0030H（1）
〈Example 2〉When M1 ON, convert the hexadecimal to 7-Segment
M1
EN
S :
N : 1
R0
59. 7SG
D :
R100
ERR
˙Instruction at left will convert the first and the second
digit of R0 to 7-segment and store in R100.
˙The low byte of R100 stores first digit.
˙The high byte of R100 stores second digit.
R0＝0056H Î R100＝5B5FH（56）
〈Example 3〉When M1 ON, converting hexadecimal to 7-Segment
M1
EN
S :
N :
R0
59. 7SG
D :
R100
ERR
2
˙Instruction at left will convert the first, second and third
digit of R0 to 7-segment and store in R100 and R101.
˙The low byte of R100 stores first digit.
˙The high byte of R100 stores second digit.
˙The low byte of R101 stores third digit.
˙The high byte of R10 remain unchanged.
Original R101=0000H
R0=0A48H Î R100=337FH（48）
R101=0077H（A）
〈Example 4〉When M1 ON, convert hexadecimal to 7-Segment
M1
EN
S :
N : 3
R0
59. 7SG
D :
R100
ERR
˙Instruction at left will convert 1~4 digit of R0 to
7-segment and store in R100 and R101.
˙The low byte of R100 stores first digit.
˙The high byte of R100 stores second digit.
˙The low byte of R101 stores third digit.
˙The high byte of R10 stores 4
th
digit.
R0=2790H Î R100=7B7EH（90）
R101=6D72H（27）
