Advanced Function Instruction
7-44
FUN 63 P
→HEX
CONVERSION OF ASCII CODE TO HEXADECIMAL VALUE
FUN 63 P
→HEX

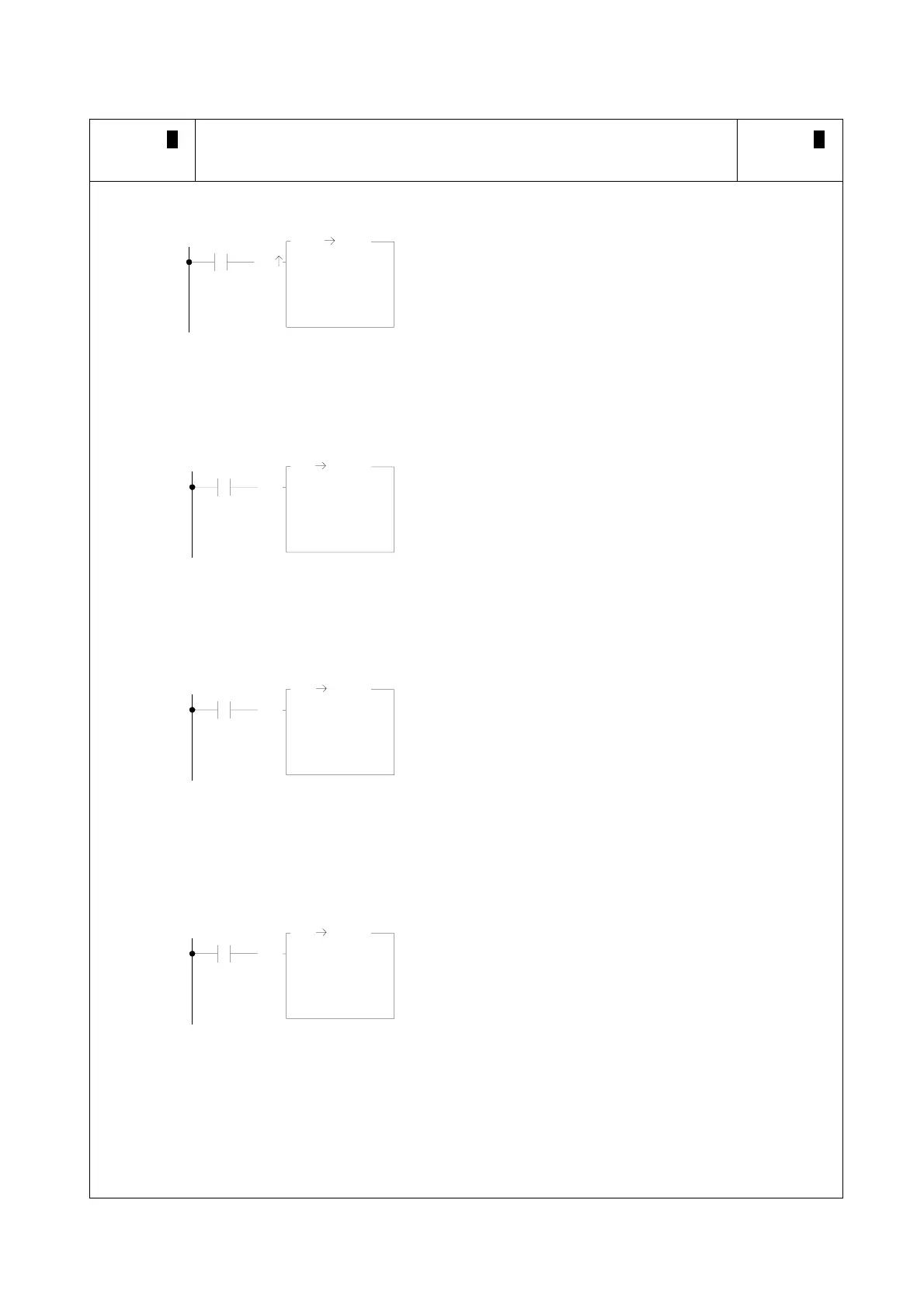

〈Example 1〉When M1 from OFF→ON, ASCII code converted to hexadecimal value.
M1
EN
S :
N :
1
R0
63P. HEX
D :
R100
˙ Converts the ASCII code of R0 into hexadecimal
value and store to nibble0 (nibble1~nibble3 remain
unchanged) of R100
Originally R100＝0000H
R0＝0039H（9）Î R100＝0009H
〈Example 2〉When M1 is ON, ASCII code converted to hexadecimal value.
M1
EN
S :
N :
2
R0
63. HEX
D :
R100
˙ Converts the ASCII code of R0 and R1 into
hexadecimal value and store to low byte (high byte
remain unchanged) of R100
R0＝0039H（9） Originally R100＝0000H
R1＝0041H（A）Î R100＝009AH
〈Example 3〉When M1 is ON, ASCII code converted to hexadecimal value.
M1
EN
S :
N :
R0
63. HEX
D :
R100
3
˙ Converts the ASCII code of R0 and R1 into
hexadecimal value and store result into R100 (nibble
3 remain unchanged)
R0＝0039H （9） Originally R100＝0000H
R1＝0041H （A）
R2＝0045H （E）Î R100＝09AEH
〈Example 4〉When M1 is ON, ASCII code converted to hexadecimal value.
M1
EN
S :
N :
R0
63. HEX
D :
R100
6
˙Converts the ASCII code of R0~R5 into hexadecimal
value and store it to R100~R101
R0＝0031H（1） Originally R100＝0000H
R1＝0032H（2） R101＝0000H
R2＝0033H（3）
R3＝0034H（4）
R4＝0035H（5）Î R100＝3456H
R5＝0036H（6） R101＝0012H
To Next Page
