Appendix 2-6

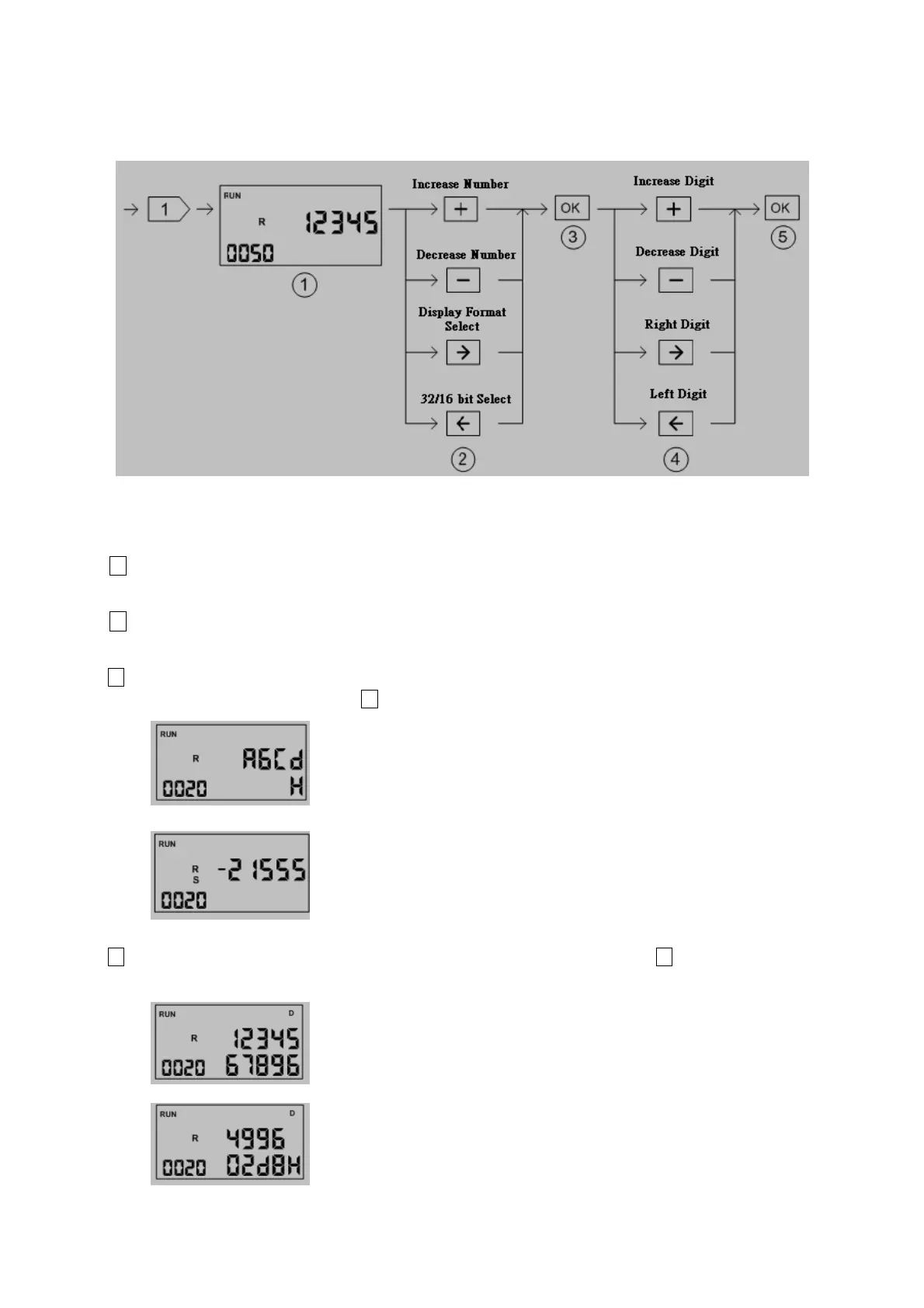

Register Status Monitoring:
○
1
Default unsigned 16 bit decimal value display
○
2
Adjust the reference number and select the display format
＋ key: Increase the reference number by one when 16 bit display format, by two
when in 32 bit display format.
－ key: Decrease the reference number by one when 16 bit display format, by two
when in 32 bit display format.
Æ key: Display format selection. There are signed decimal, unsigned decimal and hexadecimal display format can
be selected. Each depression of Æ key can change the format once.
<16 bit hexadecimal display>
<16 bit signed decimal display>
Å key: 16 bit/32 bit display format selection, Each depression of Å key will toggle the
display format between these two modes.
<32 bit unsigned decimal>
<32 bit hexadecimal display>
