3.2 Installation conditions

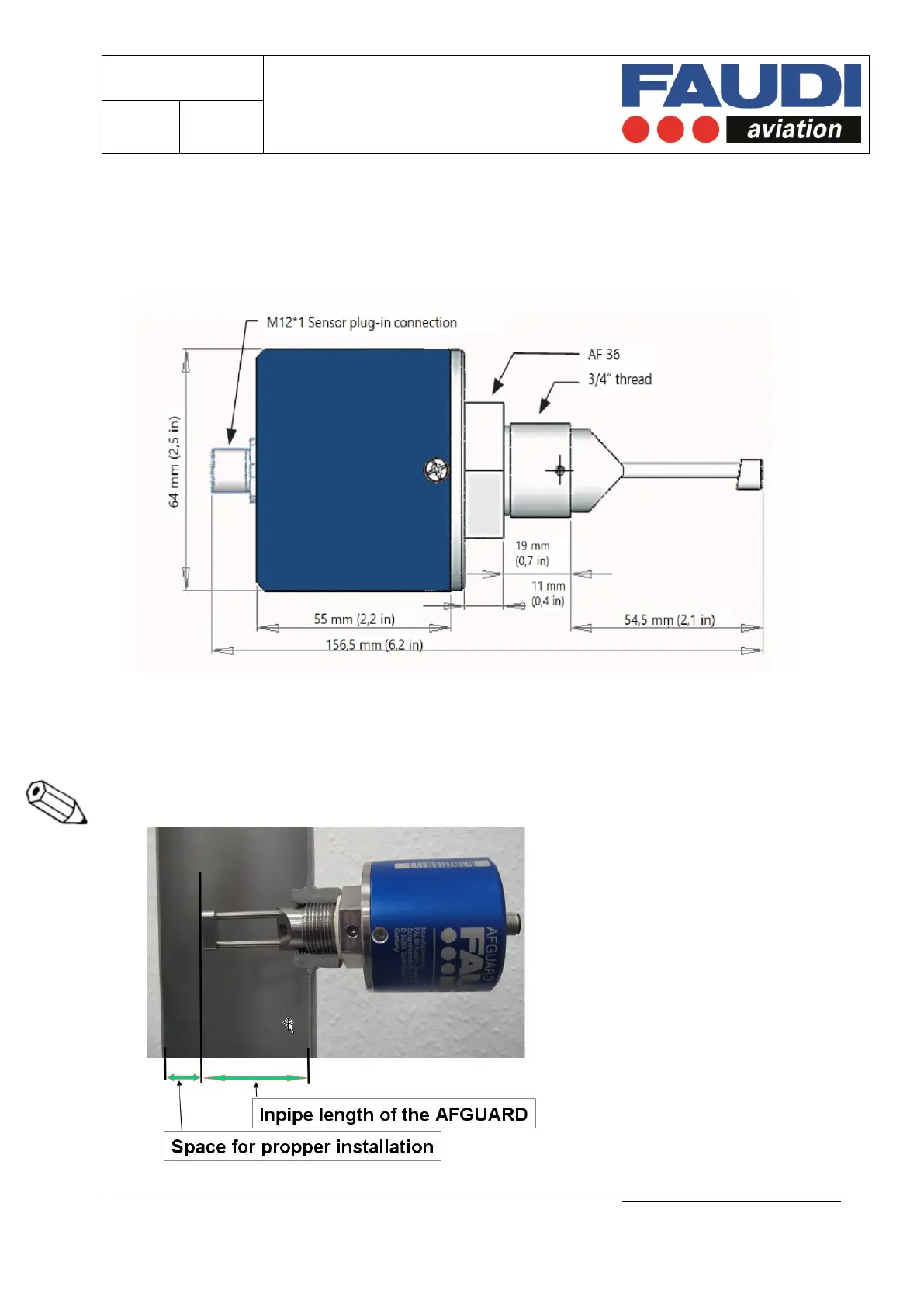

3.2.1 Dimensions
3.2.2 Mounting Position
The AFGUARD
®
must be mounted horizontally. Also check the drawing on page 13. Do
not mount the AFGUARD
®
upside down. Make sure that there is enough space inside the
pipe to prevent contact between
the rear wall and the mirror
during assembly – space for
proper installation.
