Do not touch the optics or mirror to avoid damaging it.
3.3 Thread for AFGUARD
®
installation
The AFGUARD
®
uses special threads to be weld into the pipe section. Threads are available
in Stainless steel and Aluminium.
Ensure to only use FAUDI-Aviation threads as they have been specially designed for that
purpose. Standard threads do not work with the AFGUARD
®
.
Welding instructions are part of each socket delivery.
3.3.1 Installation location
Select the installation location so that there is easy access for future checks and service
work.
Make sure that the AFGUARD
®
and related assemblies are secured safely and vibration-

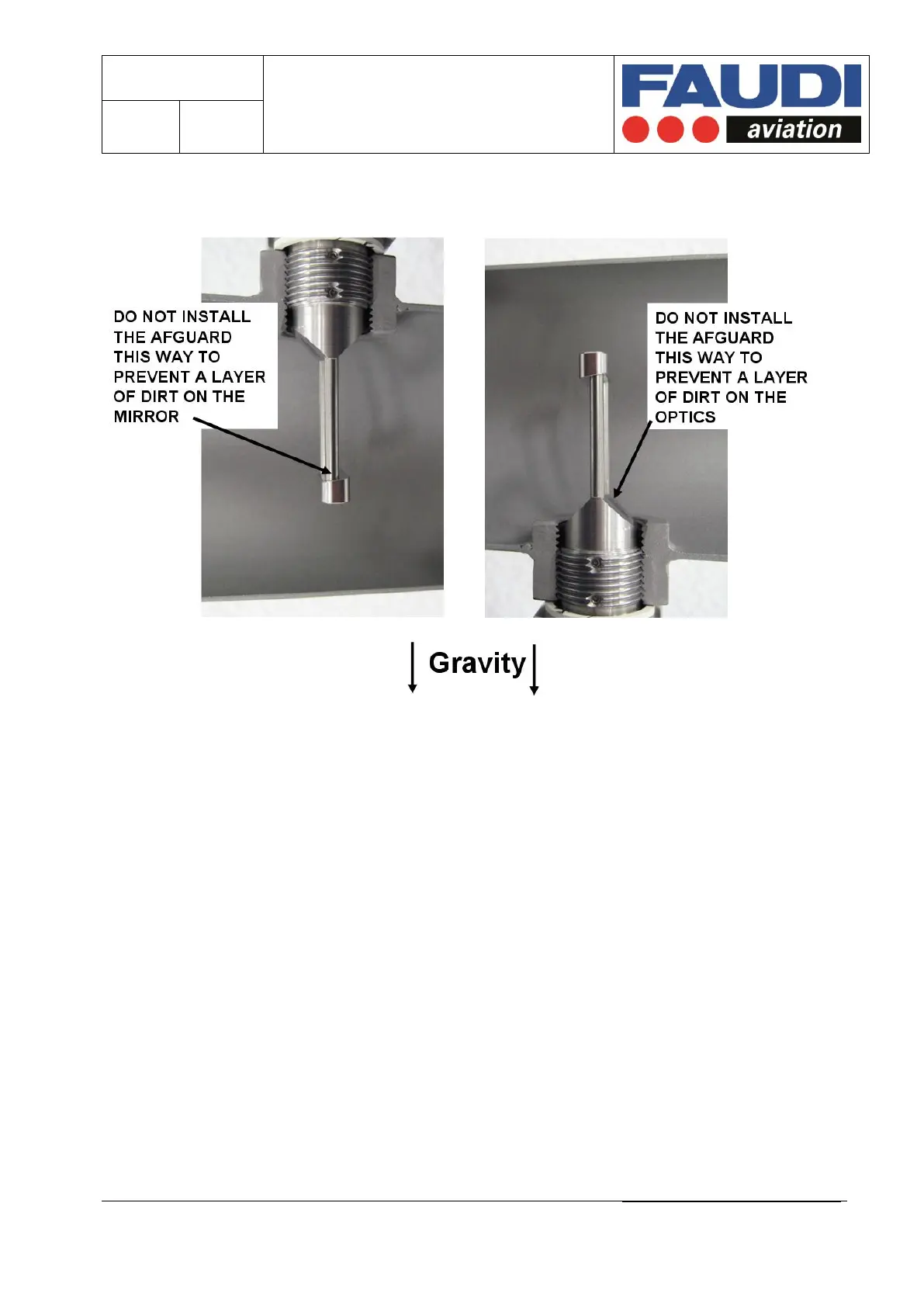

free. FAUDI Aviation would be happy to provide a good, picturized guideline on how to select
a proper place for the installation of the AFGUARD
®
. Installation itself should be carried out
by trained technicians, most probably by Trained Installers or Certified Installers.
