FBD 564 - Refrigeration System

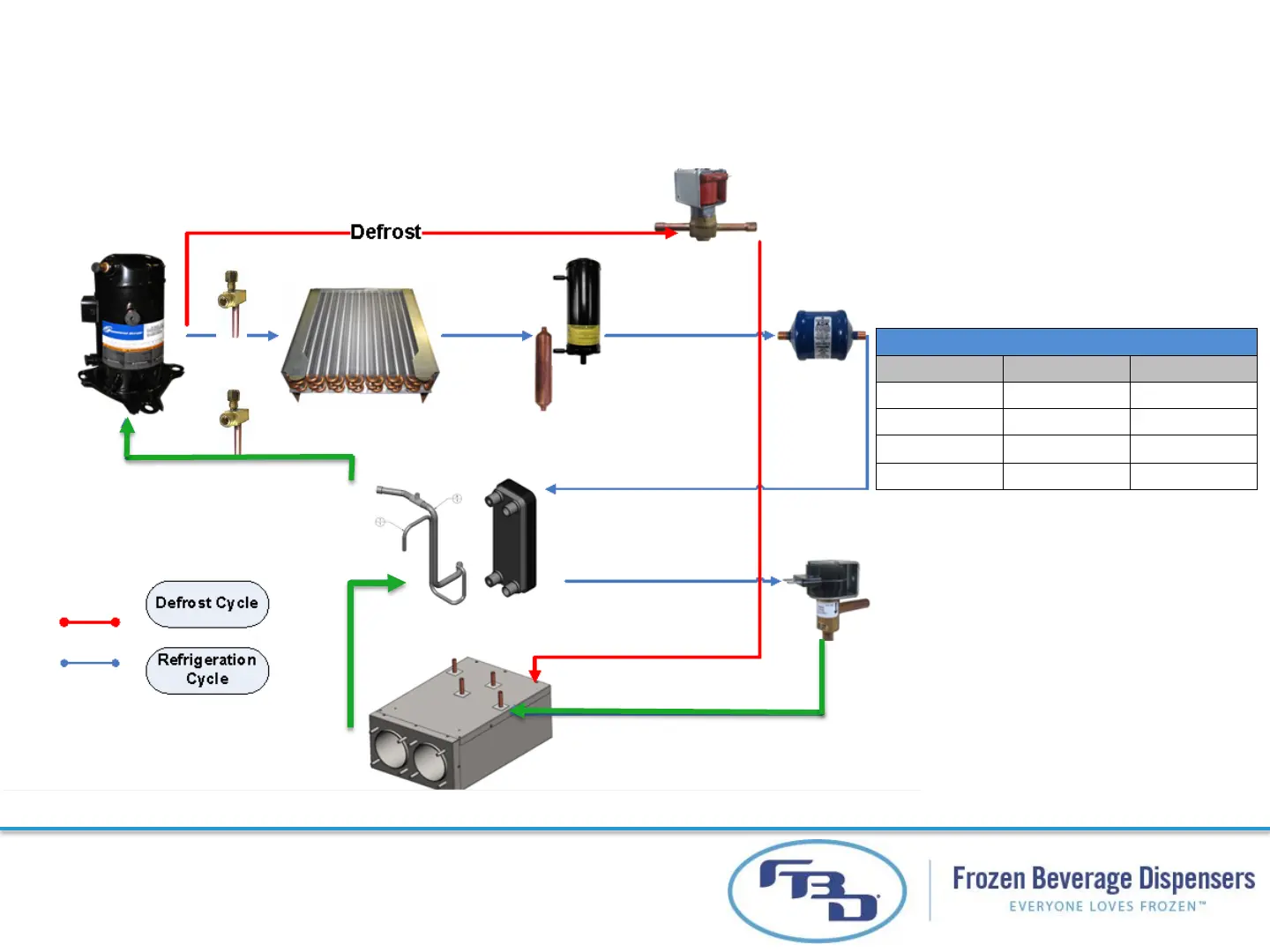

Refrigeration System
24
Receivers
Filter/Dryer
Condenser
Access Valve
Compressor
Hot Gas Valve
Expansion Valve
Cold Pack (Evaporator)
Heat Exchanger
Refrigeration Operation Pressures [Psig]
Evaporator Discharge Suction
One Barrel 250 - 275 28-35
Two Barrels 250 - 275 40-45
Thress Barrels
250 - 275 45-52
Four Barrels 250 - 275 48-55
