11. DIAGRAMS AND SCHEMATICS
11.1 Mounting Templates
To permanently secure the dispenser to a countertop, use the provided mounting diagrams (Figures 11.1 - 11.3) to drill
mounting holes into the countertop. Next, place the dispenser in position and install bolts from the underside of the
countertop into the threaded bosses in the frame. Seal the dispenser to the countertop with a bead of clear silicone caulk
around the base of the frame to prevent spills from collecting under the dispenser.
17.00
[ 431.8 ]
14.88
[ 377.8 ]
(4) TAPPED
MOUNTING
HOLES
SIDE PANELS
FRAME
32.5
[ 825.3 ]
20.00
[ 508 ]
1.75
[ 44.5 ]
10.3
[ 261.9 ]
DRIP TRAY
DRAIN
8.56
[ 217.5 ]
DRIP
TRAY
6.80
[ 172.7 ]
DRAIN
C
L
FRONT
1.06
[ 27.0 ]

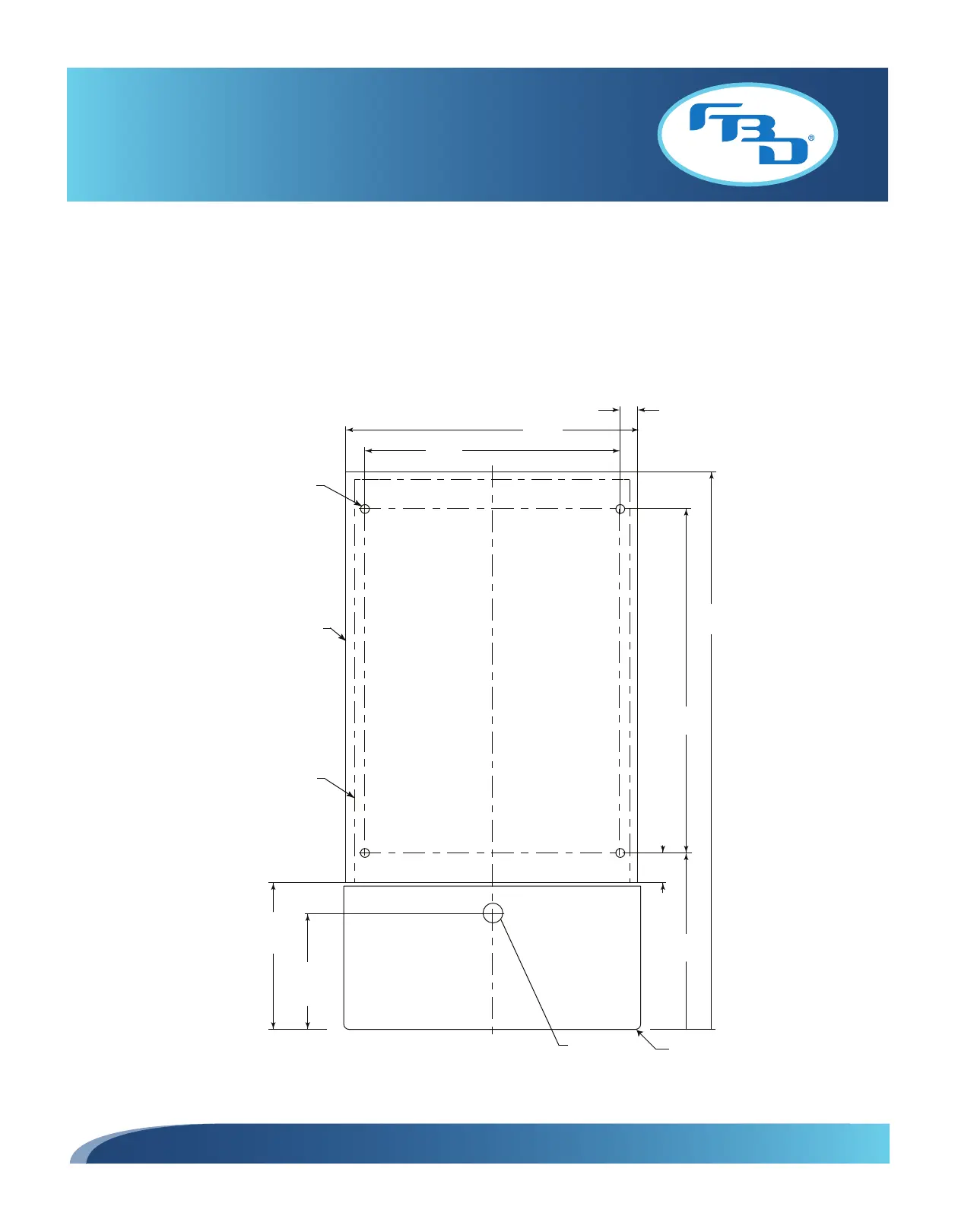

Figure 11.1 Mounting Diagram for 771 and 772 Dispensers
