77X INSTALLATION & OPERATION MANUAL
771/772/773/774 MODELS
61
12-0570-0009
TRANSFORMER
220/24VAC 60 HZ
PLUG*
24 VAC
DIG - GND
L1 L2
FAN - L1
FAN - L2
BTR 1 - L2
Motors
220 V, 60 Hz
Motor:
30-0110-0001
Motor Assy:
12-0291-0003
Compressor
772, 60 Hz
ZB15KCE-PFV
208-230 V
36-2055-0001
773/774, 60 Hz
ZB19KCE-PFV
208-230 V
36-2027-0001
/
SWITCH
OPTION FOR
WATER COOLED
OPTION FOR
AIR COOLED
4 MF
*
PLUG VARIES BY UNIT
TYPE. CONTACT FBD FOR ADDITIONAL PLUG INFORMATION.
D
C
A
B
CONTINUES ON NEXT PAGE
CONTINUES ON NEXT PAGE
NOTE: DIAGRAM
SHOWN FOR 774
OR
GRY
OR
BRN
OR
GRY
OR
GRY
OR
GRY
OR
BRN
OR
BRN
OR
BRN

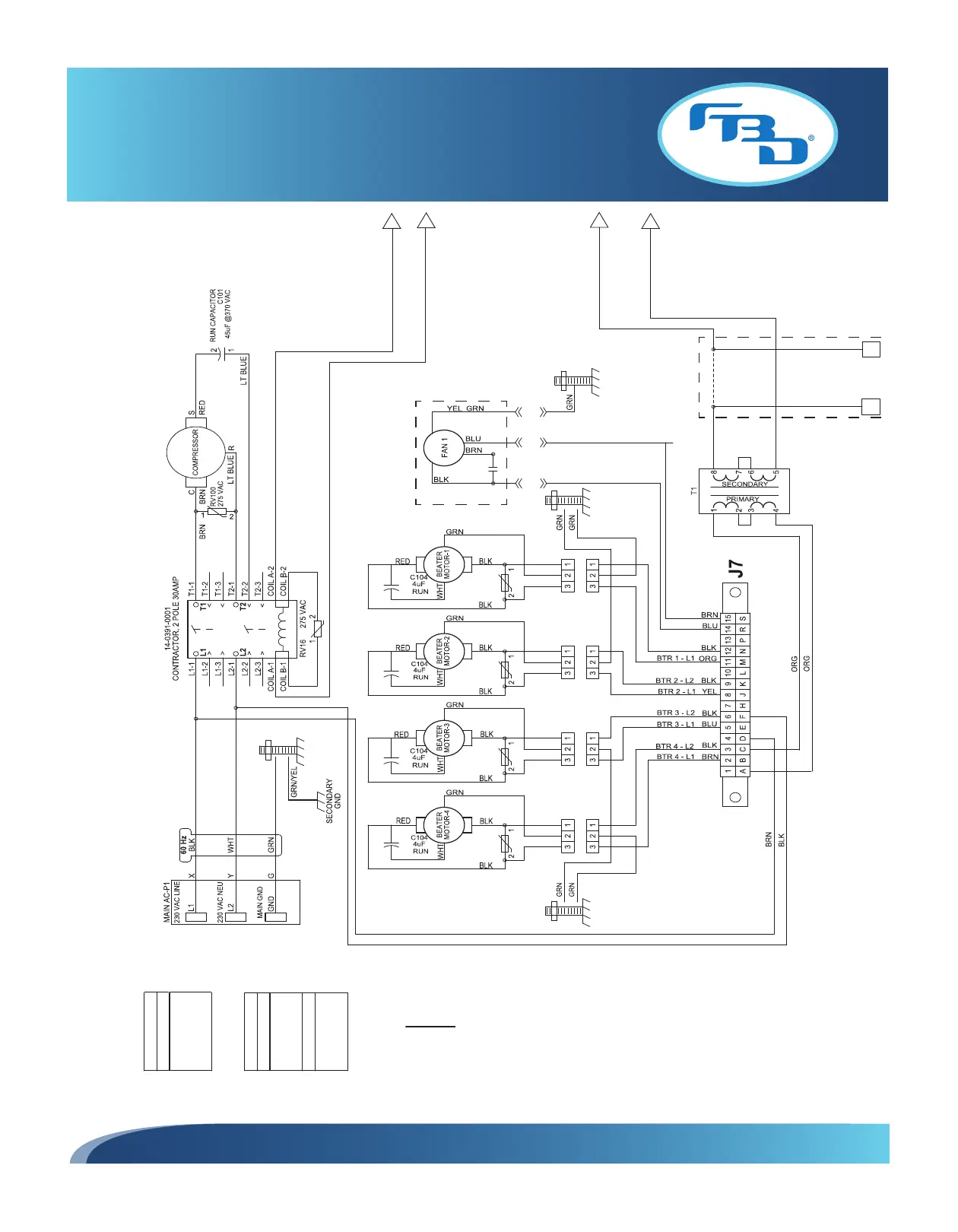

Figure 11.11 Electrical Diagram for Standard 772, 773, and 774 Dispensers
2 OF 3
