ST51 Specifications
Instrument
Media Compatibility:
Biogas, Digester Gas, Methane, Natural Gas,
Air, Compressed Air, Nitrogen
Pipe/Line Size Compatibility:
2
″
to 24
″
[51 mm to 610 mm]
1
Flow Range:
0.3 SFPS to 400 SFPS [0,08 MPS to 122 MPS]
Accuracy: (at ≥ 0.75
SFPS
[≥ 0,21 NMPS]
2
)
Standard: ± 2% reading ± 0.5% full scale
Optional: ± 1% reading ± 0.5% full scale
Repeatability:
± 0.5% reading
Temperature Compensation:
Standard: 40 °F to 100 °F [4 °C to 38 °C];
Optional: 0 °F to 250 °F [-18 °C to 121 °C]
Turndown Ratio:
3:1 to 100:1
Agency Approvals:
FM, CSA/CRN:
Class I, Div. 1, Groups B, C, D; Class I, Div. 2, Groups A-D
ATEX/IECEx: Zone 1, II 2 G Ex d IIC T6...T3, II 2 D Ex tD A21 IP67 T90°C...T300°C
Warranty:
1 year
1
For line sizes 2" or smaller, see FCI ST75 Series
2
Contact FCI for accuracy below 0.75 sfps [0,21 nmps]
Flow Element
Installation:
Insertion, variable length with 1/2 ″ or 3/4 ″ MNPT compression fitting
Type:
Thermal Dispersion
Material of Construction:
316L stainless steel body with Hastelloy-C22
thermowell sensors, 316 stainless steel compression fitting with Teflon or
stainless steel ferrule
Pressure (Maximum Operating without Damage):
Stainless steel ferrule: 500 psig [34 bar (g)]
Teflon ferrule: 150 psig [10 bar (g)]
Operating Temperature:
Stainless steel ferrule: 0 °F to 250 °F [-18 °C to 121 °C]
Teflon ferrule: 0 °F to 200 °F [-18 °C to 93 °C]
Process Connection:
1/2
″
MNPT or 3/4
″
MNPT with stainless steel or
Teflon ferrule.
Insertion Length (Field Adjustable):
1
″
to 6
″
[25 mm to 152 mm]
1
″
to 12
″
[25 mm to 305 mm]
1
″
to 18
″
[25 mm to 457 mm]

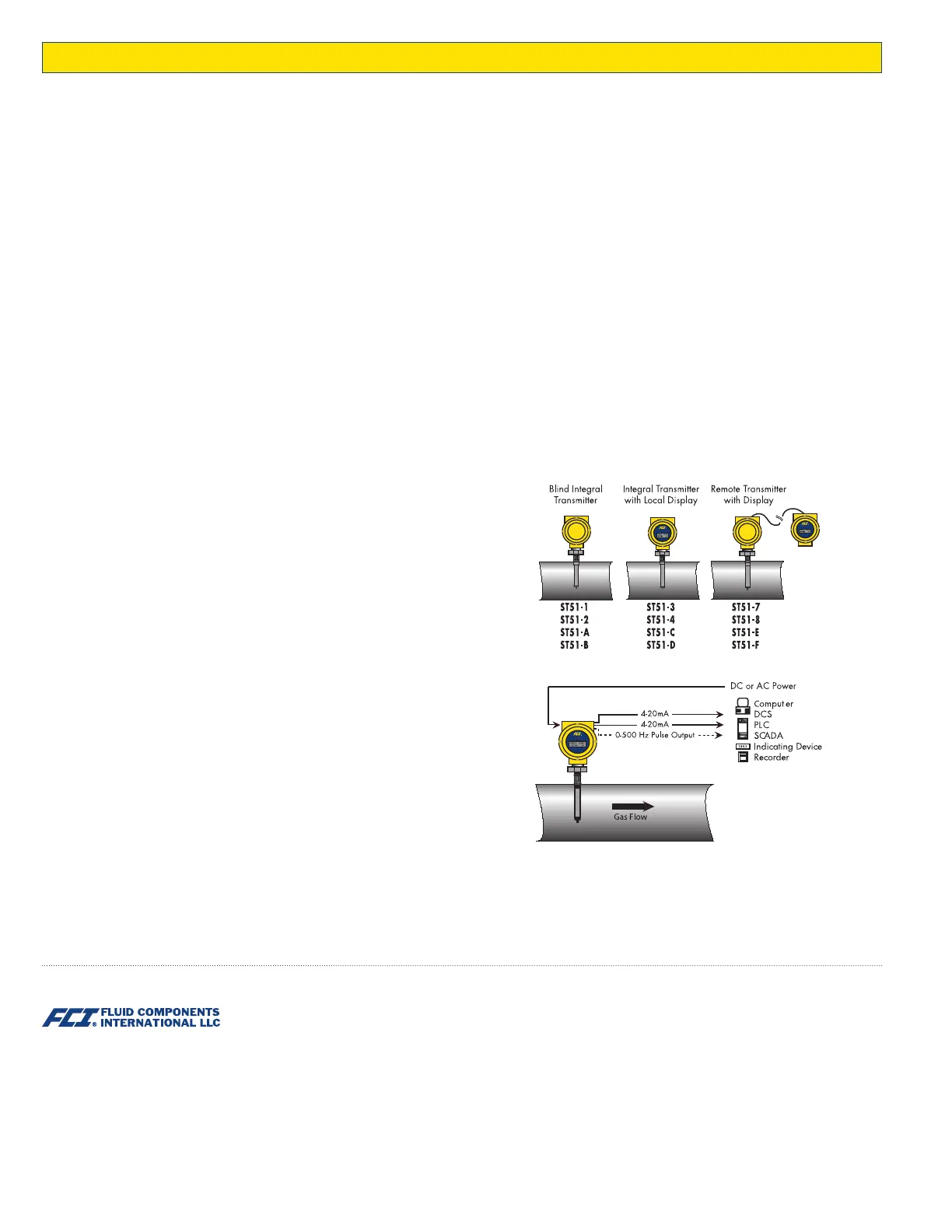

Flow Transmitter
Enclosure:
NEMA 4X [IP67], aluminum, dual conduit ports with either
1/2
″
FNPT or M20x1.5 entries; epoxy coated.
Operating Temperature:
0 °F to 140 °F [-18 °C to 60 °C]
Input Power:
DC: 18 Vdc to 36 Vdc (6 watts max.)
AC:
85 Vac to 265 Vac (12 watts max.; CE Mark Approval from 100 Vac to 240 Vac)
Analog Output Signals:
Dual 4-20 mA, user assignable to flow rate and/or
temperature and a 0-500 Hz pulse output for total flow
Communication Port:
RS-232C. Wireless IR to PDA with optional digital display
models
Digital Display:
Two-line x 16 character LCD; displays measured value and
engineering units; top line assigned to flow rate, second line user assignable to
temperature reading, as flow totalizer or alternating; display can be rotated in 90°
increments for optimum viewing orientation
Installation and Mounting:
Integral with sensor element or remote mountable
up to 50
′
[15 m]
