Installation Procedures Continued
Foundation Specications
A concrete foundation is recommended for
all MSD pump installations. Concrete provides
good support and good vibration absorption.
The foundation should have a mass that is
50% more than the total weight of the equip-
ment and its perimeter should extend at least
6 inches (15 cm) on each side from the pump
and motor. Make sure the concrete is com-
pletely dry and level before installing any ma-
chinery. Make sure anchor bolts and shims are
properly sized and installed in cases of uneven
surfaces.
LEVELING BOLTS
VERTICAL
BASEPLATE
PROPER SHIM PLACEMENT
(Shims are optional with alignment kit. Anchor bolts are not provided)
CONCRETE
FOUNDATION

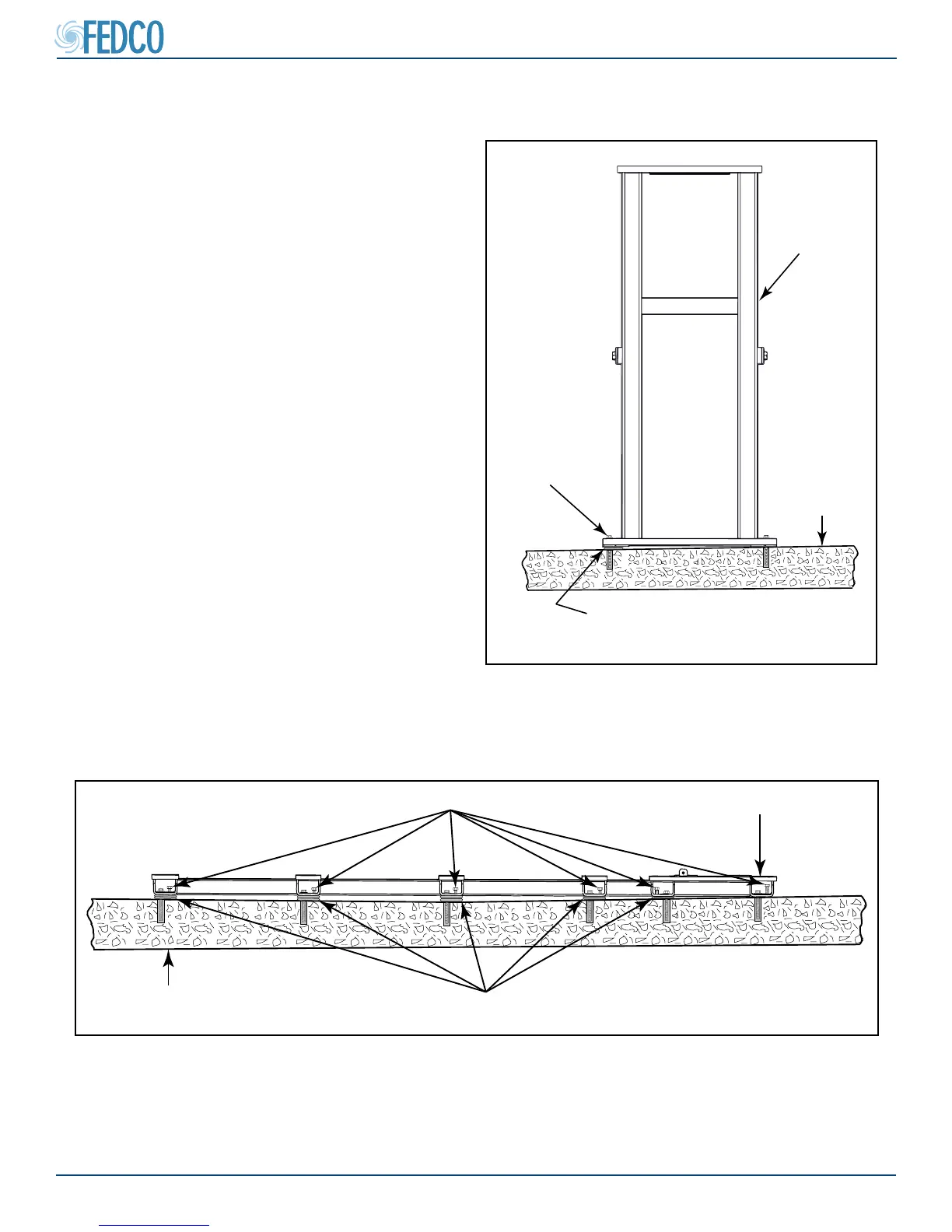

Figure 18 - Proper Shimming Uneven (Vertical)
LEVELING BOLTS
OPTIONAL BASEPLATE
PROPER SHIM PLACEMENT
(Shims are optional with alignment kit. Anchor bolts are not provided)
CONCRETE FOUNDATION
Figure 19 - Proper Shimming Uneven (Horizontal)
